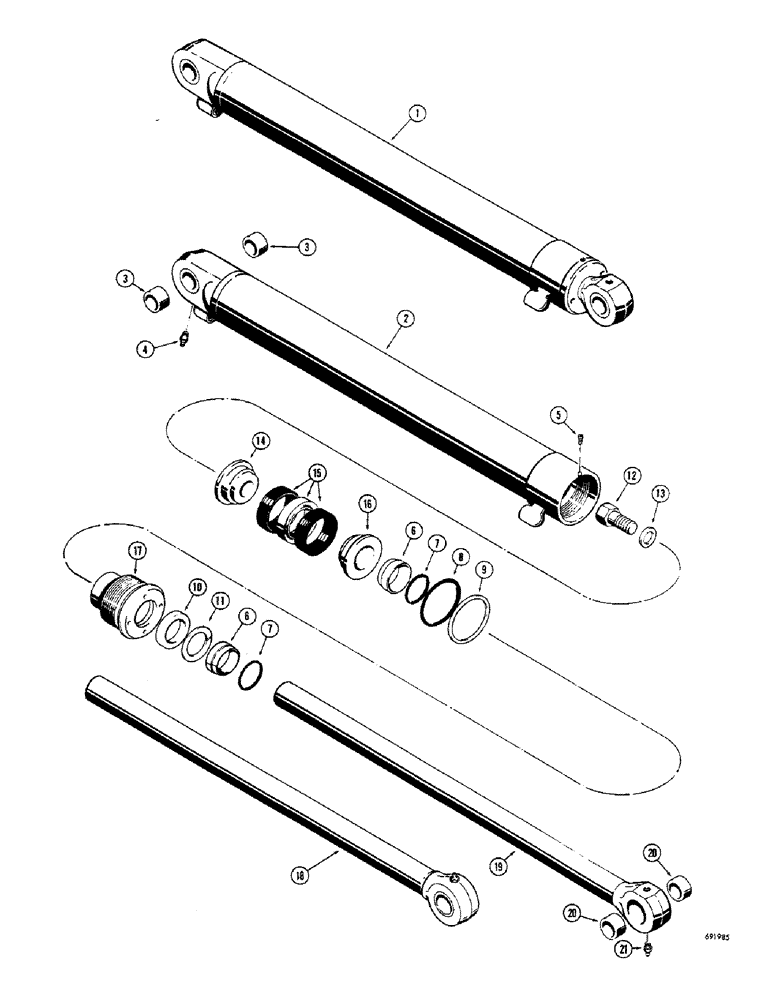

Запчасти Case 680CK (123A) - D43174 AND D43175 LOADER TILT CYLINDERS, USED WITH TILT HYDRAULICS MODIFICATION

1

D43174

CYLINDER ASSY.

CYLINDER - hydraulic, R.H. loader tilt (3-1/2" I.D. x 23-3/4" stroke)

1шт.

1

D43175

CYLINDER ASSY.

CYLINDER - hydraulic, L.H. loader tilt (3-1/2" I.D. x 23-3/4" stroke) not illustrated

1шт.

2

D43169

TUBE - cylinder, R.H.

1шт.

2

D43170

TUBE - cylinder, L.H. (Not illustrated)

1шт.

3

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- cylinder tube

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

D42873

GASKET KIT

KIT - packing, gland type cylinder

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping (#8 - 32 NC x 1/4")

1шт.

6

D27432

SHIM

- rod

2шт.

7

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, wiper (If used)

2шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAl - "O" ring, gland

1шт.

9

D36094

WASHER

RING - backup, gland seal

1шт.

10

D28499

RING

SEAL - rod

1шт.

11

D36970

CUP

RING - backup, rod seal

1шт.

12

D32861

BOLT

- special

1шт.

13

D95032

WASHER

- special

1шт.

14

D28367

PISTON

- split, bolt end

1шт.

15

D36963

PACKING

- piston

1шт.

16

D28369

PISTON

- split, rod end

1шт.

17

D45069

GLAND

- packing

1шт.

18

D43396

ROD - piston (1-3/4" dia.) used with D43174 cylinder only

1шт.

19

D43173

PISTON

ROD - piston (1-3/4" dia.) used with D43175 cylinder only

1шт.

20

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.
