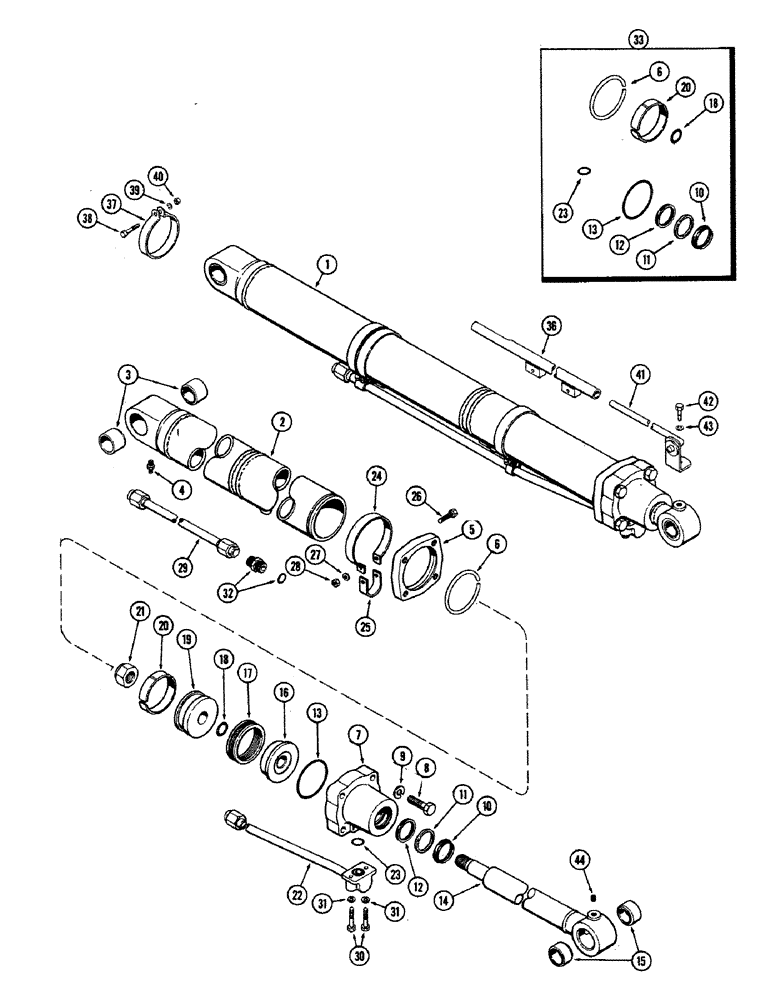

Запчасти Case 680CK (122) - TILT CYLINDER, SIGHT TUBE

1

L11032

CYLINDER ASSY. - tilt, R. H. & L.H.

2шт.

2

L11034

CAP ASSY. - cylinder

1шт.

3

A13386

BUSHING

- end

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" str.)

1шт.

5

A12544

CLAMP

- head to cyl. body

1шт.

6

A12545

RING, SNAP

RING - snap, clamp ret.

1шт.

Part of gland packing kit P/N L30953

1шт.

7

L11033

HEAD - tilt cyl.

1шт.

8

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

- (1/2 x 2-1/4" N. F. hex.)

4шт.

9

92-8

LOCK WASHER,1/2"

4шт.

10

A13892

RING

WIPER - piston rod

1шт.

Part of gland packing kit P/N L30953

1шт.

11

A13901

WASHER

- back up ring (Leather)

1шт.

Part of gland packing kit P/N L30953

1шт.

12

A14246

RING

QUAD RING - head

1шт.

Part of gland packing kit P/N L30953

1шт.

13

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

"O" RING - head (3-1/4 x 3-1/2 x 1/8")

1шт.

Part of gland packing kit P/N L30953

1шт.

14

A13486

ROD ASSY. - piston

1шт.

15

A13387

BUSHING - piston rod

2шт.

16

A17809

PISTON ASSY.

PISTON - cylinder

1шт.

17

A13491

PACKING

- piston ("V" rings)

1шт.

18

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING - piston (1-1/16 x 1-5/16 x 1/8")

1шт.

Part of gland packing kit P/N L30953

1шт.

19

A17890

PLATE - piston follower

1шт.

20

A17811

RING

- wear, piston & plate

1шт.

Part of gland packing kit P/N L30953

1шт.

21

R12336

LOCK NUT

- piston rod

1шт.

22

L11042

TUBE - tilt cyl.

1шт.

23

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - (3/4 x 1 x 1/8")

1шт.

Part of gland packing kit P/N L30953

1шт.

24

A16373

CLAMP - mtg. strap

3шт.

25

A13493

HOSE

HANGER - tube

3шт.

26

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- (5/16 x 1-1/2" N. C. hex)

3шт.

27

92-5

LOCK WASHER,5/16"

3шт.

28

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N. C. hex.)

3шт.

29

L11045

TUBE - tilt cyl.

1шт.

30

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- (3/8 x 1-3/4" N. F. hex.)

2шт.

31

92-6

LOCK WASHER,3/8"

2шт.

32

A14075

X

FITTING - tube, boss connector w/"O" ring

1шт.

33

L30953

GLAND

PACKING KIT, Replaces: L30682, Includes: Ref. 6, 10 - 13, 18, 20 and 23

1шт.

36

L11046

TUBE - sight

1шт.

37

A16373

STRAP - clamp mtg.

2шт.

38

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- (5/16 x 1-1/2" N. C. hex)

2шт.

39

92-5

LOCK WASHER,5/16"

2шт.

40

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N. C. hex.)

2шт.

41

L11049

ROD - sight

1шт.

42

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

43

92-6

LOCK WASHER,3/8"

1шт.

44

178-455

SCREW - ret. (3/8 x 1/2")

1шт.
