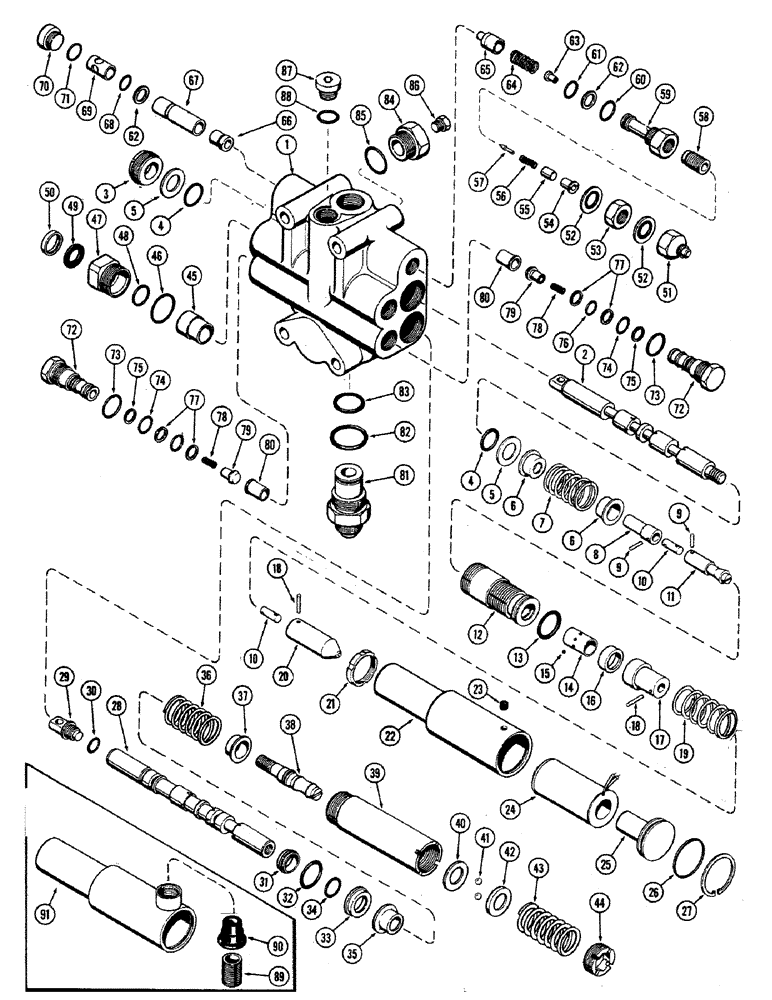

Запчасти Case 680CK (120) - L11777 VALVE, WITH RETURN TO DIG FEATURE

L11777

X

VALVE ASSY. - 2 spool, w/solenoid (Not illust.)

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - hydraulic valve

1шт.

L30640

SPOOL D - blue hyd. valve solenoid (Not illust.)

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - hyd. valve, blue

1шт.

3

L30744

GLAND

RING - retainer & wiper (Light black nylon) (Used w/A14535 washer) (Replaces A14535)

1шт.

Includes overhaul repair kit L30690

1шт.

3

A25281

X

RING - retainer and wiper (Clear nylon) (Order 1-14535)

1шт.

4

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING -, Serial Range: spool-body

2шт.

Includes overhaul repair kit L30690

1шт.

5

A14535

RETAINER

- hyd. valve "O" ring (1 in repair kit)

2шт.

Includes overhaul repair kit L30690

1шт.

6

A14533

BRONZE BUSHING

RETAINER - hyd. valve spring

2шт.

7

A14534

SPRING

- hyd. valve, "D" spool

1шт.

8

L30638

END - hyd. valve spool

1шт.

9

138-2012

PIN,1/8" x 1/2", Coiled

Hyd. valve detent barrel 1/8" x 1/2", Coiled

2шт.

10

D33858

LINK

- hyd. valve

2шт.

11

L30642

CYLINDER

BARREL - hyd. valve detent

1шт.

12

L30643

COVER - hyd. valve

1шт.

13

L30644

O-RING,1.114" ID x 1.254" OD x 0.07"

"O" RING - cover to housing seal

1шт.

Includes overhaul repair kit L30690

1шт.

14

L30645

RETAINER

- hyd. valve ball

1шт.

15

211-5

BALL,3/16" Dia

- hyd. valve detent

6шт.

16

L30647

CAM

- detent, with solenoid release

1шт.

17

L30760

HOLDER

- cam, (See ref. 89) (Replace L30648)

1шт.

18

138-2035

PIN,1/8" x 11/16", Coiled

Hyd. valve plunger connection 1/8" x 11/16", Coiled

2шт.

19

L30646

SPRING

- detent, solenoid release

1шт.

20

L30649

SOLENOID - hyd. valve plunger

1шт.

21

L30650

LOCKNUT - hyd. valve hsg.

1шт.

22

L30757

HOUSING - hyd. valve solenoid (Replaces L30651)

1шт.

23

L30759

GROMMET

- solenoid wire (In housing)

1шт.

24

L30652

COIL

- hyd. valve

1шт.

25

L30653

STOP

- plunger, hyd. valve

1шт.

26

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

"O" RING - solenoid plunger seal

1шт.

27

L30654

RING, SNAP

SNAP RING - plunger stop retaining

1шт.

L30461

SPOOL KIT - lift control ("F" spool)

1шт.

28

NSS

NOT SOLD SEPARAT

SPOOL - hyd. valve

1шт.

29

L30452

EYE - control spool end

1шт.

30

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Includes overhaul repair kit L30690

1шт.

31

D33857

RETAINER

- "O" ring ("B" retainer)

1шт.

32

A16877

SEAL

"O" RING - "B" retainer (13/64 x 1-17/64 x 7/64")

1шт.

Includes overhaul repair kit L30690

1шт.

33

D33856

RETAINER

- "O" ring ("A" retainer)

1шт.

34

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - "A" retainer (47/64 x 15/16 x 5/64")

1шт.

Includes overhaul repair kit L30690

1шт.

35

A16879

SPACER

RETAINER - spring, centering seat, inner (White stripe identification mark)

1шт.

36

A16882

SPRING

- lift valve, inner

1шт.

37

A16881

SEAT

RETAINER - spring centering seat, outer (Red stripe identification mark)

1шт.

38

L30453

STUD

- hyd. valve detent

1шт.

39

L30454

CAP

- hyd. spool detent

1шт.

40

L30455

WASHER

- detent (11/16 x 1-1/4 x 1/8")

1шт.

41

211-8

BALL,9/32" Dia

8шт.

42

L30456

CAM

- detent (Ball race)

1шт.

43

L30626

SPRING

- lift valve, outer

1шт.

44

L30458

PLUG

- lift valve adjusting

1шт.

45

D37076

SLEEVE

- spool float

1шт.

46

D37156

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

"O" RING - sleeve (1-3/64 x 1-3/16 x 1/16")

1шт.

Includes overhaul repair kit L30690

1шт.

47

D37156

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

RETAINER - seal

1шт.

48

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - retainer (47/64 x 15/16 x 5/64")

1шт.

Includes overhaul repair kit L30690

1шт.

49

A14527

SCRAPER

WIPER - spool (45/64 x 63/64 x 5/64" rubber)

1шт.

Includes overhaul repair kit L30690

1шт.

50

D37153

RETAINER

- wiper

1шт.

Includes overhaul repair kit L30690

1шт.

L11777

X

VALVE ASSY. - 2 spool, with solenoid (Continued from page 120)

1шт.

51

D27260

FITTING

- relief valve pilot

1шт.

52

D27259

SEAL

- relief valve, w/"O" ring

2шт.

54

L30738

RETAINER - hyd. valve piston

1шт.

55

D27261

PISTON

- relief valve

1шт.

56

D26268

SPRING

- relief valve

1шт.

57

D26267

PLUNGER

- relief valve pilot

1шт.

58

D27258

ADJUSTMENT SCREW,5/8" - 18 x 1 1/16"

- adjusting relief valve

1шт.

59

D37045

CAP

- relief valve

1шт.

60

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - relief valve cap (41/64 x 13/16 x 3/32")

1шт.

61

L30444

O-RING,0.521" ID x 0.661" OD

"O" RING - hyd. valve cap (33/64 x 21/32 x 1/16")

1шт.

62

L30443

BACK-UP RING,0.547" ID x 0.049" Width

- "O" back-up

2шт.

63

D26266

SEAT

- relief valve pilot

1шт.

64

D52319

SPRING

- relief valve

1шт.

65

D37062

VALVE

POPPET ASSY. - hydraulic valve, w/screen

1шт.

66

D37063

SEAT

- relief valve

1шт.

67

D37064

SLEEVE

- relief valve seat

1шт.

68

L30444

O-RING,0.521" ID x 0.661" OD

"O" RING - sleeve (33/64 x 21/32 x 1/16")

1шт.

69

D37065

SLEEVE

- relief valve drain

1шт.

70

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Assy, Relief valve Hex Soc, 3/4"-16 ORB

1шт.

71

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - plug (41/64 x 13/16 x 3/32")

1шт.

72

D37066

CAP

- load check valve

4шт.

73

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - check valve (3/4 x 61/64 x 3/32")

4шт.

Includes seal assembly kit L30689

1шт.

74

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

"O" RING - check valve (9/16 x 45/64 x 1/16")

4шт.

Includes seal assembly kit L30689

1шт.

75

D37071

RING

- "O" ring back-up

4шт.

Includes seal assembly kit L30689

1шт.

76

D37149

O-RING,104 mm ID

"O" RING - check valve (31/64 x 5/8 x 1/16")

4шт.

Includes seal assembly kit L30689

1шт.

77

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

- load check back up

8шт.

Includes seal assembly kit L30689

1шт.

78

D37067

SPRING

- load, check valve

4шт.

79

D37068

VALVE POPPET

POPPET - load check valve

4шт.

80

D37069

SLEEVE

- check valve seat

4шт.

81

L30446

FITTING

ASSY. - hi-pressure carry-over

1шт.

82

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - (1-11/64 x 1-13/32 x 1/8")

1шт.

83

L32680

RING

"O" RING - (59/64 x 1-1/8 x 1/16")

1шт.

84

D38825

ADAPTER

ASSY. - hydraulic valve

1шт.

85

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (59/64 x 1-5/32 x 1/8")

1шт.

86

221-1652

PLUG

- body

1шт.

87

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Assy, Body Hex Soc, 3/4"-16 ORB

1шт.

88

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - plug (41/64 x 13/16 x 3/32")

1шт.

89

L30651

X

HOUSING - hyd. valve solenoid (See ref. 22) (Order 1-L30757 housing & 1-L30759 grommet)

1шт.

90

221-185

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE - (1/2" pipe) (Used w/L30651 housing)

1шт.

91

A21820

X

NIPPLE - ignition (Rubber) (Used w/L30651 housing)

1шт.

L30689

SEAL ASSY.

KIT - load chack valve seal (Not illust.) (Includes items 73, 74, 75, 76, 77)

1шт.

L30690

KIT

- repair overhaul (Not illust.) (Includes 3, 4, 5, 13, 26, 32, 34, 46, 48, 49, and 50)

1шт.
