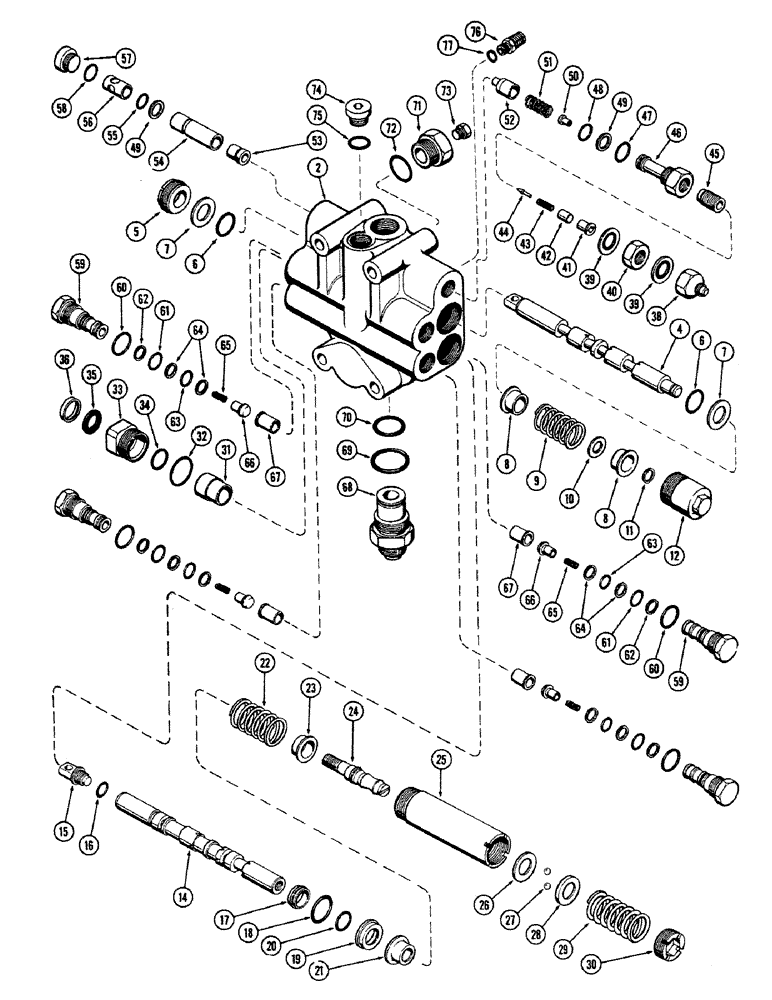

Запчасти Case 680CK (118) - L12099 VALVE
№
Артикул
Название
Примечание
Количество
L12099
X
VALVE ASSY. - 2 spool, manual control
1шт.
2
NSS
NOT SOLD SEPARAT
BODY - hyd. valve
1шт.
D37051
SPOOL
ASSY. - tilt control (Blue spool)
1шт.
4
NSS
NOT SOLD SEPARAT
SPOOL
1шт.
5
L30744
GLAND
RING - retainer & wiper (Light black nylon) (Used w/A14535 washer)
1шт.
Part of Overhaul Repair Kit P/N L30690, not illustrated
1шт.
5
A14535
RETAINER
RING - retainer and wiper (Clear nylon) (Order 1-L30744 & 1-A14535)
1шт.
6
R17547
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
"O" RING - (47/64 x 15/16 x 1/16")
2шт.
Part of Overhaul Repair Kit P/N L30690, not illustrated
1шт.
7
A14535
RETAINER
- "O" ring (1 in repair kit)
2шт.
Part of Overhaul Repair Kit P/N L30690, not illustrated
1шт.
8
A14533
BRONZE BUSHING
RETAINER - spring centering seat
2шт.
9
A14534
SPRING
- tilt valve
1шт.
10
A25286
WASHER
- tilt valve spool spring
1шт.
11
A27020
RING
- snap, spring seat ret.
1шт.
12
A14529
CAP
- tilt spool end
1шт.
L30461
SPOOL KIT - lift control ("F" spool)
1шт.
14
NSS
NOT SOLD SEPARAT
SPOOL
1шт.
15
L30452
EYE - control spool end
1шт.
16
218-5005
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
Part of Overhaul Repair Kit P/N L30690, not illustrated
1шт.
17
D33857
RETAINER
- "O" ring ("B" retainer)
1шт.
18
A16877
SEAL
"O" RING - "B" retainer (13/64 x 1-17/64 x 7/64")
1шт.
Part of Overhaul Repair Kit P/N L30690, not illustrated
1шт.
19
D33856
RETAINER
- "O" ring ("A" retainer)
1шт.
20
R17547
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
"O" RING - "A" retainer (47/64 x 15/16 x 5/64")
1шт.
Part of Overhaul Repair Kit P/N L30690, not illustrated
1шт.
21
A16879
SPACER
RETAINER - spring, centering seat, inner (White stripe identification mark)
1шт.
22
A16882
SPRING
- lift valve, inner
1шт.
23
A16881
SEAT
RETAINER - spring centering seat, outer (Red stripe identification mark)
1шт.
24
L30453
STUD
- hyd. valve detent
1шт.
25
L30454
CAP
- hyd. spool detent
1шт.
26
L30455
WASHER
- detent (11/16 x 1-1/4 x 1/8")
1шт.
27
211-8
BALL,9/32" Dia
8шт.
28
L30456
CAM
- detent (Ball race)
1шт.
29
L30626
SPRING
- lift valve, outer
1шт.
30
L30458
PLUG
- lift valve adjusting
1шт.
31
D37076
SLEEVE
- spool float
1шт.
32
D37156
O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro
"O" RING - sleeve (1-3/64 x 1-3/16 x 1/16")
1шт.
Part of Overhaul Repair Kit P/N L30690, not illustrated
1шт.
33
D37152
RETAINER
- seal
1шт.
34
R17547
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
"O" RING - retainer (47/64 x 15/16 x 5/64")
1шт.
Part of Overhaul Repair Kit P/N L30690, not illustrated
1шт.
35
A14527
SCRAPER
WIPER - spool (45/64 x 63/64 x 5/64" rubber)
1шт.
Part of Overhaul Repair Kit P/N L30690, not illustrated
1шт.
36
D37153
RETAINER
- wiper
1шт.
Part of Overhaul Repair Kit P/N L30690, not illustrated
1шт.
L12099
X
VALVE ASSY. - 2 spool, manual control
1шт.
38
D27260
FITTING
- relief valve pilot
1шт.
39
D27259
SEAL
- relief valve, w/"O" ring
2шт.
Part of Overhaul Repair Kit P/N L30690, not illustrated
1шт.
40
86637932
JAM NUT,Jam, 5/8"-18, G5
NUT - hyd. valve
1шт.
41
L30738
RETAINER - relief valve piston
1шт.
42
D27261
PISTON
- relief valve
1шт.
43
D26268
SPRING
- relief valve
1шт.
44
D26267
PLUNGER
- relief valve pilot
1шт.
45
D27258
ADJUSTMENT SCREW,5/8" - 18 x 1 1/16"
- adjusting relief valve
1шт.
46
D37045
CAP
- relief valve
1шт.
48
D30444
ELBOW UNION
"O" RING - hyd. valve cap (33/64 x 21/32 x 1/16")
1шт.
Part of Overhaul Repair Kit P/N L30690, not illustrated
1шт.
49
L30443
BACK-UP RING,0.547" ID x 0.049" Width
- "O" ring back-up
2шт.
Part of Overhaul Repair Kit P/N L30690, not illustrated
1шт.
50
D26266
SEAT
- relief valve pilot
1шт.
51
D52319
SPRING
- relief valve (Replaces D26261)
1шт.
52
D37062
VALVE
POPPET ASSY. - hyd. valve, w/screen
1шт.
53
D37063
SEAT
- relief valve
1шт.
54
D37064
SLEEVE
- relief valve seat
1шт.
55
D30444
ELBOW UNION
"O" RING - sleeve (33/64 x 21/32 x 1/16")
1шт.
Part of Overhaul Repair Kit P/N L30690, not illustrated
1шт.
56
D37065
SLEEVE
- relief valve drain
1шт.
57
71100209
PLUG,Hex Soc, 3/4"-16 ORB
Assy, Relief valve Hex Soc, 3/4"-16 ORB
1шт.
59
D37066
CAP
- load check valve
4шт.
60
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
"O" RING - check valve (3/4 x 61/64 x 3/32")
4шт.
Part of Load Check Valve Seal Kit P/N L30689, not illustrated
1шт.
61
D26265
O-RING,1.78mm Thk x 14mm ID, 70 Duro
"O" RING - check valve (9/16 x 45/64 x 1/16")
4шт.
Part of Load Check Valve Seal Kit P/N L30689, not illustrated
1шт.
62
D37071
RING
- "O" ring back-up
4шт.
Part of Load Check Valve Seal Kit P/N L30689, not illustrated
1шт.
63
D37149
O-RING,104 mm ID
"O" RING - check valve (31/64 x 5/8 x 1/16")
4шт.
Part of Load Check Valve Seal Kit P/N L30689, not illustrated
1шт.
64
D37070
SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk
- load check back up
8шт.
Part of Load Check Valve Seal Kit P/N L30689, not illustrated
1шт.
65
D37067
SPRING
- load, check valve
4шт.
66
D37068
VALVE POPPET
POPPET - load check valve
4шт.
67
D37069
SLEEVE
- check valve seat
4шт.
68
L30446
FITTING
ASSY. - hi-pressure carry-over
1шт.
69
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
"O" RING - (1-11/64 x 1-13/32 x 1/8")
1шт.
Part of Overhaul Repair Kit P/N L30690, not illustrated
1шт.
70
L32680
RING
"O" RING - (59/64 x 1-1/8 x 1/8")(Replaces A25590)
1шт.
Part of Overhaul Repair Kit P/N L30690, not illustrated
1шт.
71
D38825
ADAPTER
ASSY. - hyd. valve
1шт.
72
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
"O" RING - (59/64 x 1-5/32 x 1/8")
1шт.
Part of Overhaul Repair Kit P/N L30690, not illustrated
1шт.
73
L30683
X
PLUG - adapter
1шт.
74
71100209
PLUG,Hex Soc, 3/4"-16 ORB
Assy, Body Hex Soc, 3/4"-16 ORB
1шт.
76
L12087
FITTING - (7/16"- 20 & 1/4"- 18)
1шт.
77
218-5003
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
"O" RING - fitting (11/32 x 1/2 x 1/16")
1шт.
L30689
SEAL ASSY.
KIT - load check valve seal (Not illust.) Includes: Ref. 60, 61, 62, 63 and 64
1шт.
L30690
KIT
- repair overhaul (Not illust.) Includes: Ref. 5 -L30744, 6, 7, 16, 18, 20, 32 and 34-36, 47-49, 55, 58, 69, 70, 72 and 75
1шт.
47
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
"O" RING - relief valve cap (41/64 x 13/16 3/32")
1шт.
Part of Overhaul Repair Kit P/N L30690, not illustrated
1шт.
58
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
"O" RING - plug (41/64 x 13/16 x 3/32")
1шт.
Part of Overhaul Repair Kit P/N L30690, not illustrated
1шт.
75
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
"O" RING - plug (41/64 x 13/16 x 3/32")
1шт.
Part of Overhaul Repair Kit P/N L30690, not illustrated
1шт.
Выбрано товаров: 105
