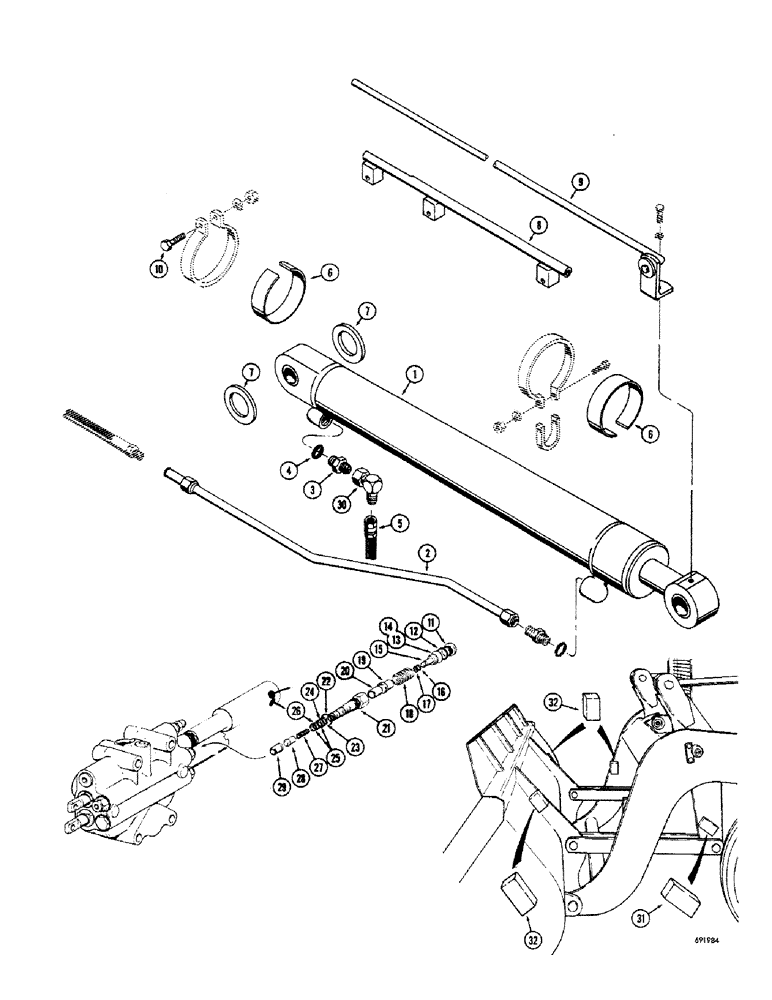

Запчасти Case 680CK (117A) - LOADER TILT HYDRAULIC MODIFICATION

1

D43175

CYLINDER ASSY.

CYLINDER - hydraulic, L.H. loader tilt (Parts list figure 123A)

1шт.

1

D43174

CYLINDER ASSY.

CYLINDER - hydraulic, R.H. loader tilt (Parts list figure 123A)

1шт.

2

L15142

TUBE - tilt cylinder, front port

2шт.

3

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight

2шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

5

D21955

HOSE - tilt cylinder rear port

2шт.

6

L15143

SPACER - cylinder

7шт.

7

F62105

WASHER,38.89mm ID x 69.85mm OD x 6.35mm Thk

- spacer

4шт.

8

L15145

TUBE - sight gauge

1шт.

9

L15144

ROD - sight gauge

1шт.

10

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC 1-3/4"

3шт.

L15141

VALVE

ASSEMBLY - overload relief

2шт.

11

D40354

PLUG

- secondary relief

1шт.

13

D40355

SHIM,.005" Thk

Spring guide .005" Thk

1шт.

14

16917

SHIM

- spring guide, .0105"

1шт.

15

D37073

GUIDE

- spring

1шт.

16

D40357

RING

- back-up, spring guide

1шт.

17

D40356

O-RING

SEAL - "O" ring, spring guide

1шт.

18

D37148

SPRING

- plunger

1шт.

19

D37074

PLUNGER

- relief valve

1шт.

20

D37075

SEAT

- plunger

1шт.

21

D37072

CAP

BODY - secondary relief valve

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Valve body (Large)

1шт.

23

D37071

RING

- backup, center "O" ring

1шт.

24

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

SEAL - "O" ring, relief body (Center)

1шт.

25

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

- backup, small "O" ring

2шт.

26

D37149

O-RING,104 mm ID

SEAL - "O" ring, relief body (Small)

1шт.

27

D37067

SPRING

- poppet

1шт.

28

D37068

VALVE POPPET

POPPET - check valve

1шт.

29

D37069

SLEEVE

SEAT - poppet

1шт.

30

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

Adjustable 90º, 7/8"-14, 37º x 7/8"-14, 37º Fem Sw

2шт.

31

L23837

BLOCK - stop

2шт.

32

L12336

BLOCK - stop

4шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring, plug

1шт.
