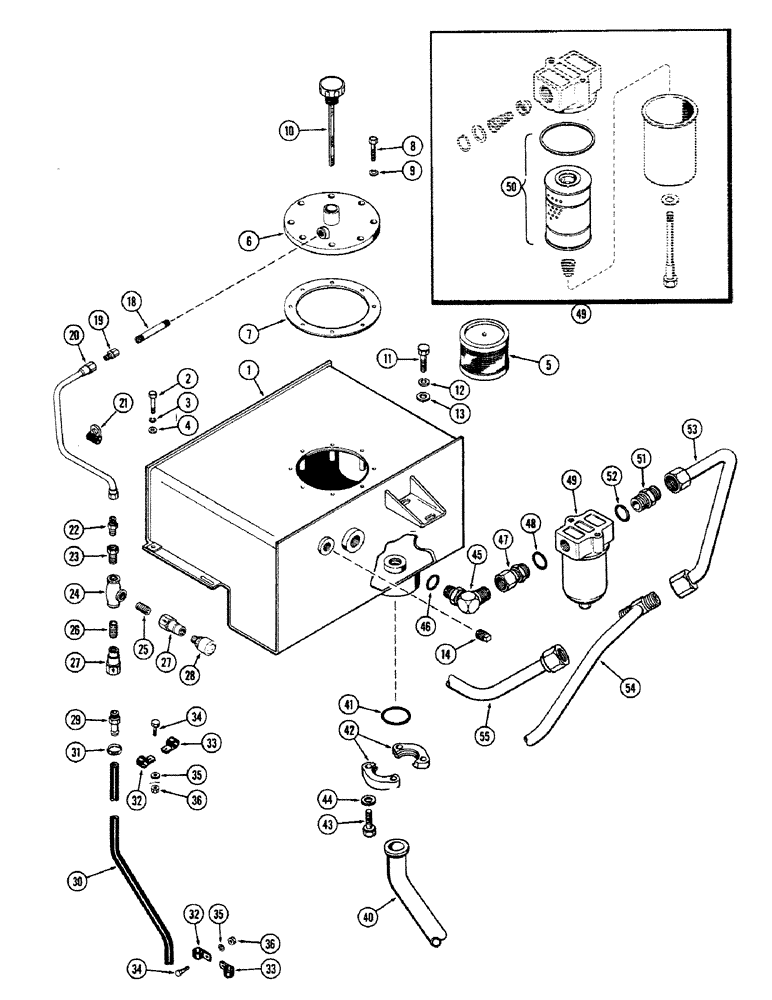

Запчасти Case 680CK (116) - HYDRAULIC RESERVOIR CIRCUIT

1

L10852

TANK - reservoir, hydraulic oil

1шт.

2

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

95-6

WASHER,3/8"

- (7/16 x 1 x 5/64")

4шт.

5

L15252

FILTER - outlet, reservoir

1шт.

6

L13471

COVER - hydraulic tank

1шт.

7

A17427

GASKET

- tank cover

1шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

9

92-6

LOCK WASHER,3/8"

8шт.

10

L10868

GAUGE - oil, hydraulic tank (Dip-stick)

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

195-25

WASHER,3/8"

- (13/32 x 13/16 x 5/64")

2шт.

14

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - tank (3/4" P.T.)

1шт.

18

221-113

NIPPLE - breather cover elbow (1/8" P.T. x 4")

1шт.

19

218-462

ADAPTER - (1/8" P.T. to 1/2" P.T.)

1шт.

20

L13483

TUBE - breather

1шт.

21

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- tube (For 5/16" O.D. tube)

1шт.

22

218-442

HYD CONNECTOR,1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - tube to reducer

1шт.

23

221-54

BUSHING

- reducing, Serial Range: (1/8"-1/2")

1шт.

24

221-441

TEE,1/2" NPT x 3/4 NPT Br

- junction (1/2" x 1/2" x 3/4" P.T.)

1шт.

25

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - (3/4" P.T. x 1-3/8")

1шт.

26

221-185

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE - (1/2" P.T. x 1-1/8")

1шт.

27

A18513

LOCK VALVE

VALVE - check

2шт.

28

L10863

FILTER - breather

1шт.

29

L13479

NIPPLE - hose

1шт.

30

L13484

HOSE - breather (1/2" I.D. x 37")

1шт.

31

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose (9/16" to 1-1/16")

1шт.

32

49855

CLAMP

- hose (For 3/4" tube)

3шт.

33

49789

CLAMP

- hose (For 1/2" tube)

1шт.

34

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Clamp Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

35

92-5

LOCK WASHER,5/16"

2шт.

36

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

2шт.

40

L11317

TUBE - hydraulic, Serial Range: tank-pump

1шт.

41

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

"O" RING - tube (1-7/8" I.D. x 2-1/8" O.D.)

1шт.

42

A14157

FLANGE

CLAMP - tube (Split flange) (Replaces L11263)

2шт.

43

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

44

92-8

LOCK WASHER,1/2"

4шт.

45

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Assy, tank to filter 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

46

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - (1-11/64 x 1-13/32 x 1/8")

1шт.

47

L11300

FITTING -, Serial Range: elbow-filter

1шт.

48

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - (1-11/64 x 1-13/32 x 1/8")

1шт.

49

F87248

FILTER

ASSY. - hydraulic oil

1шт.

50

F88379

ELEMENT

KIT - filter

1шт.

51

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR, HYD., , Assy 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

52

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - (1-11/64 x 1-13/32 x 1/8")

1шт.

53

L11321

TUBE - filter to junction tube

1шт.

54

L11476

TUBE - junction (See item 53, figure 114)

1шт.

55

L11284

TUBE - return, backhoe (See item 23, figure 114) 1" OD x 57.06, 8.53" L

1шт.
