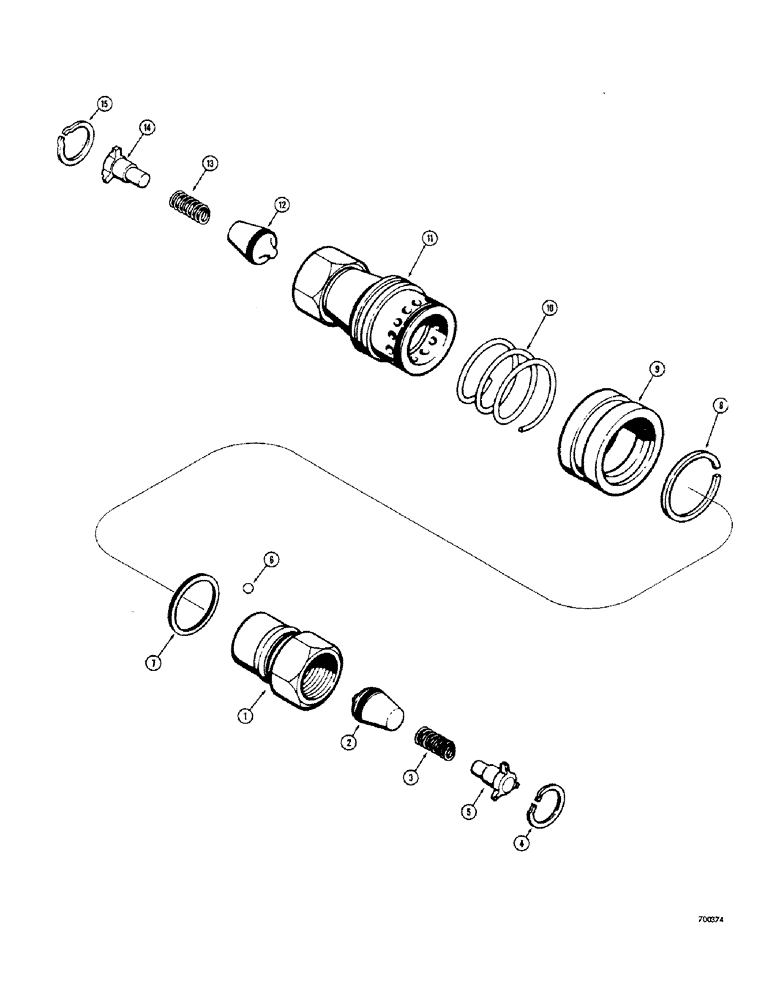

Запчасти Case 680CK (115C) - QUICK DISCONNECT COUPLINGS, L10904 MALE COUPLING, L10905

L10904

COUPLING

ASSEMBLY - male, backhoe

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - coupling

1шт.

2

L30619

VALVE - coupling

1шт.

3

L30618

SPRING - coupling valve

1шт.

4

L30617

LOCK RING - coupling valve

1шт.

5

L30616

GUIDE

- coupling valve

1шт.

L10905

COUPLING

ASSEMBLY - female, backhoe

1шт.

6

L30157

BALL - coupling lock ring

12шт.

7

L30620

X

SEAL - "O" ring, coupling

1шт.

8

L30621

RING

LOCK RING - coupling

1шт.

9

L30623

SLEEVE - coupling

1шт.

10

L30622

SPRING - coupling sleeve

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - coupling socket

1шт.

12

L30619

VALVE - coupling

1шт.

13

L30618

SPRING - coupling valve

1шт.

14

L30616

GUIDE

- coupling

1шт.

15

L30617

LOCK RING - coupling valve

1шт.
