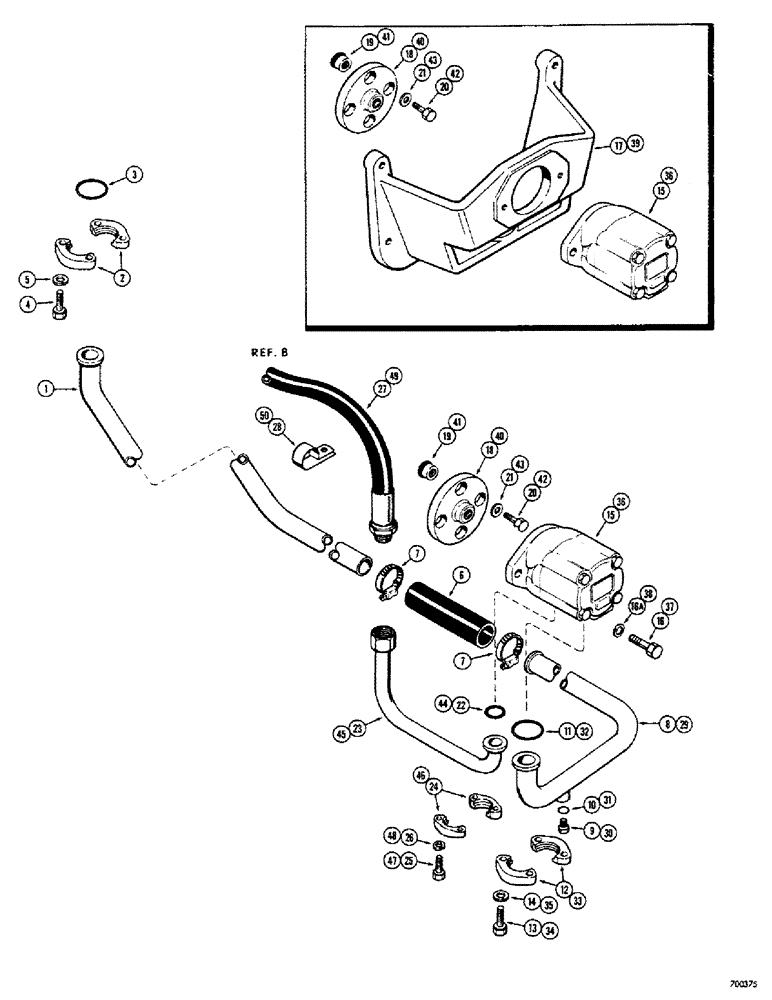

Запчасти Case 680CK (115A) - LOADER HYDRAULICS, PUMP SUCTION AND PRESSURE LINE, VANE TYPE

1

L11317

TUBE - suction, hydraulic, Serial Range: tank-pump

1шт.

2

A14157

FLANGE

- split, tube (1-1/2")

2шт.

3

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, flange

1шт.

4

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

5

92-8

LOCK WASHER,1/2"

4шт.

6

A12303

INTAKE AIR HOSE,1.50" ID

x 7.50", SAE 20R1 - Pump suction 1.50" ID

1шт.

7

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

8

L11318

TUBE - tank to pump, at pump 9.44" L

1шт.

9

129998

PLUG,1/2" - 20 ORB

Drain Hex Hd, 1/2"-20 ORB

1шт.

11

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, flange

1шт.

12

A14157

FLANGE

- split, tube (1-1/2")

2шт.

13

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

14

92-8

LOCK WASHER,1/2"

4шт.

15

L11273

PUMP - hydraulic, equipment (Vane type) figure 112

1шт.

16

L11275

X

BOLT - pump mounting

2шт.

16a

92-8

LOCK WASHER,1/2"

2шт.

17

L10793

BRACKET

- pump and engine mounting

1шт.

L11262

COUPLING - pump to crankshaft pulley

1шт.

18

NSS

NOT SOLD SEPARAT

HUB - splined

1шт.

19

G36905

BLOCK

BUSHING - hub

4шт.

20

L11274

LOCK BOLT

BOLT - coupling mounting, special

4шт.

21

195-29

WASHER,7/16"

- plain () 7/16"

4шт.

22

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

SEAL - "O" ring, tube to pump

1шт.

23

L11316

TUBE - pump to valve 1" OD x 6.5, 11.75" L

1шт.

24

A12306

FLANGE

- split, tube (1")

2шт.

25

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

26

92-6

LOCK WASHER,3/8"

4шт.

27

L11315

HOSE

- pump to valve (39" long)

1шт.

28

R13931

CLAMP

- hose

1шт.

29

L15051

TUBE ASSY.

TUBE - tank to pump, at pump

1шт.

30

129998

PLUG,1/2" - 20 ORB

Drain Hex Hd, 1/2"-20 ORB

1шт.

32

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, flange

1шт.

33

A14157

FLANGE

- spit, tube (1-1/2")

2шт.

34

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(Replaces 13-820) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

35

92-8

LOCK WASHER,1/2"

4шт.

36

L15047

PUMP, HYDRAULIC

PUMP - hydraulic, equipment (Gear type) figure 113A

1шт.

37

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

38

92-8

LOCK WASHER,1/2"

2шт.

39

L10793

BRACKET

- pump and engine mounting

1шт.

L15046

COUPLING

- pump to crankshaft pulley

1шт.

40

NSS

NOT SOLD SEPARAT

HUB - splined

1шт.

41

G36905

BLOCK

BUSHING - hub

4шт.

42

L11274

LOCK BOLT

BOLT - coupling mounting, special

4шт.

43

195-29

WASHER,7/16"

- plain () 7/16"

4шт.

44

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - "O" ring, tube to pump

1шт.

45

L15048

TUBE

-, Serial Range: pump-valve

1шт.

46

A12301

CLAMP,Half

- split, tube (1-1/4")

2шт.

47

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

48

92-7

LOCK WASHER,7/16"

4шт.

49

L11315

HOSE

- pump to valve (39" long)

1шт.

50

R13931

CLAMP

- hose

1шт.

10

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, seal

1шт.

31

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, seal

1шт.
