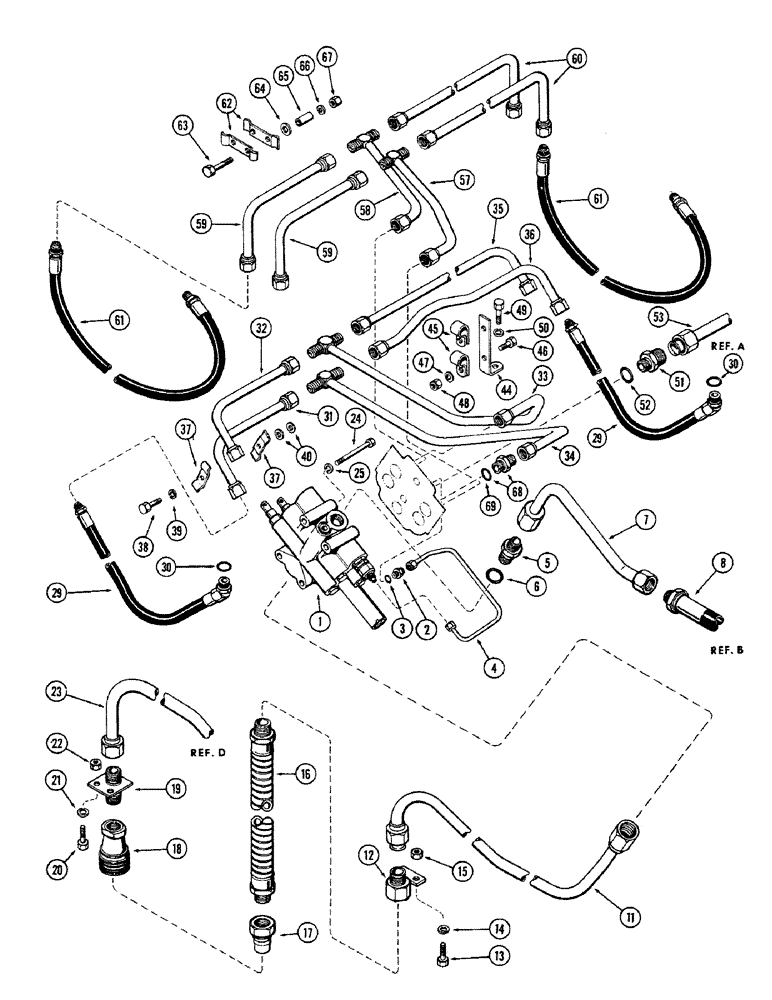

Запчасти Case 680CK (114) - HYDRAULIC CIRCUIT

1

L12099

X

VALVE ASSY. - hyd. control (Repairs, P. 118)

1шт.

2

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER ASSY. - w/"O" ring

1шт.

3

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

"O" RING - (23/64 x 1/2 x 1/16")

1шт.

4

L11292

TUBE,0.5" OD

- hyd., high press. carry-over

1шт.

5

L12050

CONNECTOR, ELEC

FITTING - adapter, Serial Range: valve-tube

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (59/64 x 1-5/32 x 1/8")

1шт.

7

L11472

TUBE,1" OD x 12.44, 6.06" L

- control valve to pump hose

1шт.

8

L11315

HOSE

- control valve to pump (See item 23 figure 115A)

1шт.

11

L11473

TUBE - supply, backhoe 1" OD

1шт.

12

L11295

ADAPTER - hose, backhoe

1шт.

13

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- (5/16 x 1-1/4" N. C. hex.)

2шт.

14

92-5

LOCK WASHER,5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N. C. hex.)

2шт.

16

L11271

HOSE - pressure, backhoe

1шт.

17

L10904

COUPLING

- male, shut-off (See figure 115C)

1шт.

18

L10905

COUPLING

- female, shut-off (See figure 115C)

1шт.

19

L11293

CONNECTOR - hyd. hose, backhoe

1шт.

20

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- (5/16 x 1-1/4" N. C. hex.)

2шт.

21

92-5

LOCK WASHER,5/16"

2шт.

22

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

2шт.

23

L11284

TUBE - return, backhoe (See item 50 figure 116) 1" OD x 57.06, 8.53" L

1шт.

24

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- (3/8 x 3-3/4" N. C. hex.)

3шт.

25

92-6

LOCK WASHER,3/8"

3шт.

29

L11313

HOSE ASSY. - hyd. lift cyl.

4шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (3/4 x 61/64 x 3/32")

4шт.

31

L11277

TUBE - hyd. lift cyl., lower, R .H. 0.625" OD x 100.3, 4" L

1шт.

32

L11468

TUBE - hyd. lift cyl, upper, R. H.

1шт.

33

L11474

TUBE - supply, hyd. lift cyl. 0.75" OD

1шт.

34

L11475

TUBE - return, hyd., lift cyl.

1шт.

35

L11469

TUBE - hyd. lift cyl., upper, L. H.

1шт.

36

L11470

TUBE - hyd. lift cyl., lower, L. H.

1шт.

37

L11322

CLAMP - hyd. tube

4шт.

38

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

39

92-5

LOCK WASHER,5/16"

2шт.

40

195-21

WASHER,5/16"

- (11/32 x 11/16 x 1/16")

1шт.

44

L11298

BRACKET - mtg., tube clip

1шт.

45

49855

CLAMP

CLIP - tube, hyd. lift cyl, supply & return

2шт.

46

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

47

92-5

LOCK WASHER,5/16"

2шт.

48

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N. C. hex.)

2шт.

49

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

50

92-6

LOCK WASHER,3/8"

1шт.

51

L12050

CONNECTOR, ELEC

FITTING - adapter, Serial Range: valve-tube

1шт.

52

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (59/64 x 1-5/32 x 1/8")

1шт.

53

L11476

TUBE - valve to tank (See item 49 figure 116)

1шт.

57

L11467

TUBE - return, hyd. tilt cyl.

1шт.

58

L11471

TUBE - supply, hyd. tilt cyl.

1шт.

59

L11278

TUBE - hyd. tilt cyl., R. H.

2шт.

60

L11279

TUBE - hyd. tilt cyl., L. H.

2шт.

61

L11324

HOSE - hyd. tilt cyl.

4шт.

62

L11466

CLAMP - tube, tilt cyl.

4шт.

63

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

64

195-21

WASHER,5/16"

- (11/32 x 11/16 x 1/16")

8шт.

65

L11465

SPACER

- tube clamp, tilt cyl.

4шт.

66

92-5

LOCK WASHER,5/16"

4шт.

67

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N. C. hex.)

4шт.

68

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING ASSY. - adapter, w/"O" ring

4шт.

69

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (59/64 x 1-5/32 x 1/8")

1шт.
