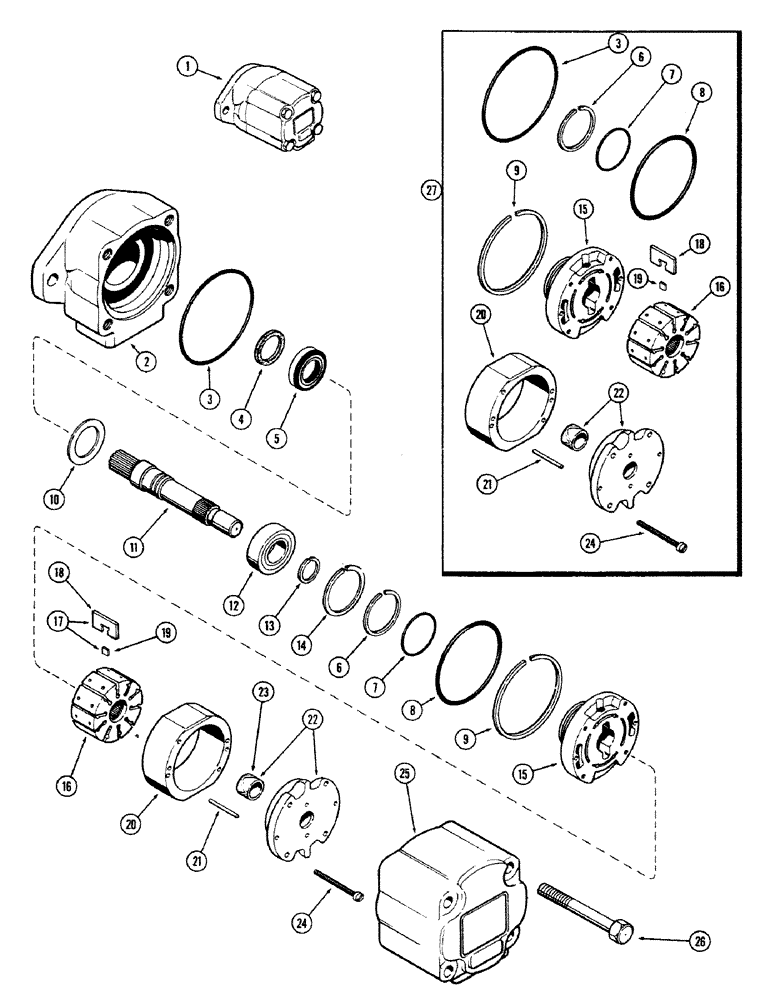

Запчасти Case 680CK (112) - HYDRAULIC PUMP

1

L16716

KIT

PUMP ASSY. - hydraulic (Replaces L11273)

1шт.

2

L30565

BODY - outlet, pump

1шт.

L30568

SEAL KIT

KIT - seal (Not illust.)

1шт.

3

L30557

O-RING

"O" RING - pump body (3-55/64" I. D. x 1/8")

1шт.

Part of rotor kit P/N L30566

1шт.

4

L30560

WIPER

- felt, pump shaft (1-1/8 x 1-7/16 x 5/32")

1шт.

5

L30562

SEAL

- shaft, pump (1-9/16 x 1-45/64 x 5/16")

1шт.

6

L30563

RING

- backup, body to wear plate

1шт.

Part of rotor kit P/N L30566

1шт.

7

L30555

O-RING

"O" RING - pressure plate (1-47/64" I. D. x 1/8")

1шт.

Part of rotor kit P/N L30566

1шт.

8

L30556

O-RING

"O" RING - pressure plate (3-1/2" I. D. x 1/8")

1шт.

Part of rotor kit P/N L30566

1шт.

9

L30564

RING

- backup, body to wear plate, rotor end

1шт.

Part of rotor kit P/N L30566

1шт.

10

L30558

WASHER

- pump brg. to seal spacer (1-3/8 x 2 x .020")

1шт.

11

L30545

SHAFT

- splined, pump

1шт.

12

L30554

BEARING, BALL

BEARING - shaft, pump

1шт.

13

A27576

SNAP RING,#98, Ext

Ring, Snap, , bearing #98, Ext

1шт.

14

L30559

RING, LOCKING

RING - spiroloc, bearing, ret.

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE - pressure, pump (Order ref. 27)

1шт.

Part of rotor kit P/N L30566

1шт.

16

L30550

ROTOR - pump

1шт.

Part of rotor kit P/N L30566

1шт.

17

L30567

KIT

- vane (Not illust.)

1шт.

19

NSS

NOT SOLD SEPARAT

INSERT - vane, pump

10шт.

Part of rotor kit P/N L30566

1шт.

20

L30549

RING - wear, pump

1шт.

Part of rotor kit P/N L30566

1шт.

21

L30548

PIN - headless

2шт.

Part of rotor kit P/N L30566

1шт.

22

NSS

NOT SOLD SEPARAT

PLATE - wear w/bushings (Order ref. 27)

1шт.

Part of rotor kit P/N L30566

1шт.

24

L30551

SCREW - (#10-24 x 2-3/8" sltd. hd.)

2шт.

Part of rotor kit P/N L30566

1шт.

25

L30569

COVER

- inlet, pump

1шт.

26

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

4шт.

27

L30566

KIT

ROTOR KIT, Includes: Ref. 3, 6 - 9, 15, 16 and 19 - 24

1шт.
