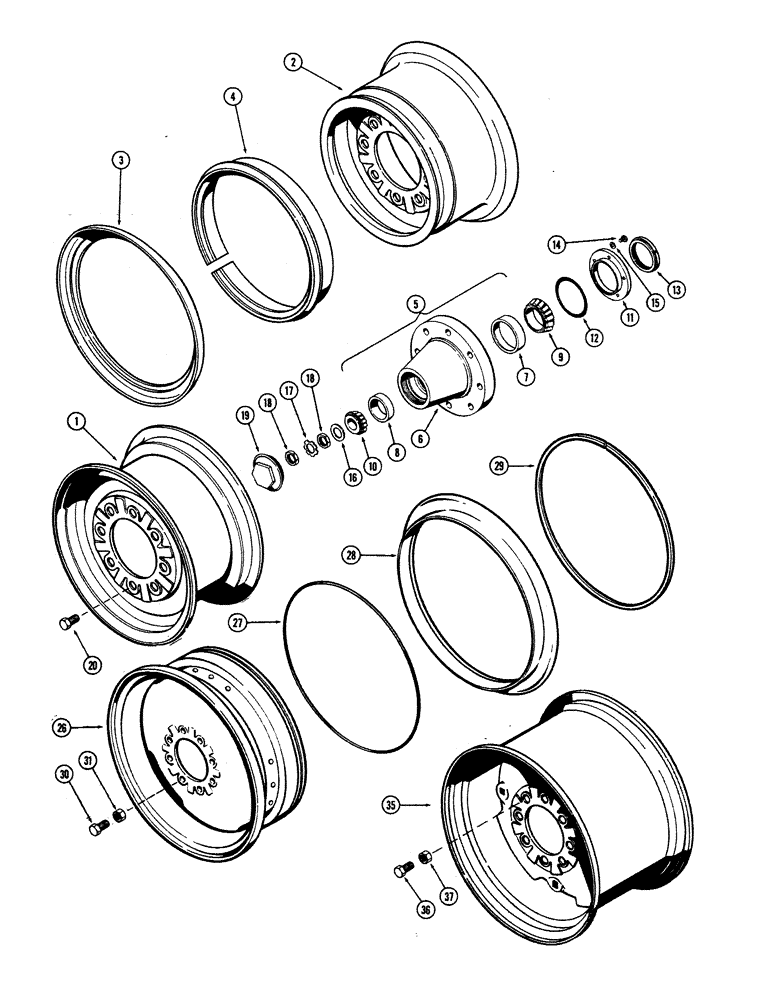

Запчасти Case 680CK (110) - FRONT STEERING WHEELS, REAR DRIVE WHEELS

1

L11745

WHEEL (STEERING)

WHEEL - (Takes 11.00 x 16 tire)

2шт.

2

L12274

WHEEL ASSY. - (Takes 8.25 x 15 tire)

2шт.

3

L30745

RING

- side

1шт.

4

L30746

LOCKING RING

LOCK - ring

1шт.

6

NSS

NOT SOLD SEPARAT

HUB - front wheel (Order L11382)

1шт.

7

A26678

BEARING CUP,3.6718" OD x 0.9375"

CUP - bearing, inner

1шт.

8

A26680

ROLLER BEARING,2.7510" OD x 0.75"

CUP - bearing, outer

1шт.

9

A27301

ROLLER BEARING,2" ID x 1.193"

CONE - bearing, inner

2шт.

10

A26679

ROLLER BEARING,1.25" ID x 0.9983"

CONE - bearing, outer

2шт.

11

A26992

RETAINER

- seal, frt. wheel

2шт.

12

A26993

O-RING,0.21" Thk x 3.725" ID, -343, Cl 5, 75 Duro

"O" RING - wheel seal retainer

2шт.

13

A26991

SEAL

- frt. wheel

2шт.

14

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

- (1/4 x 1/2" N.C. rd. hd. mach.)

10шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

10шт.

16

A26681

BEARING WASHER

WASHER - thrust, outer bearing

2шт.

17

A26542

LOCK WASHER

- lock, spindle nut

2шт.

18

25-1516

NUT,Jam, 1"-14, G5

- jam (1" N.F. hex.)

4шт.

19

A26011

CAP

- outer brg., wheel

2шт.

20

B18264

WHEEL BOLT

BOLT - wheel, rim mtg.

16шт.

26

A13642

WHEEL

- drive, rear (Takes 12.00 x 24 tire)

2шт.

27

A13099

O-RING,22 1" ID x 0.25"

RING - rim, wheel (Rubber)

2шт.

28

A13097

RING

- side, wheel rim

2шт.

29

A13538

BOLT - mtg., drive wheels (Used w/25-159 nut) (9/16"-18 with 1-9/32" of thread)

16шт.

30

B18264

WHEEL BOLT

BOLT - mtg., drive wheel (9/16" -18 with 15/16" thread) (Order 1-30538 bolt & 1-25-159 nut)

16шт.

31

25-159

JAM NUT,Jam, 9/16"-18, G5

- wheel mtg. bolt (9/16" -18 half hex.) (Used w/L13538 bolt only)

16шт.

35

A35906

WHEEL

- rear drive (Takes 14.9 x 24 tire)

2шт.

35

L11787

WHEEL - drive, rear (Takes 16.9 x 24 tire)

2шт.

36

L13538

WHEEL BOLT

- mtg., drive wheels (Used w/25-159 nut) (9/16" -18 with 1-9/32" of thread)

16шт.

36

B18264

WHEEL BOLT

BOLT - mtg., drive wheels (9/16" -18 with 15/16" of thread) (Order 1-L30538 bolt & 1-25-159 nut)

16шт.

37

25-159

JAM NUT,Jam, 9/16"-18, G5

- wheel mtg. bolt (9/16" -18 half hex.) (Used w/L13538 bolt only)

16шт.
