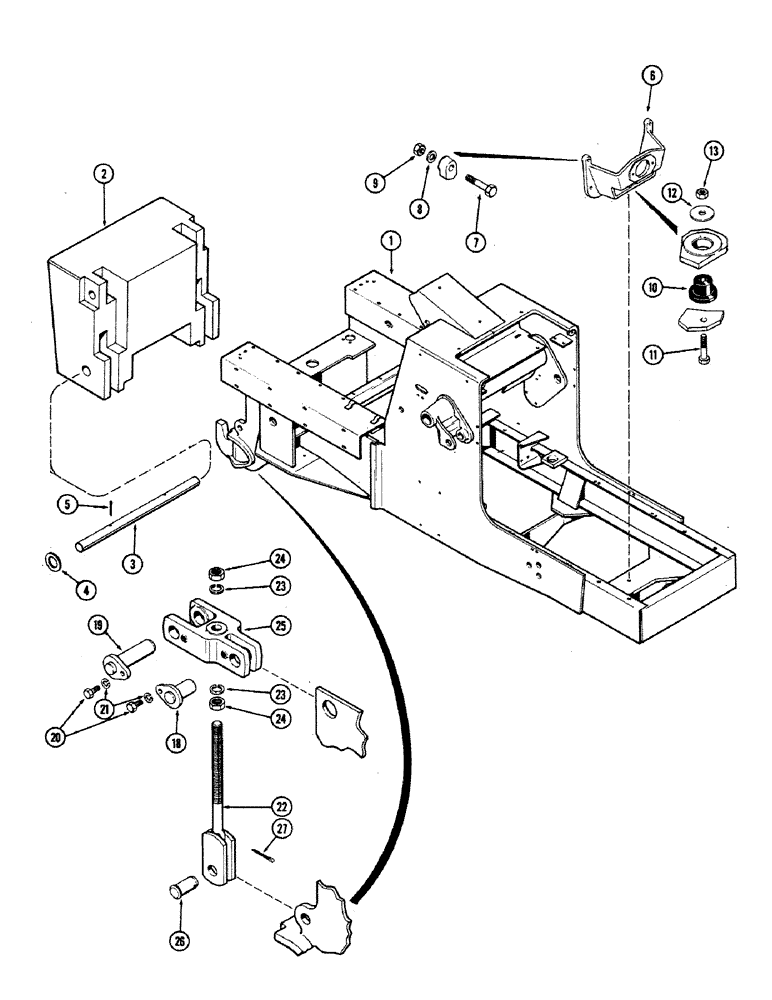

Запчасти Case 680CK (109A) - CHASSIS AND ATTACHING PARTS

1

L10908

CHASSIS - unit

1шт.

2

L10906

WEIGHT - counter (2700 lbs.)

1шт.

3

L10907

SHAFT - counterweight mtg.

1шт.

4

95-32

WASHER,2 1/8" x 4 1/2" x .179"

- shaft (2" wrot)

2шт.

5

132-221

PIN - shaft (7/16" cotter)

2шт.

6

L10793

BRACKET

- engine & pump mtg.

1шт.

7

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

8

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

9

25-1012

NUT,3/4"-10, G5

4шт.

10

A19067

MOUNTING PARTS

MOUNT - engine, rubber

1шт.

11

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- (5/8 x 4" N. C. hex.)

1шт.

12

A17516

WASHER

- engine mount

1шт.

13

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

18

L11510

AXLE PIN

PIN - backhoe mtg., front

2шт.

19

L11504

LARGE PIN

PIN - backhoe mtg., upper

2шт.

20

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

21

92-8

LOCK WASHER,1/2"

4шт.

22

L11512

ROD

ASSY. - tension, backhoe mtg.

2шт.

23

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

24

25-1016

NUT,1"-8, G5

4шт.

25

L11514

STRAP

BRACKET - backhoe mtg.

2шт.

26

L10994

AXLE PIN

PIN - backhoe mtg., lower

2шт.

27

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

2шт.
