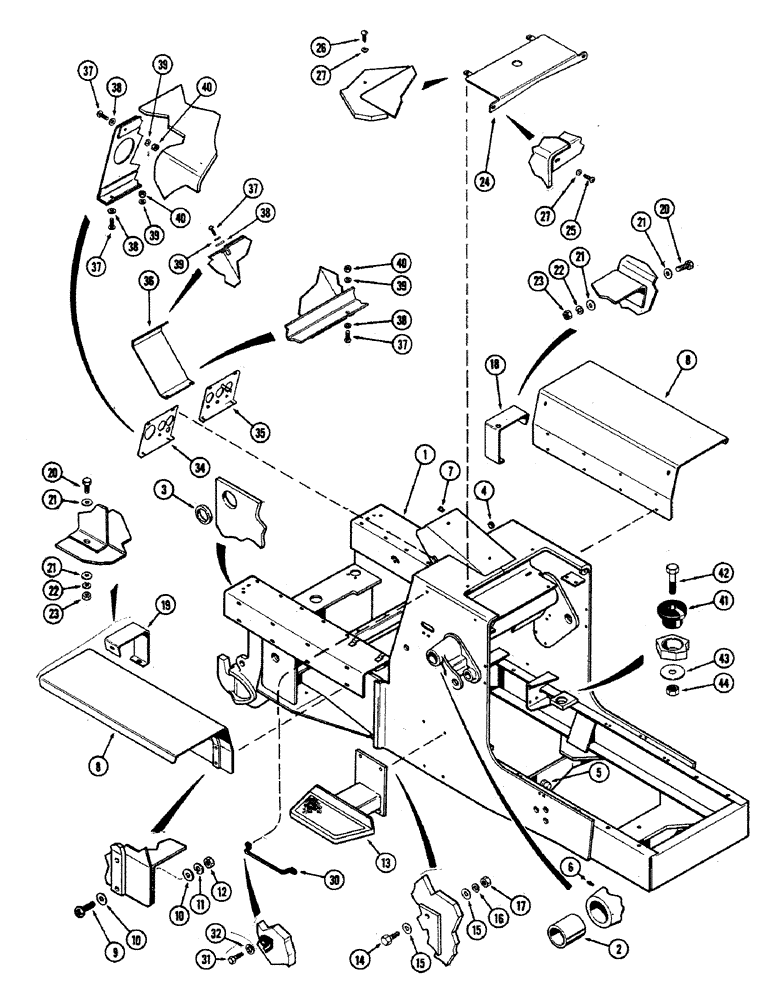

Запчасти Case 680CK (108) - CHASSIS AND ATTACHING PARTS

1

L10908

CHASSIS ASSY. - unit

1шт.

2

L11505

BUSHING - lift arm pivot bracket

2шт.

3

A19288

BUSHING

- rear side plate

2шт.

4

L10962

BUSHING - plate, hand pump mtg.

1шт.

5

A27445

BALL

- pivot, radius rod

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube (1/8" P.T. straight)

2шт.

7

A56527

PLUG - cockpit cowl

2шт.

8

L10805

FENDER - rear

2шт.

9

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex.)

16шт.

10

195-25

WASHER,3/8"

- (13/32 x 13/16 x 1/16")

32шт.

11

92-6

LOCK WASHER,3/8"

16шт.

12

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

16шт.

13

D135237

STEP

- mounting(replaces L10808)

2шт.

14

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex.)

8шт.

15

195-25

WASHER,3/8"

- (13/32 x 13/16 x 1/16")

16шт.

16

92-6

LOCK WASHER,3/8"

8шт.

17

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

8шт.

18

L11075

GUARD - back up light, L.H.

1шт.

19

L11076

GUARD - back up light, R.H.

1шт.

20

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

21

195-21

WASHER,5/16"

- (11/32 x 11/16 x 1/16")

8шт.

22

92-5

LOCK WASHER,5/16"

4шт.

23

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

4шт.

24

L11077

COVER - access, hydraulic tank

1шт.

25

77-412

SCREW

- (1/4 x 3/4" N.C. truss hd.)

2шт.

26

77-48

SCREW,Truss, 1/4" - 20 x 1/2"

- (1/4 x 1/2" N.C. truss hd.)

2шт.

27

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

30

A56109

HANDLE - mounting

2шт.

31

175-411

SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- (5/16 x 1" N.C. truss hd.)

4шт.

32

193-82

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

4шт.

34

L11331

PANEL - instrument, R.H.

1шт.

35

L11337

PANEL - instrument, L.H.

1шт.

36

L11080

COVER - console access

1шт.

37

173-214

SCREW,Phil Rnd Hd, 1/4" - 20 x 3/4"

- (1/4 x 3/4" N. C. ph. hd.)

12шт.

38

195-518

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16") 1/4", SAE

12шт.

39

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

12шт.

40

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

10шт.

41

A19067

MOUNTING PARTS

MOUNT - engine, rubber

2шт.

42

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- (5/8 x 4" N. C. hex.)

2шт.

43

A17516

WASHER

- engine mount

2шт.

44

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.
