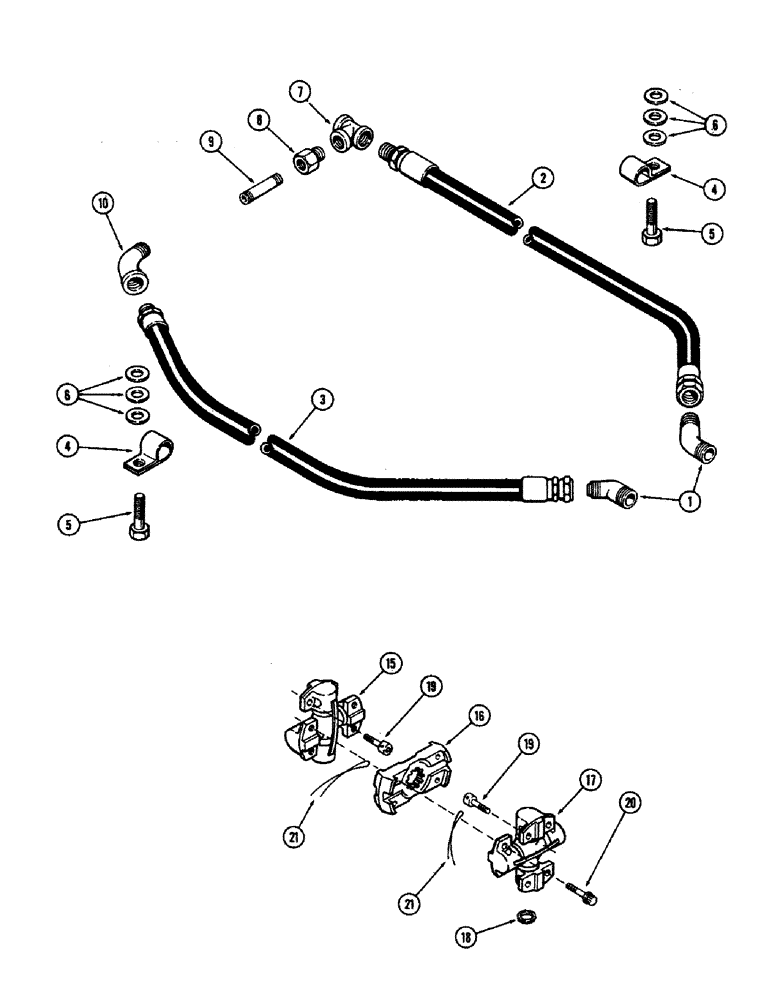

Запчасти Case 680CK (106) - CONVERTER COOLER HOSES, UNIVERSAL JOINT

1

A14867

X

FITTING -, Serial Range: radiator-hose

2шт.

2

L11081

HOSE

- conv. oil cooler outlet

1шт.

3

L11082

HOSE ASSY.

HOSE - conv. oil cooler return

1шт.

4

A27256

CLAMP

CLIP - hose to oil pan

2шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Clip to oil pan Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

6

195-25

WASHER,3/8"

- (13/32 x 13/16 x 1/16")

6шт.

7

221-1424

TEE,Pipe, 1/2" NPT

- (1/2" N. P. T.)

1шт.

8

221-1056

BUSHING

- reducer (1/2" to 3/8" N.P.T.)

1шт.

9

221-164

FITTING,Nipple, 3/8" NPT x 2"

NIPPLE - (3/8" N. P. T.)

1шт.

10

221-1403

ELBOW,45 Degree, 3/8"-18, NPT

- (45 degrees street)

1шт.

L11370

TOGGLE

JOINT - universal (Not illust.)

1шт.

15

L30633

KIT

- spider bearing

1шт.

16

L30493

PLATE

- joint coupling

1шт.

17

L30634

DIFF. SPIDER

KIT - spider bearing

1шт.

18

A14721

WASHER

GASKET - cork seal

8шт.

19

A14722

SCREW,5/16" x 1-1/16", Gr 8

- (5/16 x 1-1/16" N. F. sckt. drilled hd.)

8шт.

20

L30496

SCREW,1 15/16"

- ferry cap, Serial Range: spider-plate

4шт.

21

391-803

ELECTRICAL WIRE

WIRE - safety (#20 x 6)

4шт.
