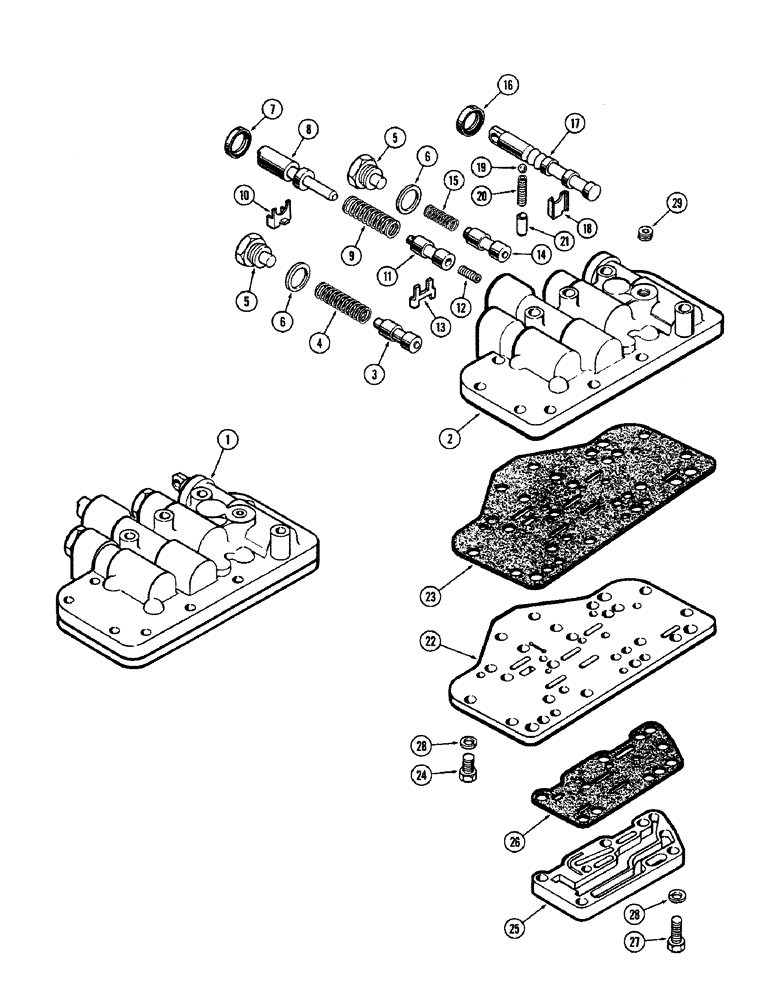

Запчасти Case 680CK (104) - CONTROL VALVE

1

L30492

BEARING

VALVE ASSY. - control (Replaces L30490)

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve (Order L30490)

1шт.

3

A14883

PLUNGER

VALVE - regulator

1шт.

4

A14885

VALVE SPRING

SPRING - regulator valve

1шт.

5

A14882

SCREW

- clutch supply valves

2шт.

6

G10964

WASHER

GASKET - valve retainer screw

2шт.

7

A14877

SEAL

- oil, inching valve

1шт.

8

A14873

PLUNGER

- inching valve

1шт.

9

A14874

VALVE SPRING

SPRING - outer inching valve

1шт.

10

A14876

STOP

- inching valve plunger

1шт.

11

A14878

PLUNGER

VALVE - inching

1шт.

12

A14879

VALVE SPRING

SPRING - inching valve locator

1шт.

13

A14880

STOP

- inching valve

1шт.

14

A14884

PLUNGER

VALVE - clutch supply regulator

1шт.

15

A14881

VALVE SPRING

SPRING - clutch supply valve

1шт.

16

A14863

OIL SEAL

SEAL - oil, selector valve

1шт.

17

L30255

SPOOL

- selector

1шт.

18

A14866

STOP

- selector valve

1шт.

19

211-7

BALL,1/4" Dia

1шт.

20

A14865

SPRING

- detent plunger

1шт.

21

A14864

PLUNGER

- selector valve detent

1шт.

22

A14868

PLATE - valve body separator

1шт.

23

A14869

GASKET

- valve body separator plate

1шт.

24

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

25

L30491

COVER - valve body

1шт.

26

A14871

GASKET

- valve body plate cover

1шт.

27

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- (5/16 x 1-1/4" N. C. hex.)

6шт.

28

92-5

LOCK WASHER,5/16"

8шт.

29

221-1661

PLUG

- pipe

2шт.
