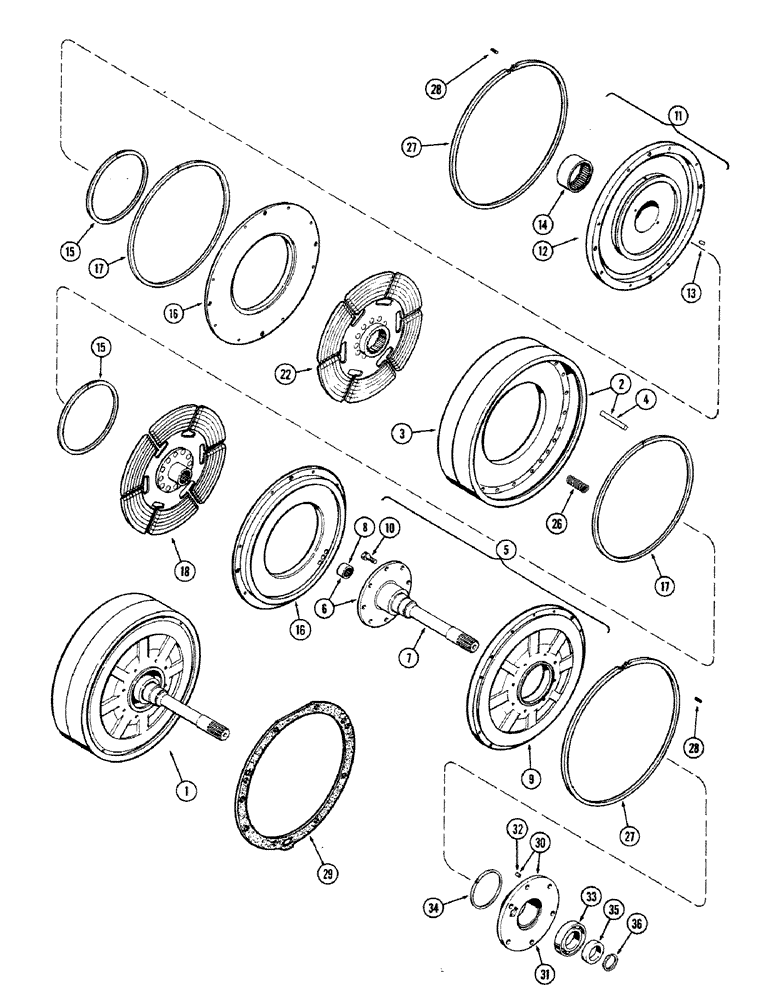

Запчасти Case 680CK (102) - FORWARD AND REVERSE CLUTCH

1

L30691

CLUTCH

CLUTCH ASSY. - forward & reverse

1шт.

2

L30694

PLATE

PLATE ASSY. - clutch pressure

1шт.

2

L30694R

REMAN-CLUTCH PLATE

Remanufactured, CLUTCH PLATE

1шт.

2

L30694C

CORE-CLUTCH PLATE

Return Number, Plate Assembly, Pressure

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE - clutch pressure

1шт.

4

A14829

AXLE PIN

PIN - pressure plate drive

4шт.

5

L30695

SPARE PART SHAFT - clutch cylinder

1шт.

6

L30477

SHAFT

SHAFT - input assy.

1шт.

7

NSS

NOT SOLD SEPARAT

SHAFT - input

1шт.

8

T32720

BEARING

BEARING - needle, input shaft

1шт.

9

L30698

CYLINDER BLOCK

CYLINDER - front clutch

1шт.

10

L30440

BOLT

BOLT - lock

8шт.

11

L30692

CYLINDER

CYLINDER ASSY. - plug & brg.

1шт.

12

NSS

NOT SOLD SEPARAT

CYLINDER - rear clutch

1шт.

13

NSS

NOT SOLD SEPARAT

PLUG - rear cyl.

2шт.

14

L30246

BEARING

BEARING - needle

1шт.

15

A14832

RING

RING - clutch piston inner seal

2шт.

16

A14830

PISTON ASSY.

PISTON - clutch

2шт.

17

A14831

RING

RING - clutch piston outer seal

2шт.

18

A14822

PLATE

PLATE - clutch

1шт.

18

A14822R

REMAN-CLUTCH PLATE

680CK Up To S/N 9101501

1шт.

18

A14822C

CORE-CLUTCH PLATE

Return Number

1шт.

22

A14823

PLATE

PLATE - clutch

1шт.

26

A14827

VALVE SPRING

SPRING - clutch retractor

24шт.

27

A14826

X

RING - snap, front & rear cyl. to plate

2шт.

28

L30693

SCREW

SCREW - nylock

2шт.

29

A14886

GASKET

GASKET - trans. case

1шт.

30

L30479

CAP

RETAINER - bearing

1шт.

31

NSS

NOT SOLD SEPARAT

RETAINER - bearing

1шт.

32

L30245

PLUG

PLUG

2шт.

33

L30481

BEARING

SPARE PART BEARING - clutch

1шт.

34

A14833

SEALING RING

RING - seal, cyl. to conv. hsg.

2шт.

35

L30483

SPACER

SPACER - bearing

1шт.

36

L30484

RING, SNAP

RING SNAP RING - snap, input shaft

1шт.
