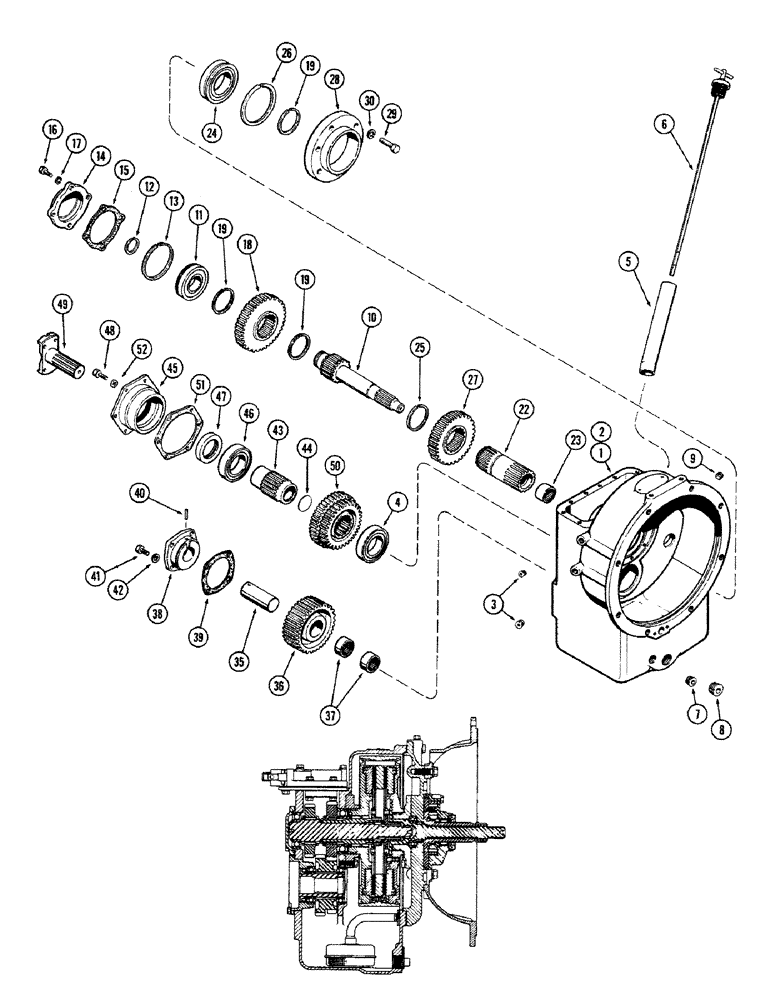

Запчасти Case 680CK (100) - POWER SHUTTLE TRANSMISSION AND CASE

1

L30468

X

CASE ASSY. - trans. (Not illust.)

1шт.

2

NSS

NOT SOLD SEPARAT

CASE - trans. rear half (Order L30468)

1шт.

3

221-1662

PLUG

- pipe (1/4" sq. hd.)

2шт.

4

G13075

BEARING, BALL

BEARING - trans. case

1шт.

5

L11659

X

TUBE - filler & dipstick

1шт.

6

L11660

X

DIPSTICK - oil level

1шт.

7

221-654

PLUG,Hex Hd, 1/2"-14

- pipe (1/2")

1шт.

8

221-45

X

PLUG - oil screen hole (3/4" P. T., ctsk. hd.)

1шт.

9

221-1662

PLUG

- pipe (1/4") (Trans. case, front half)

1шт.

10

A14850

SHAFT

- forward drive

1шт.

11

L30235

BEARING - forward drive shaft

1шт.

12

A14835

RING, SNAP

RING - snap, shaft

1шт.

13

A28153

RING

- snap, Serial Range: bearing-retainer

1шт.

14

A14854

RETAINER - shaft bearing

1шт.

15

A14855

GASKET

- bearing retainer

1шт.

16

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

17

92-5

LOCK WASHER,5/16"

4шт.

18

A14853

GEAR

- reverse & low (35 teeth)

1шт.

19

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap

3шт.

22

L30230

SHAFT

- drive assy.

1шт.

23

A14858

NEEDLE BEARING,Needle, 28.56mm ID x 34.94mm OD x 19.05mm W

BEARING - needle (Torrington #B1812)

1шт.

24

L30232

X

BEARING - reverse drive shaft

1шт.

25

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap, forward drive shaft

1шт.

26

L30233

RING, SNAP

RING - snap, bearing

1шт.

27

A14859

GEAR - reverse drive

1шт.

28

L30236

RETAINER

RETAINTER - bearing

1шт.

29

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- (5/16 x 1-1/4" N. C. hex.)

6шт.

30

92-5

LOCK WASHER,5/16"

6шт.

35

A14841

SHAFT

- idler gear

1шт.

36

L30471

GEAR

ASSY. - idler

1шт.

37

T15025

NEEDLE BEARING,Needle, 31.75mm ID x 38.11mm OD x 19.05mm W

BEARING - idler gear needle

2шт.

38

A14843

CAP

RETAINER - idler shaft

1шт.

39

A14844

GASKET

- retainer cap

1шт.

40

A14842

PIN

- idler gear shaft lock

1шт.

41

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

42

92-5

LOCK WASHER,5/16"

4шт.

43

L30336

SHAFT

ASSY. - output

1шт.

44

A7509

PLUG

- expansion

1шт.

45

A14847

RETAINER

- output shaft bearing

1шт.

46

G13075

BEARING, BALL

BEARING - output shaft

1шт.

47

A14849

X

SEAL - oil, output shaft

1шт.

48

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Retainer Hex, 5/16"-18 x 7/8", G5, Full Thd

6шт.

49

A13914

YOKE

- stub, trans. output

1шт.

50

L30470

GEAR

- trans. countershaft

1шт.

51

A14848

GASKET

- ouput shaft bearing retainer

1шт.

52

A17864

SEAL

GASKET - ouput shaft bearing retainer

6шт.
