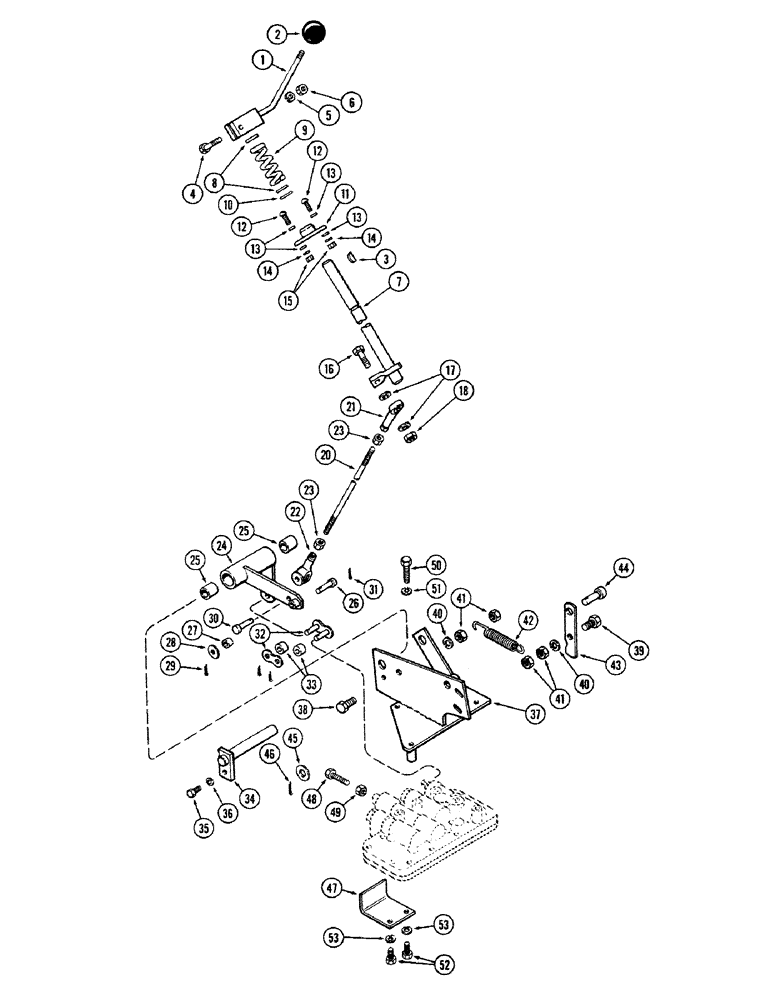

Запчасти Case 680CK (096) - CONVERTER VALVE CONTROLS

1

L11084

HANDLE - forward-reverse shift

1шт.

2

A14051

GRIP

BALL - handle

1шт.

3

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

1шт.

4

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- (5/16 x 1-3/4" N. C. hex)

1шт.

5

92-5

LOCK WASHER,5/16"

1шт.

6

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N. C. hex.)

1шт.

7

L11570

SHAFT - forward-reverse shift

1шт.

8

G49066

WASHER - (11/16" I. D.)

2шт.

9

A30146

SPRING

- (2-1/2" free length)

1шт.

10

L11094

RING - shift lever shaft retaining

1шт.

11

L11566

BEARING

- shift lever

1шт.

12

L11652

SCREW - (#10 x 3/4" tensilock)

2шт.

13

195-13

WASHER,#10

- (3/16" plain)

4шт.

14

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

15

129-7

NUT,Hex, #10 - 24

- (#10 N. C. hex.)

2шт.

16

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- (5/16 x 1-1/2" N. C. hex)

1шт.

17

A22873

WASHER,8.33mm ID x 15.88mm OD x 1.88mm Thk

- (21/64" I. D.)

2шт.

18

131-4

LOCK NUT,5/16"-18, GB

NUT - (5/16" N. C. hex., ESNA)

1шт.

20

L11096

ROD

- forward-reverse shift link

1шт.

21

A35134

BEARING

EYE - rod end, self-aligning

1шт.

22

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - (3/16" std.)

1шт.

23

25-155

JAM NUT,Jam, 5/16"-24, G5

- (5/16" N. F. hex., jam)

2шт.

24

L11571

BELLCRANK - forward-reverse shift assy.

1шт.

25

L10818

BUSHING

- bellcrank

2шт.

26

A8824

PIN

- bell crank detent

1шт.

27

L11565

BEARING

- neutral start

1шт.

28

195-15

WASHER,#12

- (1/4" plain)

1шт.

29

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

30

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

1шт.

31

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

32

60961

DRAG LINK

CONNECTOR - link, forward & reverse

1шт.

33

L11102

SPACER

- forward-reverse shift

2шт.

34

L11107

SHAFT

- bellcrank pivot

1шт.

35

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

36

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

37

L11574

BRACKET - bellcrank mtg.

1шт.

38

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

39

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

40

92-5

LOCK WASHER,5/16"

2шт.

41

25-145

JAM NUT,Jam, 5/16"-18, G5

- (5/16" N. C. hex., jam)

4шт.

42

R14163

VALVE SPRING

SPRING - (4.27 max. free length)

1шт.

43

L11564

BAR - neutral start detent

1шт.

44

A10122

PIN - detent bar

1шт.

45

95-7

WASHER,7/16"

- (1/2" plain)

1шт.

46

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

47

L11110

BRACKET - clutch cutout on trans.

1шт.

48

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

- (5/16 x 1-1/2" N. F. hex.)

1шт.

49

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

50

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

51

92-5

LOCK WASHER,5/16"

1шт.

52

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

53

92-5

LOCK WASHER,5/16"

2шт.
