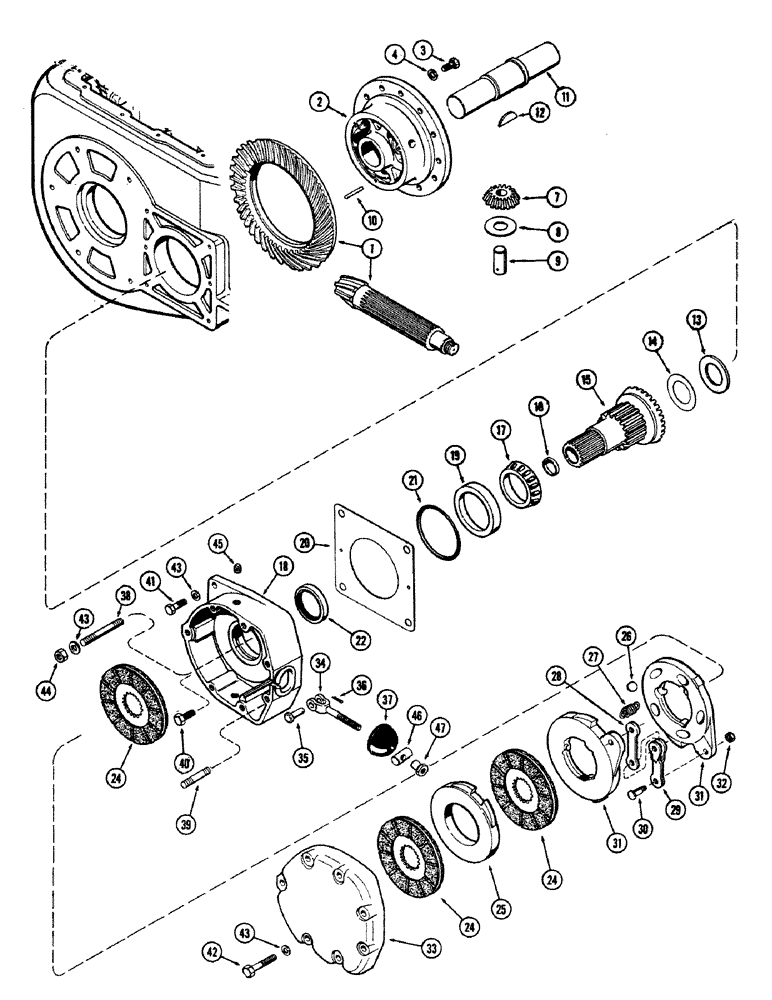

Запчасти Case 680CK (092) - DIFFERENTIAL AND BRAKES

1

G14420

GEAR

SET - ring gear and pinion

1шт.

2

A38162

WHEEL (STEERING)

WHEEL - center, diff. ring gear (Replaces A38131)

1шт.

3

114-318

BOLT

- (7/16 x 3/4" N. F. hex., grade 8) (Used Loc-Tite)

12шт.

B17068

ADHESIVE

Loc-Tite - tube, 22 CC

1шт.

4

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- diff. ring gear (29/64 x 3/4 x 1/16")

12шт.

7

G17006

GEAR WHEEL

GEAR - pinion (.870" wide) (Item 8 is not used w/this gear)

3шт.

7

A38147

X

GEAR - pinion (.840" wide) (Order G17006) (Item 8 is not used w/this gear)

3шт.

8

NS

NOT SERVICED

WASHER - thrust (Used w/A38147 gear only) (Order G17006)

3шт.

9

A37135

AXLE PIN

SHAFT - pinion gear

3шт.

10

138-141

LOCK PIN,1/4" x 1 7/8", Slotted

PIN, 1/4" x 1 7/8", Slotted

3шт.

11

A37144

SHAFT - cross, differential

1шт.

12

126-146

WOODRUFF KEY,#27, 1/4" x 2 1/8", HT

1шт.

13

A37163

X

WASHER - thrust, ctr. wheel (.089")

1шт.

13

A37164

X

WASHER - thrust, ctr. wheel (.094")

1шт.

13

A37165

WASHER

- thrust, ctr. wheel (.099")

1шт.

13

A37166

WASHER

- thrust, ctr. wheel (.104")

1шт.

13

A37167

WASHER

- thrust, ctr. wheel (.109")

1шт.

13

A37168

X

WASHER - thrust, ctr. wheel (.119")

1шт.

14

A37162

WASHER

SHIM - thrust washer, ctr. wheel (.010")

1шт.

15

A37146

GEAR WHEEL

GEAR ASSY. - side

2шт.

16

A29902

PLUG

- side gear

1шт.

17

A37160

ROLLER BEARING

CONE - brg. side gear

2шт.

18

A37151

CARRIER - diff. brg.

2шт.

19

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP - bearing, side gear

2шт.

20

A38165

SHIM,.003" Thk

Bearing carrier .003" Thk

1шт.

20

G10719

SHIM,.005" Thk

Bearing carrier .005" Thk

1шт.

20

F10720

SHIM - bearing, carrier (.010")

1шт.

21

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - brg., carrier (5 x 5-1/4 x 1/8")

2шт.

22

A38231

OIL SEAL,66.67mm ID x 85.22mm OD x 9.53mm Thk

- oil, brg. carrier (Replaces A37147)

2шт.

24

A37154

X

DISC ASSY. - diff. brake, middle

6шт.

R13352

BRAKE

ACTUATOR ASSY. - dif. brake, middle (Not illust.)

2шт.

26

211-19

BALL,7/8" Dia

- (.) 7/8" Dia

5шт.

27

A30897

SPRING

- extension

3шт.

28

A31119

LINK

- single, actuating disc

1шт.

29

A31120

LINK

- straddle, actuating disc

1шт.

30

A31121

STEP BOLT

BOLT - link, actuating disc

2шт.

31

NSS

NOT SOLD SEPARAT

DISC - actuating (Order R13352)

2шт.

32

25-156

JAM NUT,Jam, 3/8"-24, G5

- (3/8" N.F. hex., jam)

2шт.

33

A37153

COVER - diff. brake

2шт.

34

A28203

ROD

- diff. brake pull

2шт.

35

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke, pull rod

2шт.

36

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

37

A27465

CAP

- dust, brake rod hole

2шт.

38

G49500

STUD

- cover (1/2 x 2-13/16")

2шт.

39

A30057

STUD

- cover (1/2 x 2")

2шт.

40

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

41

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

42

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

14шт.

43

92-8

LOCK WASHER,1/2"

18шт.

44

25-118

NUT,1/2"-20, G5

- (1/2" N.F. hex.)

2шт.

45

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe (1/2" sq. hd.)

2шт.

46

A27687

HARDWARE

TRUNNION - pull rod guide

2шт.

47

A27686

NUT

- pull rod adjusting

2шт.
