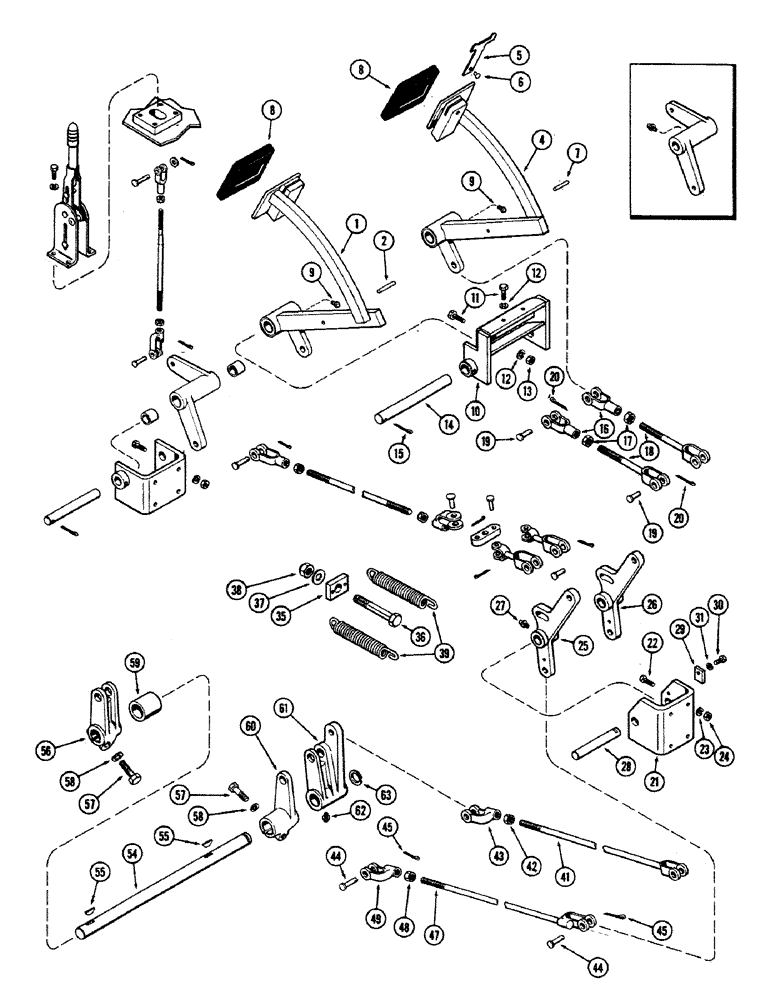

Запчасти Case 680CK (088) - BRAKE CONTROLS

1

L11196

PEDAL ASSY. - brake, right hand

1шт.

2

135-261

PIN - groove (1/4 x 1-1/2" half length taper)

1шт.

4

L11197

PEDAL ASSY. - brake, left hand

1шт.

5

A29086

LOCK - brake pedal

1шт.

6

45-420

RIVET - brake lock (1/4 x 1-1/4" rd. hd.) But Hd, 1/4" x 1 1/4"

1шт.

7

135-261

PIN - groove (1/4 x 1-1/2" half length taper)

1шт.

8

L11193

PAD

- brake pedal, rubber

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P. T. straight, 21/32" overall)

2шт.

10

L11179

BRACKET - brake pedal mtg.

1шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

5шт.

12

92-6

LOCK WASHER,3/8"

5шт.

13

25-106

NUT,3/8"-16, G5

- (3/8" N. C. hex.)

3шт.

14

L11184

SHAFT - brake pedal mtg.

1шт.

15

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

16

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - brake rod adjusting

2шт.

17

25-118

NUT,1/2"-20, G5

- (1/2" N. F. hex.)

2шт.

18

L11211

ROD - brake pedal

2шт.

19

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis

4шт.

20

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

21

L11205

BRACKET - bellcrank mtg.

1шт.

22

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N. C. hex.)

4шт.

23

92-6

LOCK WASHER,3/8"

4шт.

24

25-106

NUT,3/8"-16, G5

- (3/8" N. C. hex.)

4шт.

25

L11206

BELLCRANK - diff. brake, right hand

1шт.

26

L11207

BELLCRANK - diff. brake, left hand

1шт.

27

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube (1/8" P. T. straight, 21/32" overall)

2шт.

28

L11208

SHAFT - bellcrank

1шт.

29

L11209

LOCK - shaft

1шт.

30

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

31

92-5

LOCK WASHER,5/16"

1шт.

35

L11654

BRACKET - mtg., spring

1шт.

36

13-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

- (5/8 x 1-1/4" N. C. hex.)

1шт.

37

95-10

WASHER,5/8"

- (11/16 x 1-3/4 x 9/64")

1шт.

38

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, , Esna 5/8"-11, GC

1шт.

39

CASA34224

SPRING

- brake pedal

2шт.

41

L11203

ROD - diff. brake, left hand

1шт.

42

25-118

NUT,1/2"-20, G5

- (1/2" N. F. hex.)

1шт.

43

L11174

YOKE - offset rod end

1шт.

44

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis

4шт.

45

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

47

L11204

ROD - diff. brake, right hand

1шт.

48

25-118

NUT,1/2"-20, G5

- (1/2" N.F. hex.)

1шт.

49

L11174

YOKE - offset rod end

1шт.

54

L11198

SHAFT - brake, intermediate

1шт.

55

126-24

WOODRUFF KEY,#15, 1/4" x 1"

2шт.

56

L11199

LEVER

- diff. brake, right hand, outer

1шт.

57

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

58

92-8

LOCK WASHER,1/2"

2шт.

59

L11200

SPACER - diff. brake, R. H. (On shaft)

1шт.

60

L12270

LEVER - diff. brake, right hand, inner (Replaces L11201)

1шт.

61

L11202

LEVER - diff. brake, left hand

1шт.

62

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube (1/8" P. T. straight, 21/32" overall)

1шт.

63

F62093

RING, SNAP

RING - snap, on shaft

1шт.
