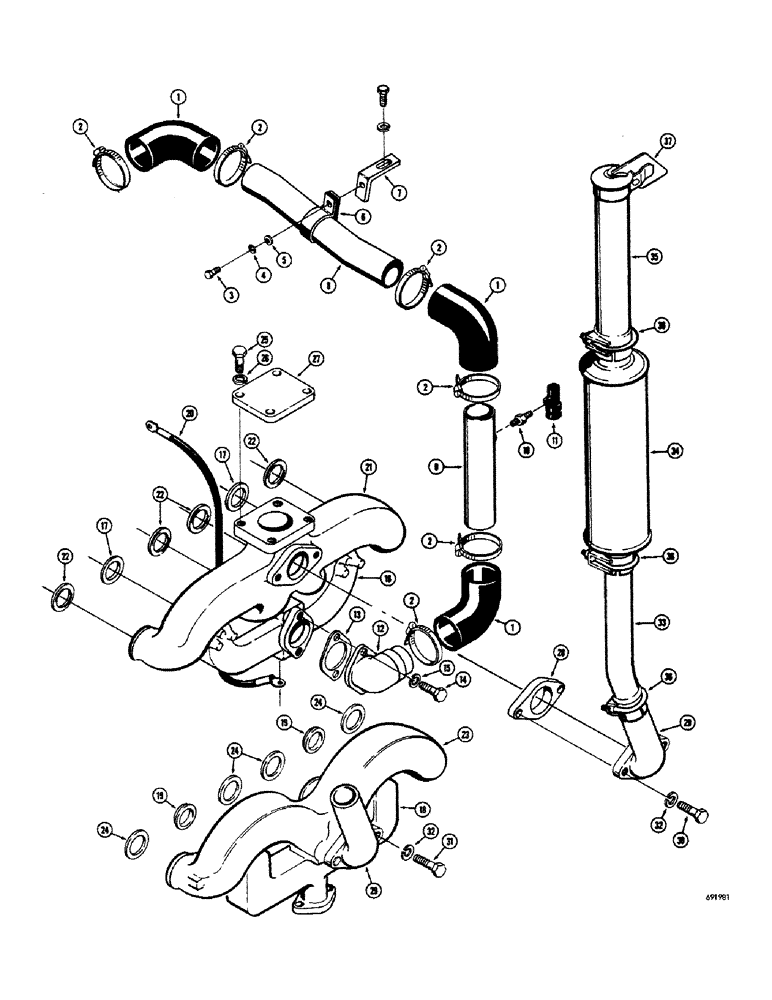

Запчасти Case 680CK (011A) - OVERHEAD EXHAUST SYSTEM, GAS AND DIESEL
№
Артикул
Название
Примечание
Количество
1
L11251
ELBOW
- hose, 90 degrees
3шт.
2
214-260
HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm
6шт.
3
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
1шт.
4
92-5
LOCK WASHER,5/16"
1шт.
5
195-21
WASHER,5/16"
- plain () 5/16"
1шт.
6
L11256
CLAMP - air cleaner tube
1шт.
7
L11531
BRACKET - clamp mounting
1шт.
8
L13630
TUBE - air cleaner, upper 2.25" OD
1шт.
9
L13631
TUBE - air cleaner, lower
1шт.
10
D36264
FITTING
ADAPTER - air cleaner warning gauge
1шт.
11
A17652
ELECTRICAL GAUGE
GAUGE - warning, air cleaner
1шт.
12
A21007
ELBOW - intake manifold
1шт.
13
A21055
MANIFOLD GASKET
- manifold elbow
1шт.
14
13-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
2шт.
15
92-6
LOCK WASHER,3/8"
2шт.
16
A21005
MANIFOLD - intake (Diesel engine)
1шт.
17
A11888
MANIFOLD GASKET
- intake manifold (Diesel engine)
2шт.
18
A18508
MANIFOLD
- intake (Gas engine)
1шт.
19
A7363
MANIFOLD GASKET
- intake manifold (Gas engine)
2шт.
20
A24093
CABLE PULLING GRIP
WIRE - manifold heater (Diesel engine)
1шт.
21
A20385
MANIFOLD - exhaust (Diesel engine)
1шт.
22
A11889
GASKET
- exhaust manifold (Diesel engine)
4шт.
23
A20811
MANIFOLD - exhaust (Gas engine)
1шт.
24
A27909
GASKET
- exhaust manifold (Gas engine)
4шт.
25
13-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
4шт.
26
92-8
LOCK WASHER,1/2"
4шт.
27
A20387
COVER - exhaust manifold (Diesel engine only)
1шт.
28
A57467
SPACER - exhaust elbow (Diesel engine only)
1шт.
29
A17488
ELBOW
- exhaust
1шт.
30
13-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
HHCS - 1/2" - 13 NC x 2-1/2" (Diesel engine)
2шт.
31
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
(Gas engine) Hex, 1/2"-13 x 1 1/2", G5, Full Thd
2шт.
32
92-8
LOCK WASHER,1/2"
2шт.
33
L13642
PIPE
- exhaust (Diesel engine)
1шт.
33
L13643
PIPE
- exhaust (Gas engine)
1шт.
34
A15163
MUFFLER
- exhaust
1шт.
35
L13824
EXTENSION
- exhaust
1шт.
36
A13240
CLAMP,2-5/8" ID
- muffler and extension
3шт.
37
74081
X
CAP - exhaust pipe
1шт.
Выбрано товаров: 38
