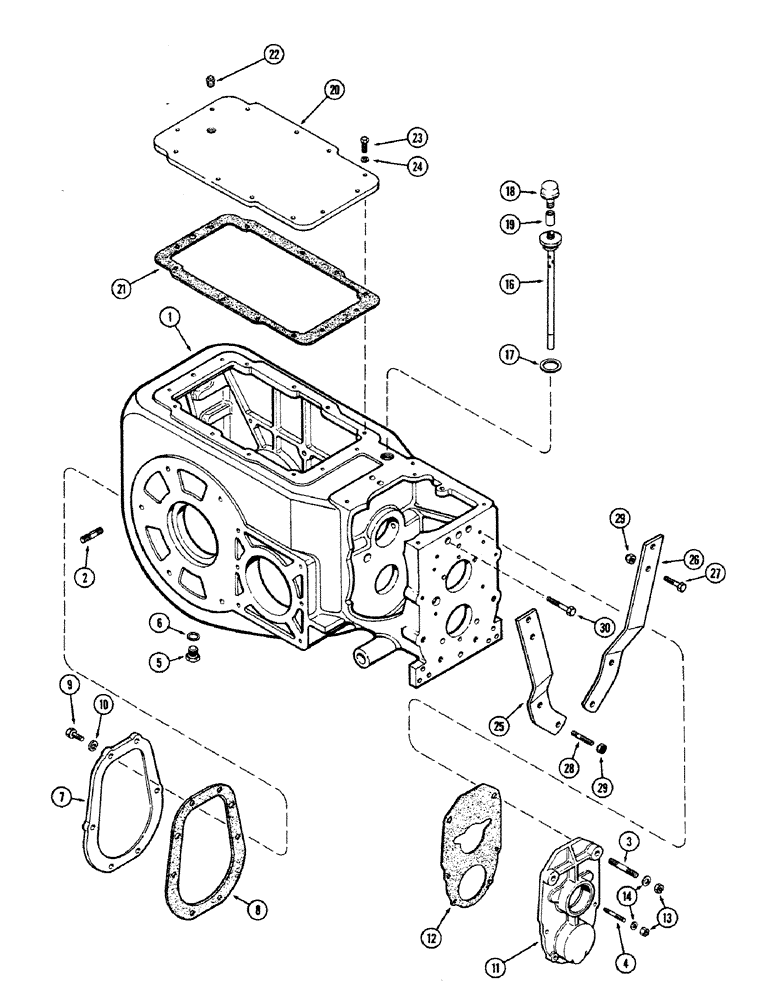

Запчасти Case 680CK (084) - TRANSMISSION CASE AND COVERS

1

A37141

CASE

- transmission

1шт.

2

A37143

STUD

- axle housing to trans. case

10шт.

3

A29717

STUD

- diff. case front cover

2шт.

4

G10710

STUD

- front cover (3/8" N. F. x 1-3/4")

2шт.

5

A14280

PLUG

- drain

1шт.

6

A27927

OIL PAN GASKET SET

- drain plug

1шт.

7

G1041

COVER

- trans. case, rear

1шт.

8

G10447

GASKET

- rear cover

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

10

92-6

LOCK WASHER,3/8"

6шт.

11

A13635

COVER ASSY

COVER - tranx. case, front

1шт.

12

G46849

GASKET

- cover

1шт.

13

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N. F. hex.)

4шт.

14

92-6

LOCK WASHER,3/8"

4шт.

16

A19910

DIPSTICK

- oil gauge

1шт.

17

G10351

GASKET

- dipstick (1-1/4 x 1-1/2 x 3/32")

1шт.

18

A27173

BREATHER

- trans. case

1шт.

19

221-1327

X

COUPLING - breather (1/4" P. T.)

1шт.

20

A13633

COVER - trans. case, top

1шт.

21

G47006

GASKET

- cover

1шт.

22

221-1002

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - cover (1/4" P. T. sq. hd.)

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

12шт.

24

92-6

LOCK WASHER,3/8"

12шт.

25

L11380

SUPPORT - trans., rear R.H.

1шт.

26

L11381

SUPPORT - trans., rear. L.H.

1шт.

27

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- (1/2 x 1-3/4" N.C. hex.)

4шт.

28

A27182

STUD

- trans. support, front

4шт.

29

131-10

NUT,1/2"-13, GB

NUT, LOCK, , Esna 1/2"-13, GB

8шт.

30

113-439

SCREW,Locking, 1/2"-13 x 2 1/2", G5

BOLT - nylock (1/2 x 2-1/2" N.C. hex.)

2шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - lube (1/8 x 45 degrees) (In trans. case) (Not illust.)

2шт.
