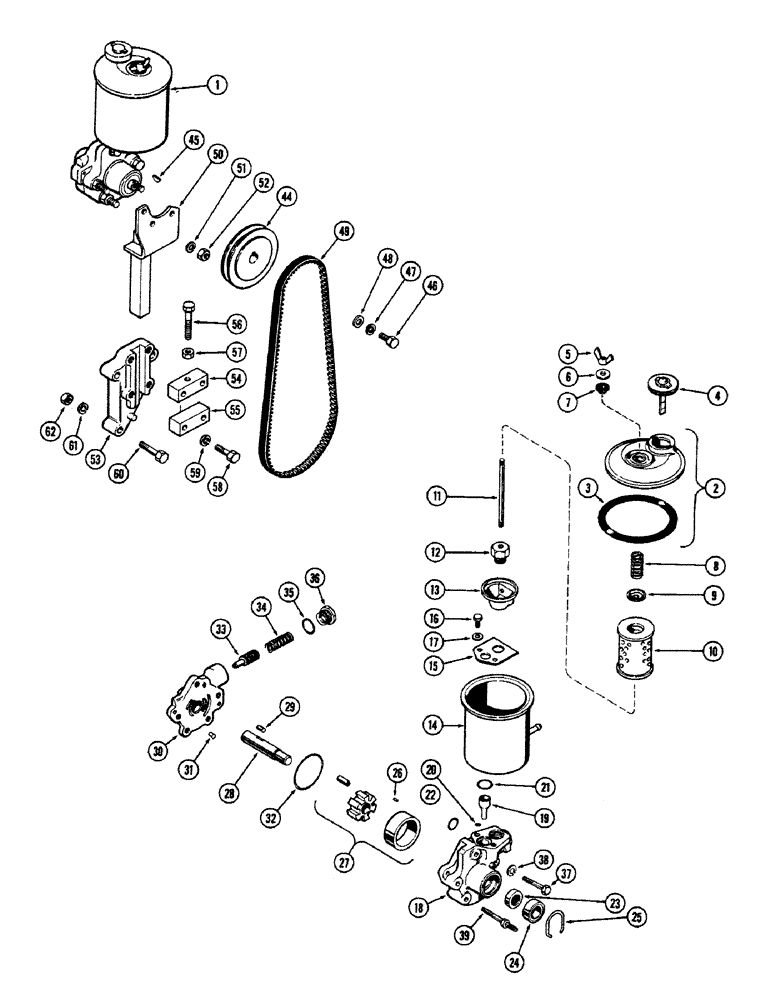

Запчасти Case 680CK (082) - L13412 POWER STEERING PUMP, 1ST USED LOADER SER. NO. 9100861

1

L13412

PUMP ASSY. - power str. (Eaton #ER-114B-2)

1шт.

2

A24136

COVER ASSY. - reservoir

1шт.

3

A24138

GASKET

-, Serial Range: cover-reservoir

1шт.

4

A24137

GAUGE ASSY.

CAP ASSY. - filler, w/bayonet gauge

1шт.

5

129-419

WING NUT,5/16"-18

NUT - cover ret. (5/16" N.C. wing)

1шт.

6

A30831

WASHER

- cover nut (3/8 x 7/8 x 3/32")

1шт.

7

A30830

GASKET

- cover stud

1шт.

8

A40000

SPRING

SPARING - element tension

1шт.

9

A22714

SEAT

- element spring

1шт.

10

A18061

FILTER, ELEMENT

ELEMENT - oil filter

1шт.

11

A40001

DOWEL

STUD - cover retaining

1шт.

12

A20523

STUD

ADAPTER - cover stud & filter support

1шт.

13

A40268

SUPPORT - element

1шт.

14

A40003

TANK

RESERVOIR - oil

1шт.

15

A18060

PLATE - reinforcement

1шт.

16

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Reservoir Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

17

92-5

LOCK WASHER,5/16"

2шт.

18

A20517

BODY ASSY. - w/bushing

1шт.

19

A20526

VENTURI

1шт.

20

A11026

GASKET

"O" RING - body (11/32 x 29/64 x 1/16")

2шт.

21

A11027

GASKET

"O" RING - body (53/64 x 61/64 x 7/16")

2шт.

22

A20514

O-RING

"O" RING - by-pass port

1шт.

23

A30838

OIL SEAL

- oil

1шт.

24

A30835

BEARING

- pump shaft

1шт.

25

A20524

RING, SNAP

RING - snap, bearing retaining

1шт.

26

A20528

PIN

- impeller cam

1шт.

27

L30898

PACKAGE

IMPELLER KIT (Incl. 1 cam, 6 rollers & 1 carrier)

1шт.

28

A20510

SHAFT

- pump

1шт.

29

A30839

AXLE PIN

KEY -, Serial Range: impeller-shaft

1шт.

30

L30897

COVER ASSY

. - w/bushing

1шт.

31

A30836

DOWEL

PIN - cover locating

2шт.

32

A20513

O-RING

"O" RING -, Serial Range: cover-body

1шт.

33

L30896

VALVE - pressure relief

1шт.

34

L30895

SPRING

- pressure relief valve

1шт.

35

A30837

O-RING

"O" RING - relief valve cap

1шт.

36

A20512

CAP - pressure relief valve

1шт.

37

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- body (3/8 x 3" N.C. hex.)

2шт.

38

92-6

LOCK WASHER,3/8"

2шт.

39

A20527

STUD - body

3шт.

44

L11577

PULLEY

- hyd. steering pump

1шт.

45

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

Pulley #3, 1/8" x 1/2"

1шт.

46

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Pulley Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

47

92-5

LOCK WASHER,5/16"

1шт.

48

A27343

BUSHING

WASHER - (11/32 x 15/16 x 12 ga.)

1шт.

49

L11111

BELT,55.00" L

Power steering 55.00" L

1шт.

50

L11575

BRACKET

- pump mounting

1шт.

51

92-6

LOCK WASHER,3/8"

3шт.

52

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N.F. hex.)

3шт.

53

A34532

CLAMP - pump mtg. brkt.

1шт.

54

L13426

STRAP - mtg. brkt., upper (Tapped)

1шт.

55

L13427

STRAP

- mtg. brkt., lower (Plain)

1шт.

56

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

Belt tension adj. Hex, 5/16"-18 x 2 1/2", G5

1шт.

57

27-145

NUT - lock, bolt (5/16" N.C. hex. jam)

1шт.

58

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Strap Hex, 3/8"-16 x 2 1/4", G5

4шт.

59

92-6

LOCK WASHER,3/8"

4шт.

60

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Bracket Hex, 3/4"-10 x 3", G5

4шт.

61

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

62

25-1012

NUT,3/4"-10, G5

4шт.
