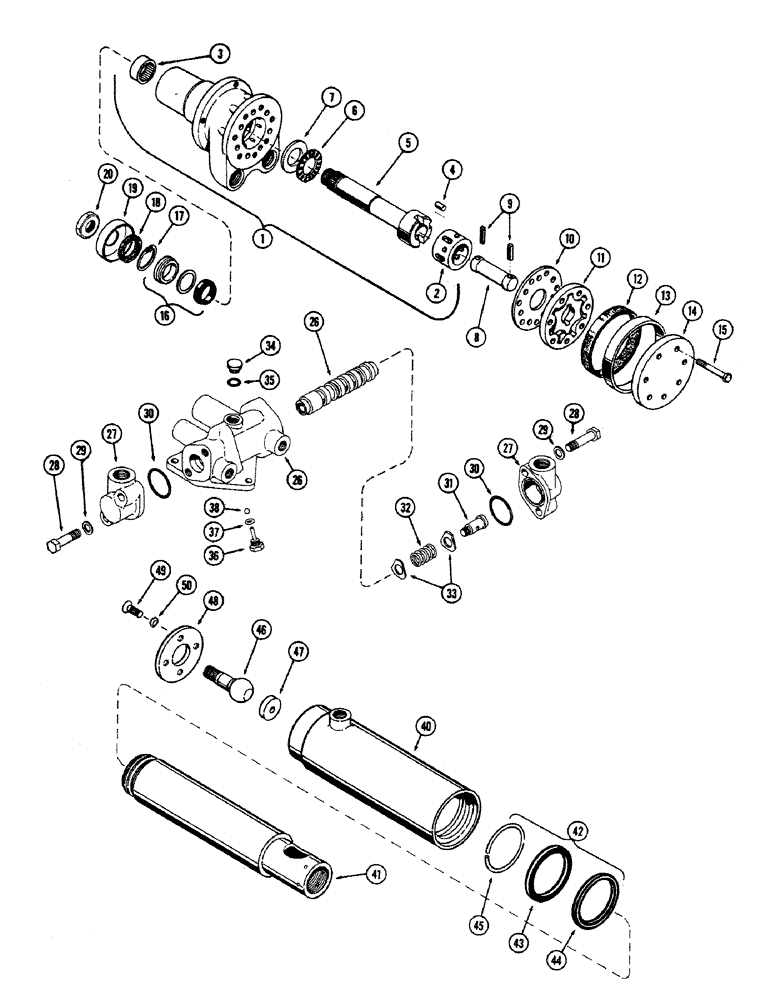

Запчасти Case 680CK (081A) - A35579 CONTROL PUMP, USED PRIOR TO LOADER SER. NO. 9100861

A35579

PUMP

ASSY. - control (Not illust.)

1шт.

1

F82945

BODY

ASSY. - pump

1шт.

2

NSS

NOT SOLD SEPARAT

COMMUTATOR (Order F82945)

1шт.

3

A30588

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 12.7mm W

BEARING - needle

1шт.

4

F19631

PIN

- commutator

1шт.

5

A40735

SHAFT

- coupling

1шт.

6

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - needle, thrust

1шт.

7

F19634

BEARING WASHER

RACE - thrust bearing

1шт.

8

F19635

LINK

- rotor drive

1шт.

9

F19636

PIN

- link

2шт.

10

F19637

SPACER

- rotor

1шт.

11

A35786

STATOR

ROTOR SET

1шт.

12

84286702

RUBBER SEAL

- rotor

1шт.

13

A35787

RETAINER

- rotor seal

1шт.

14

F19641

COVER - end

1шт.

15

F19642

BOLT - end cover (5/16 x 1-3/4" N.C. hex.)

7шт.

16

A40624

SEAL

KIT

1шт.

17

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, thrust washer

1шт.

18

F19645

BUSHING

SEAL - dust (Felt)

1шт.

19

F19644

SEAL

RETAINER - dust seal

1шт.

20

F19646

LOCK NUT,13/16"-20, Thin

NUT - coupling shaft

1шт.

L11825

VALVE ASSY. - control (Not illust.) (Replaces A37980)

1шт.

26

NSS

NOT SOLD SEPARAT

BODY AND SPOOL (Order L11825)

1шт.

27

F19624

CAP

- end

2шт.

28

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

End cap Hex, 3/8"-16 x 2", G5

4шт.

29

F19626

WASHER - (25/64" I.D. x 11/16" O.D.)

4шт.

30

F21003

O-RING,1.237" ID x 1.443" OD

"O" RING - end cap

2шт.

31

F19623

SCREW,3/8" - 24 x 15/16"

- centering

1шт.

32

L30400

SPRING - centering

1шт.

33

F19619

WASHER

- spring retaining

2шт.

34

F83122

PLUG

ASSY. - valve body, top

1шт.

35

F19628

O-RING

"O" RING - plug

1шт.

36

F82943

VALVE

PLUG ASSY. - valve relief

1шт.

37

F19630

O-RING

"O" RING - valve relief plug

1шт.

38

211-7

BALL,1/4" Dia

- valve relief 1/4" Dia

1шт.

A36761

CYLINDER ASSY. - hydraulic (Not illust.)

2шт.

40

NSS

NOT SOLD SEPARAT

BARREL - cyl. body (Order A36761)

1шт.

41

A40372

ROD

- piston

1шт.

42

A40376

KIT

SEAL KIT - cylinder

1шт.

43

A40368

X

WIPER - oil, frt. (2-1/8 x 2-1/2 x 3/16")

1шт.

44

A40371

CUPEL

SEAL - oil, rear (2-1/8 x 2-1/2 x 3/8")

1шт.

45

A40369

RING, SNAP

RING - snap, piston rod ret.

1шт.

46

A40374

STUD

- ball

1шт.

47

A40375

SEAT

- ball stud

1шт.

48

A40373

PLATE

- ball stud retaining

1шт.

49

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- plate (1/4 x 5/8" N.C., flat hd. Phillips)

4шт.

50

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, Ext Csk Tooth, 1/4"

4шт.
