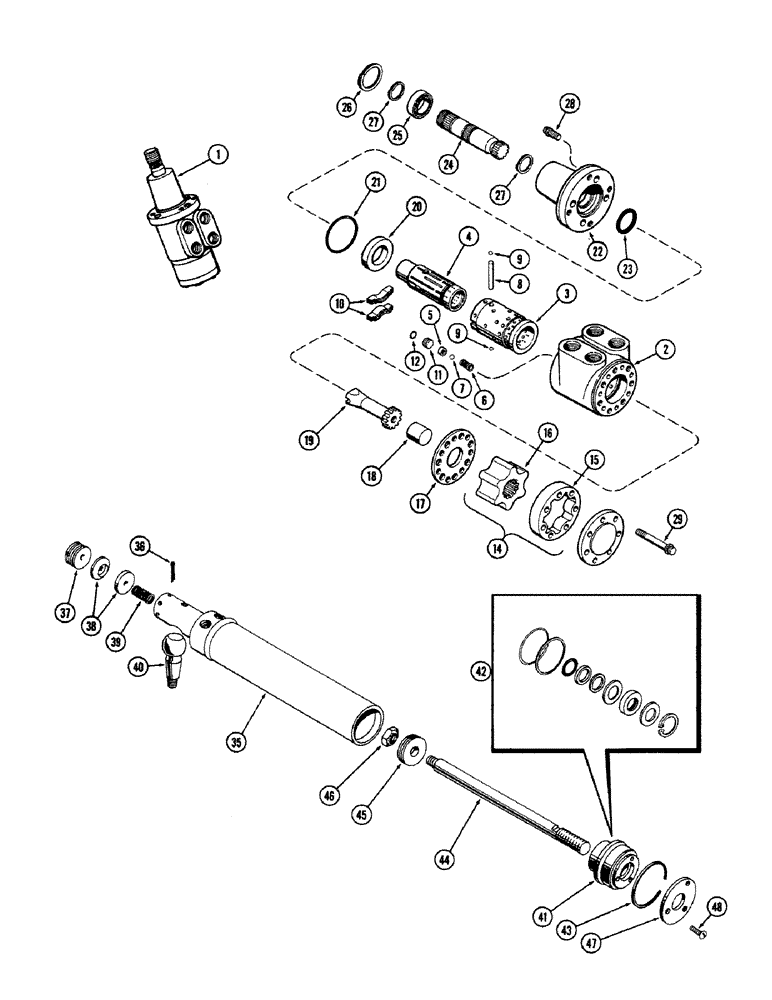

Запчасти Case 680CK (080) - L13405 CONTROL PUMP, 1ST USED LOADER SER. NO. 9100861

1

L13405

PUMP, HYDRAULIC

PUMP ASSY. - control

1шт.

L30884

CONTROL

ASSY.

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

3

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

5

L30891

SEAT

- check

1шт.

6

L30890

VALVE SPRING

SPRING - check

1шт.

7

211-7

BALL,1/4" Dia

- check 1/4" Dia

1шт.

8

L30888

PIN

- centering

1шт.

9

L30894

PIN

DISC - centering pin

2шт.

10

L30889

SPRING

- centering

6шт.

11

L30892

PLUG

- seal, housing

1шт.

12

L30893

O-RING,1/16" Thk x 5/16" ID

SEAL - housing plug, 7/16 x 5/16 x 1/16 in

1шт.

13

A72024

CAP

- end

1шт.

14

L30874

GEAR WHEEL

GEAR SET - control

1шт.

15

NSS

NOT SOLD SEPARAT

RING - gear

1шт.

16

NSS

NOT SOLD SEPARAT

STAR - gear

1шт.

17

A72026

PLATE

- spacer

1шт.

18

L30877

SPACER

- control

1шт.

19

L30878

DRIVE SHAFT

DRIVER - control end

1шт.

20

L30883

BUSHING

- cap locating

1шт.

21

A17528

O-RING,1.737" ID x 1.943" OD x 0.103"

"O" RING - bushing (1-3/4 x 1-15/16 x 3/32")

1шт.

22

L30879

STEERING COLUMN

COLUMN - control

1шт.

23

A72029

RING

QUAD RING - control column (1-1/16 x 1-5/16 x 1/8")

1шт.

24

L30880

SHAFT

- control

1шт.

25

L30881

BALL BEARING,22.4mm ID x 35.8mm OD x 9.6mm W

- control column

1шт.

26

L30882

SNAP RING,#137, 1.461", Int, Spiral

RETAINER - beating, outer, large

1шт.

27

F53335

RING, SNAP

RETAINER - bearing, inner & outer, small

2шт.

28

166-23

12 PT SCREW,Flg, 5/16" - 18 x 5/8", Gr 8

BOLT - column to hsg. (5/16 x 5/8" N.F., 12 pt. hd.)

4шт.

29

166-530

BOLT - end cap to hsg. (5/16 x 2-1/4" N.F. 12 pt. hd.)

7шт.

A55158

CYLINDER BLOCK

CYLINDER ASSY. - hydraulic

2шт.

35

NSS

NOT SOLD SEPARAT

BODY - cylinder

1шт.

37

A35890

PLUG

- adjusting

1шт.

38

A35889

SEAT

- ball stud

2шт.

39

A35888

VALVE SPRING

SPRING - tension, ball stud seat

2шт.

40

A35870

STUD

- ball

1шт.

41

A24973

GLAND

ASSY. - complete

1шт.

42

A36396

SEAL KIT

SEAL KIT - gland repair

1шт.

43

A35885

RING

- snap, gland retaining

1шт.

44

A55955

ROD

- piston

1шт.

45

A56226

PISTON ASSY.

- w/rings

1шт.

46

230-4616

LOCK NUT,3/8"-24, GA

NUT - piston ret. (3/8" N.F. hex., Gripco)

1шт.

47

A35887

PLATE ASSY.

PLATE - cylinder end

1шт.

48

173-227

SCREW,Sl Rnd Hd, #10 - 24 x 1/2", SST

- end plate (#10 x 1/2" N.C., rd. hd.)

3шт.

36

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.
