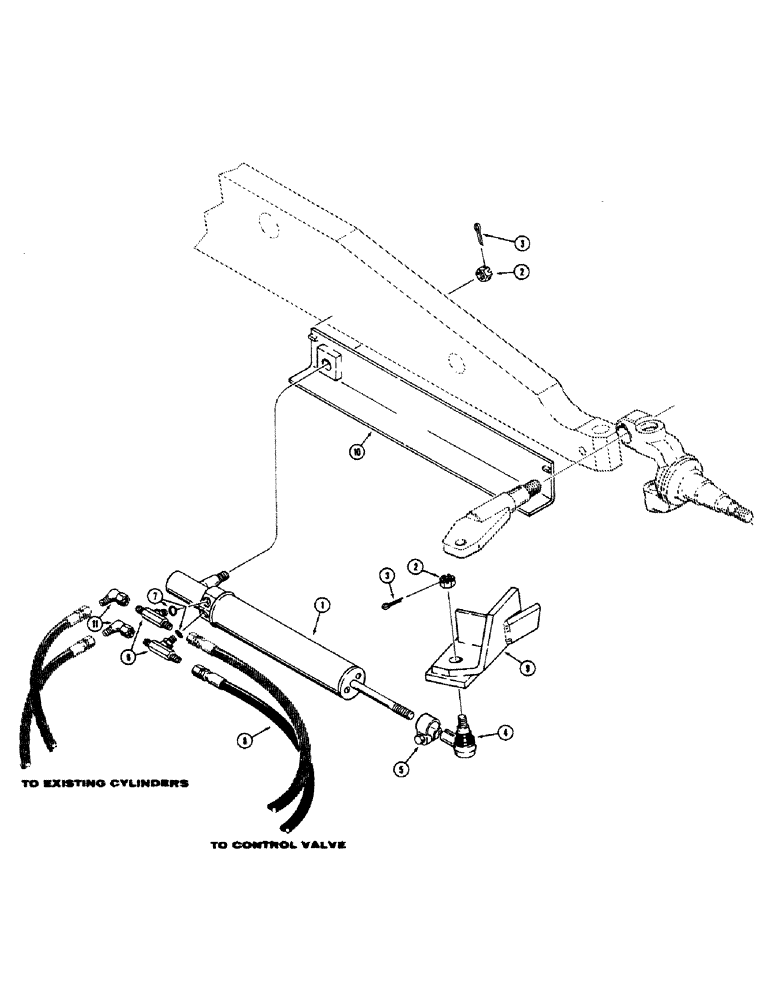

Запчасти Case 680CK (079C) - * POWER STEERING MODIFICATION PARTS, PRIOR TO LOADER SERIAL NUMBER 9100861

1

A55158

CYLINDER BLOCK

CYLINDER - hydraulic, power steering (see figure 80)

1шт.

2

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex., slotted (5/8" - 18 NF)

2шт.

3

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

4

L40710

BALL

JOINT - cylinder end

1шт.

5

A27080

CLAMP

- ball, Serial Range: joint-cylinder

1шт.

6

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- adjustable, male

2шт.

7

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal

1шт.

8

L10896

HOSE - steering cylinder

1шт.

9

L16374

BRACKET - steering arm

1шт.

10

L16381

BRACKET - cylinder mounting

1шт.

11

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- adjusting, 90 degrees

2шт.
