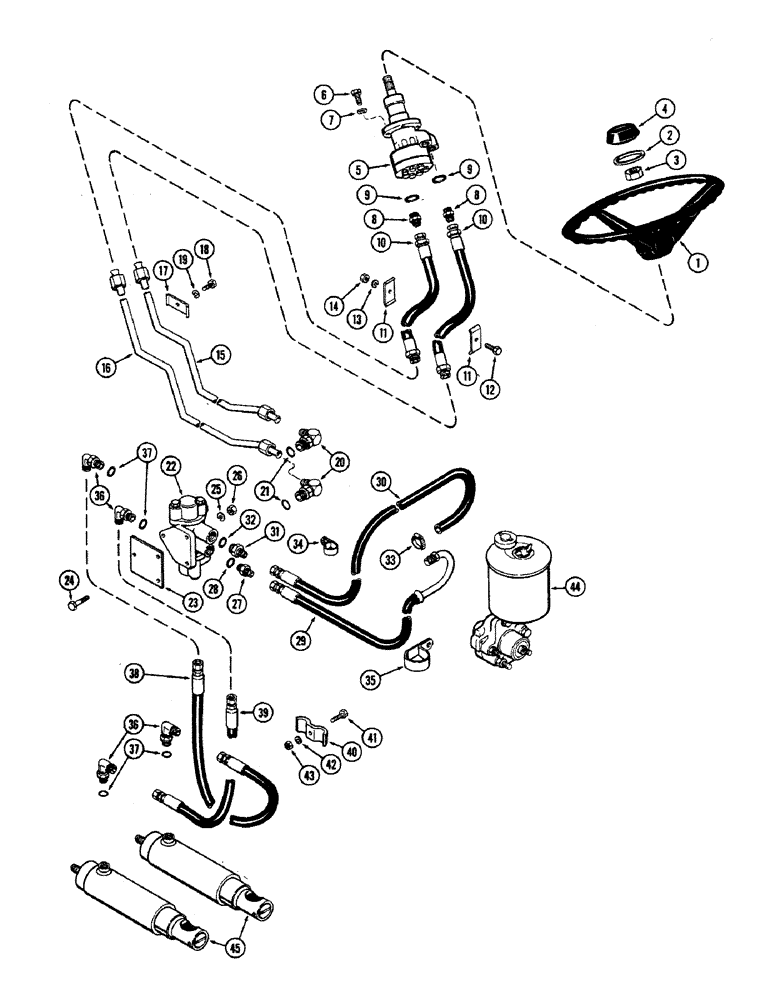

Запчасти Case 680CK (079A) - STEERING LINKAGE & HYDRAULICS, USED PRIOR TO LOADER SER. NO. 9100861

1

A37261

X

WHEEL - steering (15" O.D.)

1шт.

2

A70392

RING

- retaining, medallion

1шт.

3

F19646

LOCK NUT,13/16"-20, Thin

NUT - strg. wheel to manual pump

1шт.

4

C10569

MEDALLION - steering wheel

1шт.

5

A35579

PUMP

ASSY. - control (See figure 81A)

1шт.

6

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

7

92-5

LOCK WASHER,5/16"

3шт.

8

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER Assy - steering

2шт.

10

A36162

TUBE

HOSE - manual, Serial Range: pump-tube

2шт.

10

A14078

CLAMP

- hose

2шт.

12

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

1шт.

15

L10890

TUBE - L.H., man. pump, Serial Range: hose-valve

1шт.

16

L10891

TUBE - R.H., man. pump hose to valve 0.5" OD

1шт.

17

A14078

CLAMP

- tube

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

19

92-6

LOCK WASHER,3/8"

1шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy, Pump lines 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

22

L11825

VALVE ASSY. - control (See figure 81A) (Replaces A37980)

1шт.

23

L11640

PLATE - valve mtg. spacer

1шт.

24

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex.)

3шт.

25

92-6

LOCK WASHER,3/8"

3шт.

26

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

3шт.

27

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR ASSY, hose (at valve)

1шт.

28

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, connector

1шт.

29

L10892

HOSE - pressure, Serial Range: valve-pump

1шт.

30

L10893

HOSE - return, Serial Range: valve-pump

1шт.

31

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

FITTING ASSY. - adapter (Replaces L10894)

1шт.

33

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose (9/16" to 1-1/16")

1шт.

34

L12228

CLIP - hose, to final filter (Replaces 49855)

1шт.

35

R13931

CLAMP

CLIP -, Serial Range: hose,-A34532

1шт.

36

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSY. - hoses (90 degrees)

4шт.

37

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

38

L10895

HOSE

- valve to L.H. cyl.

1шт.

39

L10896

HOSE - valve to R.H. cyl

1шт.

40

R15257

CLAMP

- hose

2шт.

41

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- (5/16 x 1-1/4" N.C. hex.)

1шт.

42

92-5

LOCK WASHER,5/16"

1шт.

43

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

1шт.

44

A57145

PUMP - power steering (See figure 83A)

1шт.

45

A36761

CYLINDER ASSY. - hydraulic (See figure 81A)

2шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - adapter (41/64 x 53/64 x 3/32")

2шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - elbow (41/64 x 53/64 x 3/32")

1шт.

32

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - fitting (41/64 x 53/64 x 3/32")

1шт.
