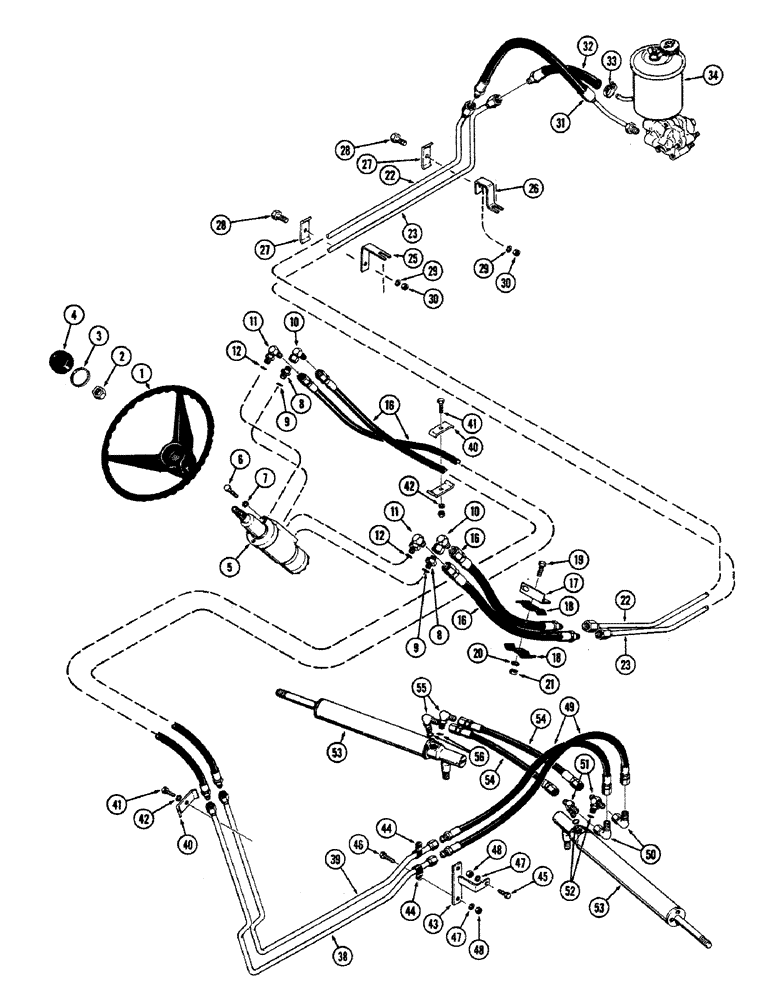

Запчасти Case 680CK (078) - STEERING LINKAGE AND HYDRAULICS, 1ST USED LOADER SER. NO. 9100861

1

A37261

X

WHEEL - steering

1шт.

2

F19646

LOCK NUT,13/16"-20, Thin

NUT - steering wheel retaining

1шт.

3

A70392

RING

- retaining, medallion

1шт.

4

C10569

MEDALLION - steering wheel

1шт.

5

L13405

PUMP, HYDRAULIC

PUMP ASSY. - control (See figure 80)

1шт.

6

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- pump (3/8 x 1-1/2" N.C. hex.)

2шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER Assy

2шт.

10

218-981

X

ELBOW - 90 degrees swivel

2шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy, Adjustable 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

16

A36162

TUBE

HOSE -, Serial Range: pump-tubes

4шт.

17

L13407

BRACKET - pump hose clamp

1шт.

18

R15257

CLAMP

- pump hose

2шт.

19

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- clamp to brkt. (5/16 x 1-1/2" N.C. hex)

1шт.

20

92-5

LOCK WASHER,5/16"

1шт.

21

9635082

NUT,5/16" - 18, Gr 5

(5/16" N.C. hex.)

1шт.

22

L13416

TUBE - pressure 0.5" OD

1шт.

23

L13417

TUBE - return 0.5" OD

1шт.

25

L13409

BRACKET - pump tube clamp, rear

1шт.

26

L13406

BRACKET - pump tube clamp, front

1шт.

27

A14078

CLAMP

- pump tubes

2шт.

28

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- clamp to brkt. (5/16 x 1-3/4" N.C. hex.)

2шт.

29

92-5

LOCK WASHER,5/16"

2шт.

30

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

2шт.

31

13414

BELT,0.66" W x 138.6" L

Pressure

1шт.

32

L13411

HOSE - return

1шт.

33

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - return hose (9/16" to 1-1/16")

1шт.

34

L13412

PUMP ASSY. - power steering (See figure 82)

1шт.

38

L10890

TUBE - power str. cyl.

1шт.

39

L10891

TUBE - power str. cyl 0.5" OD

1шт.

40

A14078

CLAMP

- tubes, rear

1шт.

41

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Clamp Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

42

92-6

LOCK WASHER,3/8"

1шт.

43

L13413

BRACKET - type clamp, front

1шт.

44

49845

CLAMP

- tubes

2шт.

45

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Bracket Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

46

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Clamp Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

47

92-5

LOCK WASHER,5/16"

3шт.

48

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

3шт.

49

L13415

HOSE,0.38" ID x 17.25", SAE 100R1

ASSY, , Cylinder to Tube 0.38" ID x 17.25", SAE 100R1

2шт.

50

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degrees

2шт.

51

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSY.

2шт.

52

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

53

A55158

CYLINDER BLOCK

CYLINDER ASSY. - power str. (See figure 80)

2шт.

54

L12347

PIPE

HOSE - str. cyl. cross-over

2шт.

55

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSY. - 90 degrees

2шт.

56

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (41/64 x 53/64 x 3/32")

1шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING (41/64 x 53/64 x 3/32")

1шт.
