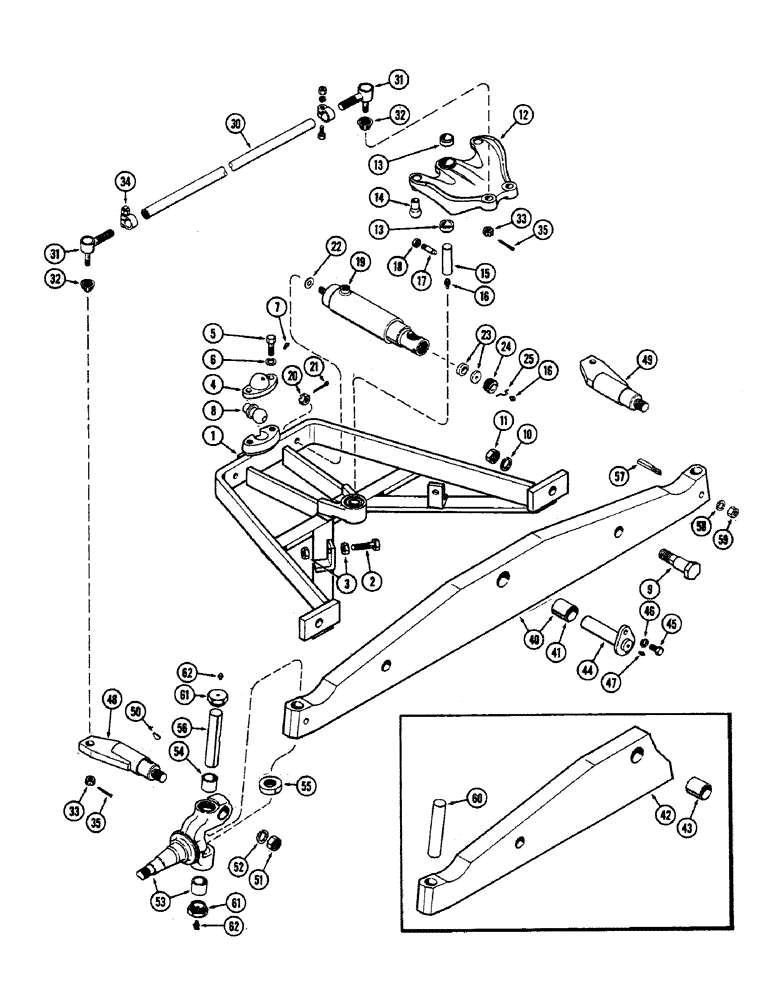

Запчасти Case 680CK (077A) - FRONT AXLE & TIE RODS, USED PRIOR TO LOADER SER. NO. 9100861

1

L10877

ROD ASSY. - radius

1шт.

2

114-611

BOLT - (5/8 x 2-1/2" N.F. hex.)

2шт.

3

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - (5/8" N.F. jam)

4шт.

4

L10887

CAP - radius rod ball socket

1шт.

5

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

2шт.

6

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

7

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

8

A27445

BALL

- pivot, radius rod, Serial Range: (Welded-chassis)

1шт.

9

A26659

STEP BOLT

BOLT - radius rod, Serial Range: mounting-axle

2шт.

10

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

11

25-1116

NUT,1"-14, G5

- (1" N.F. hex.)

2шт.

12

A38144

ARM

ASSY. - center (Replaces A36642)

1шт.

13

A36645

BUSHING,25.25mm ID x 34.98mm OD x 16.13mm L

- center arm

2шт.

14

A38145

BALL

- steering arm

2шт.

15

A36648

PIN

- pivot, center arm

1шт.

16

216-14

FITTING - tube (1/4" drive, straight)

1шт.

17

178-260

SET SCREW,Hex Soc, 3/8"-16 x 1 1/4"

SCREW - set (3/8-16 x 1-1/4" sckt. hd.)

1шт.

18

25-146

JAM NUT,Jam, 3/8"-16, G5

- (3/8" N.C. jam)

1шт.

19

A36761

CYLINDER ASSY. - hydraulic (See figure 81A)

2шт.

20

25-139

SLOTTED NUT,9/16"-18, G5

NUT - (9/16"-18 slotted hex.)

2шт.

21

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

22

195-37

WASHER,9/16"

- (19/32 x 1-3/16 x 3/32")

2шт.

23

A26629

BEARING

- ball stud

4шт.

24

A38164

ADJUSTMENT SCREW

SCREW - ball stud adj. (Takes 1/8" grease fitting)

2шт.

24

A36762

X

SCREW - ball stud adj. (Takes 1/4" grease fitting) (Order A38164 & 219-1)

2шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.) (Used w/A38164 screw)

2шт.

25

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease (1/4" str. drive) (Used w/A36762 screw)

2шт.

26

A36763

ELECTRICAL WIRE

WIRE - adj. screw lock

2шт.

30

L10889

GEAR WHEEL

ROD - tie

2шт.

31

A28419

END ASSY.

- tie rod

4шт.

32

G46043

COVER

- dust, tie rod end

1шт.

33

25-139

SLOTTED NUT,9/16"-18, G5

NUT - tie rod ends (9/16" N.F., sltd.)

1шт.

34

A27080

CLAMP

ASSY. - tie rod tube

4шт.

35

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

40

L13397

AXLE ASSY. - front (1st used ser. no. 9100504)

1шт.

41

L11411

BUSHING

- pivot pin, front axle

1шт.

42

L11377

X

AXLE ASSY. - front (Used prior to ser. no. 9100504)

1шт.

43

L11411

BUSHING

- pivot pin, front axle

1шт.

44

L11378

PIN ASSY. - pivot, front axle

1шт.

45

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

- (1/4 x 1" N.F. hex.)

1шт.

46

92-8

LOCK WASHER,1/2"

1шт.

47

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

48

L11376

ARM ASSY. - steering, R.H.

1шт.

49

L11373

ARM

ASSY. - steering, L.H.

1шт.

50

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

KEY - (#8 Woodruff)

2шт.

51

25-1116

NUT,1"-14, G5

- (1" N.F. hex.)

2шт.

52

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

53

L11838

SPINDLE ASSY. - steering

2шт.

54

L11836

X

BUSHING - king pin spindle

2шт.

55

A26658

THRUST BEARING,1.26" ID x 2.1875" OD x 0.63"

BEARING - thrust, front axle spindle

2шт.

56

L12264

AXLE PIN

KING PIN - (Used w/13397 axle) (See ref. 40)

2шт.

57

A26490

LOCK ASSY

LOCK - king pin (Used w/L12264 king pin) (See ref. 56)

2шт.

58

92-8

LOCK WASHER,1/2"

2шт.

59

25-118

NUT,1/2"-20, G5

- (1/2" N.F. hex.)

2шт.

60

L11837

KING PIN - (Used w/L11377 axle) (See ref. 42)

2шт.

61

A27825

PLUG

- steering spindle

4шт.

62

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - lube (1/8" x 45 degress)

4шт.
