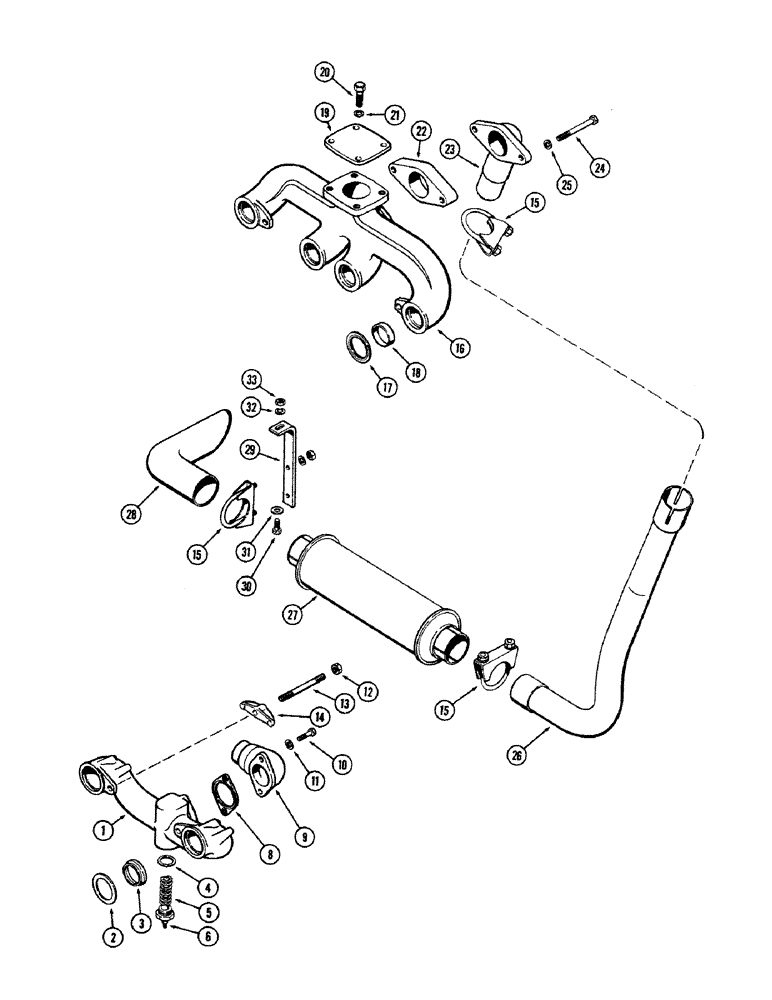

Запчасти Case 680CK (010) - MANIFOLDS AND MUFFLER, (267) DIESEL ENGINE

1

A21005

MANIFOLD - intake

1шт.

2

A11888

MANIFOLD GASKET

- manifold, intake

2шт.

3

A21383

CAP

FERRULE - manifold, intake

2шт.

4

A20916

MANIFOLD GASKET

GASKET - manifold heater

1шт.

5

A37775

HEATER

ASSY - manifold, intake

1шт.

6

129-503

NUT,1/4"-20, Brass

1шт.

8

A21055

MANIFOLD GASKET

- elbow, int. manifold

1шт.

9

A21007

ELBOW - manifold, intake

1шт.

10

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

25-117

NUT,7/16"-20, G5

- (7/16" N. F. hex.)

4шт.

13

A27911

STUD

- manifold (7/16" N. C. /N. F. x 6")

4шт.

14

A24368

CLAMP

- retainer, int. & exh. manifold

4шт.

15

A13240

CLAMP,2-5/8" ID

- exhaust pipe

3шт.

16

A20385

MANIFOLD - exhaust

1шт.

17

A11889

GASKET

- manifold, exhaust

4шт.

18

A21648

CAP

FERRULE - manifold, exhaust

4шт.

19

A20387

COVER - manifold, exhaust

1шт.

20

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

21

92-8

LOCK WASHER,1/2"

4шт.

22

A17489

SPACER - exhaust elbow

1шт.

23

A17488

ELBOW

- exhaust

1шт.

24

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- (1/2" x 2-1/2" N. C. hex.)

2шт.

25

92-8

LOCK WASHER,1/2"

2шт.

26

L13642

PIPE

- exhaust (Replaces L10794) (Replaces L12271)

1шт.

27

A15163

MUFFLER

- exhaust

1шт.

28

L10796

CABLE EXTENSION

EXTENSION - muffler

1шт.

REF#28 REPLACED BY L13824 & 74081 8/30/96

1шт.

29

L12273

STRAP - muffler mtg. (Replaces L10795)

1шт.

30

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

31

195-21

WASHER,5/16"

- (11/32 x 11/16 x 1/16")

1шт.

32

92-5

LOCK WASHER,5/16"

1шт.

33

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N. C. hex.)

1шт.
