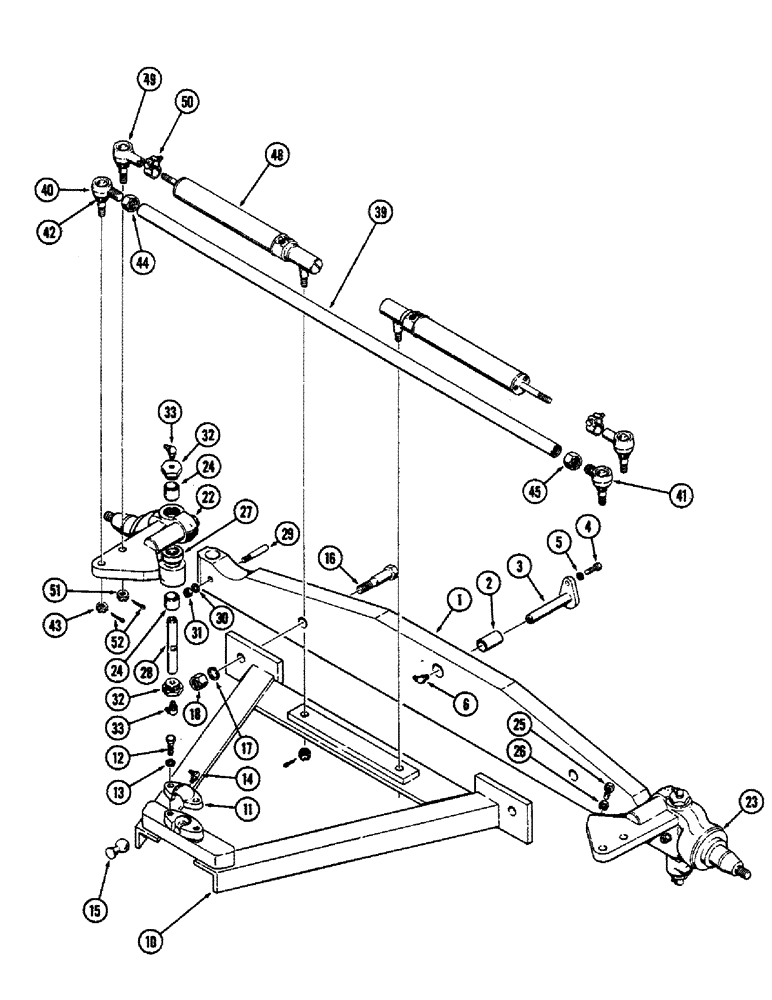

Запчасти Case 680CK (076) - FRONT AXLE & TIE RODS, 1ST USED LOADER SER. NO. 9100861

1

L13397

AXLE ASSY. - front

1шт.

2

L11411

BUSHING

- pivot pin

1шт.

3

L11378

PIN - pivot, front axle

1шт.

4

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

- (1/2 x 1" N.F. hex)

1шт.

5

92-8

LOCK WASHER,1/2"

1шт.

6

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

10

L12345

ROD - radius

1шт.

11

L10887

CAP - radius rod ball socket

1шт.

12

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

2шт.

13

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

14

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

15

A27445

BALL

- radius rod pivot, Serial Range: (Welded-chassis)

1шт.

16

A26659

STEP BOLT

BOLT - radius, Serial Range: rod-axle

2шт.

17

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

18

25-1116

NUT,1"-14, G5

- (1" N.F. hex.)

2шт.

22

L12343

SPINDLE

ASSY. - w/steering arm. right hand (Incl. item 24)

1шт.

23

L12344

SPINDLE

ASSY. - w/steering arm, left hand

1шт.

24

L11836

X

BUSHING - king pin

2шт.

25

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Stop Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

26

425-1410

JAM NUT,Jam, 5/8"-11, G5

- lock, stop bolt (5/8" N.C. jam)

2шт.

27

A26658

THRUST BEARING,1.26" ID x 2.1875" OD x 0.63"

BEARING - thrust, front axle spindle

2шт.

28

L12264

AXLE PIN

KING PIN

2шт.

29

A26490

LOCK ASSY

LOCK - king pin

2шт.

30

92-8

LOCK WASHER,1/2"

2шт.

31

25-118

NUT,1/2"-20, G5

- king pin lock (1/2" N.F. hex.)

2шт.

32

A27825

PLUG

- steering spindle

4шт.

33

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease (1/8" P.T., 90 degrees)

4шт.

39

L13422

TUBE - tie rod 1.25" OD x 52.31" L

1шт.

40

L13421

BALL

END ASSY. - tie rod, w/right hand thread (Incl items 42 & 43)

1шт.

41

L13420

BALL JOINT

END ASSY. - tie rod, w/left hand thread (Incl. items 42 & 43)

1шт.

42

A41515

SEAL

- dust, tie rod end (Rubber)

1шт.

43

129-283

NUT

- tie rod end (5/8" N.F. hex., std.)

1шт.

44

L13419

NUT

- lock (1"-16 right hand thread)

1шт.

45

L13418

X

NUT - lock (1"-16 left hand thread)

1шт.

48

A55158

CYLINDER BLOCK

CYLINDER ASSY. - hydraulic (See figure 80)

2шт.

49

A17137

BALL JOINT

END ASSY. - cylinder

2шт.

50

A27080

CLAMP

ASSY. - cylinder

2шт.

51

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - ball stud (5/8" N.F. hex., sltd.)

2шт.

52

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.
