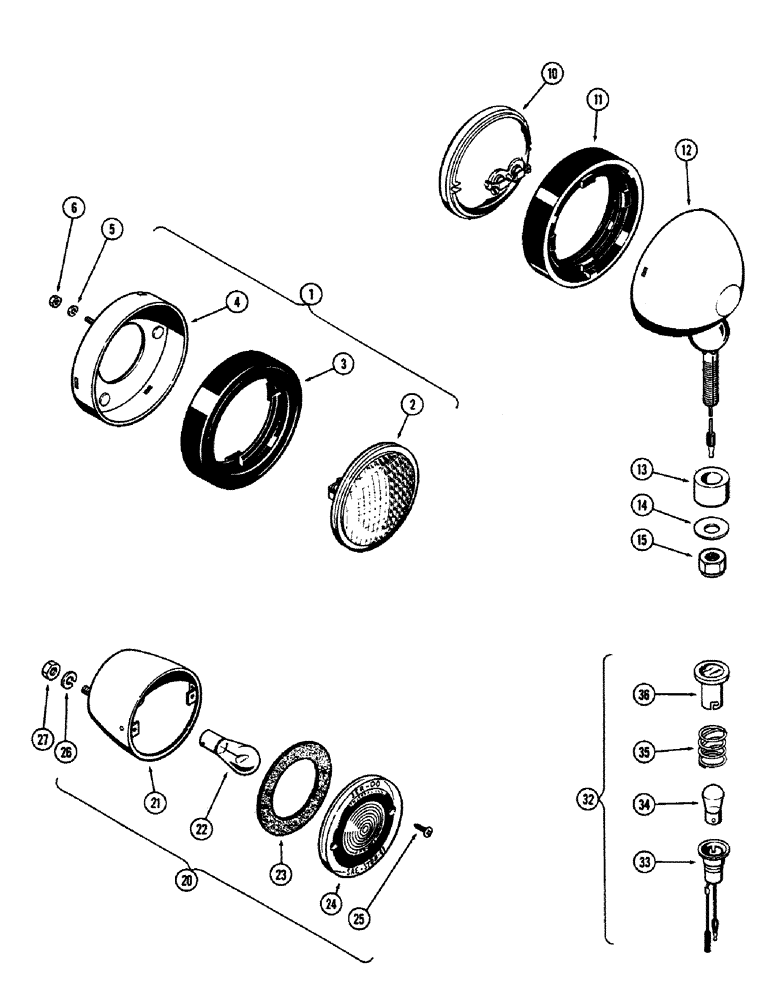

Запчасти Case 680CK (074) - LIGHTING EQUIPMENT, D30243 HEAD LAMP, L11357 REAR LAMP

1

D30243

LAMP

ASSY. - front (Replaces L11354)

2шт.

2

D33182

LAMP

BULB - sealed beam (Replaces L30511)

1шт.

3

A25213

RETAINER

- lamp (Use w/guide lamp only)

1шт.

3

D31441

RETAINER

- lamp (Use w/hobbs lamp only)

1шт.

4

NSS

NOT SOLD SEPARAT

FRAME - lamp mounting

1шт.

5

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

6

25-104

NUT,1/4"-20, G5

4шт.

L11357

LIGHT

LAMP ASSY. - rear (Not illust.)

2шт.

10

L30464

BULB

- sealed, 12 volts-35 watts

1шт.

11

A25213

RETAINER

- bulb

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - lamp (Order L11357)

1шт.

13

D37048

BUSHING

- pilot

1шт.

14

D37049

WASHER

- mounting (Dished)

1шт.

15

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - elastic hex. (1/2-20" N.F.)

1шт.

20

L10741

STOP LIGHT

LAMP ASSY. - stop & tail

2шт.

21

NSS

NOT SOLD SEPARAT

BODY - lamp (Order L10741)

1шт.

22

R11078

LAMP

BULB - lamp, 12 volt

1шт.

23

A40862

GASKET - lamp

1шт.

24

L30427

X

LENS - lamp

1шт.

25

187-1020

SCREW,Cross Hd, #8 x 3/4"

- (#8 Phillip truss hd.)

2шт.

26

92-6

LOCK WASHER,3/8"

2шт.

27

25-106

NUT,3/8"-16, G5

- (3/8" N. C. hex.)

2шт.

32

L11344

WARNING LIGHT

LAMP ASSY. - indicator, engine trouble

1шт.

33

NSS

NOT SOLD SEPARAT

SOCKET - lamp base (Order L11344)

1шт.

34

45490

LIGHT

BULB - (15 C. P., red)

1шт.

35

L30505

VALVE SPRING

SPRING - lamp

1шт.

36

L30504

LENS

- (Clear glass)

1шт.
