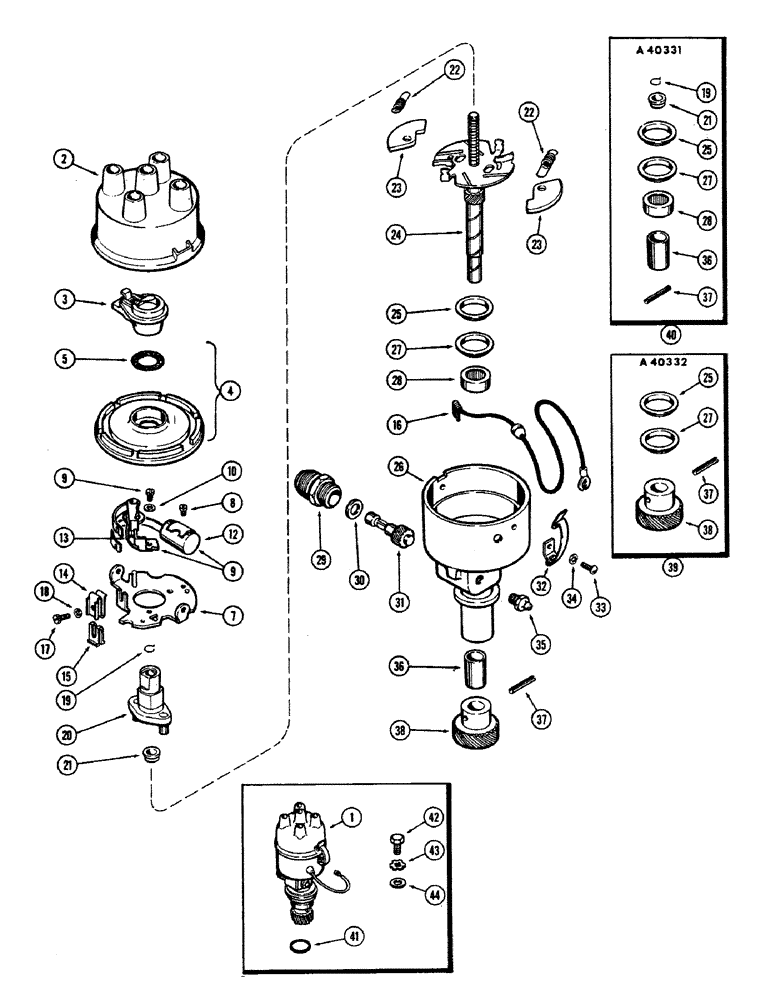

Запчасти Case 680CK (072) - A24508 DISTRIBUTOR, (251) SPARK IGNITION ENGINE, 1ST USED ENGINE SN. 2173890

1

A24508

DISTRIBUTOR

ASSY. (Prestolite or Autolite #4402)

1шт.

2

A24564

CAP

- distributor

1шт.

3

A24566

ROTOR

- distributor

1шт.

4

A24763

PLATE

ASSY. - seal

1шт.

5

A24764

WASHER

SEAL - dust (Felt)

1шт.

A40330

PLATE

ASSY. - breaker

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE - breaker

1шт.

8

169-56

SCREW - condenser (#6-32 x 3/16" fill. hd.)

1шт.

9

A24776

SCREW,Locking, #8 - 32 x 3/16"

- points (#8-32 x 3/16" fill. hd.)

1шт.

10

195-509

WASHER,3/16"

- (#8 flat)

1шт.

A40930

KIT

POINT & CONDENSER KIT

1шт.

12

NSS

NOT SOLD SEPARAT

CONDENSER (Order A40930)

1шт.

13

NSS

NOT SOLD SEPARAT

POINT SET (Order A40930)

1шт.

14

NSS

NOT SOLD SEPARAT

CLIP - retaining, insulator & lead

1шт.

15

NSS

NOT SOLD SEPARAT

INSULATOR - clamp & lead

1шт.

16

A24772

HARNESS

LEAD - primary wire

1шт.

17

A24775

SCREW,0.138"-32 x 1/32"

- clip (#6-32 x 5/8" hex.)

1шт.

18

195-506

WASHER,#6

- ( flat) #6

1шт.

19

NSS

NOT SOLD SEPARAT

RING - snap. cam retaining (Order ref. 40)

1шт.

20

A24762

PLATE - cam & stop

1шт.

21

NSS

NOT SOLD SEPARAT

SPACER - cam (Order ref. 40)

1шт.

22

A24778

SPRING KIT

SPRING SET - weight

1шт.

23

A24754

WEIGHT - governor

2шт.

24

A24768

DRIVE SHAFT

SHAFT - distributor drive

1шт.

25

NSS

NOT SOLD SEPARAT

WASHER - drive shaft, upper (Order ref. 39 or 40)

1шт.

26

NSS

NOT SOLD SEPARAT

BASE - distributor body (Order A24508)

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - drive shaft, lower (Order ref. 39 or 40)

1шт.

28

NSS

NOT SOLD SEPARAT

BEARING - needle (Order ref. 40)

1шт.

29

A24781

HOUSING ASSY. - tachometer drive, w/bushing

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER - thrust, tach. drive (Order ref. 40)

1шт.

31

A24761

SHAFT

- tach. drive, w/gear

1шт.

32

A40329

SPRING

CLAMP ASSY. - distributor cap

2шт.

33

A24779

SCREW - clamp (#8-32 x 15/16" rd. hd.)

1шт.

34

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

1шт.

35

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease (1/4"-28 str.)

1шт.

36

NSS

NOT SOLD SEPARAT

BEARING - housing (Bronze) (Order ref. 40)

1шт.

37

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, , Gear 1/8" x 15/16", Slotted

1шт.

38

NSS

NOT SOLD SEPARAT

GEAR - drive shaft (Order ref. 39)

1шт.

39

A40332

GEAR

REPAIR KIT (Gear & washers)

1шт.

40

A40331

BEARING

REPAIR KIT (Bearing & washers)

1шт.

41

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O"RING - distributor (1-1/8 x 1-3/8 x 1/8")

1шт.

42

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Distributor clamp Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

43

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - (3/8" int. skpf.)

2шт.

44

95-6

WASHER,3/8"

(7/16 x 1 x 5/64")

2шт.
