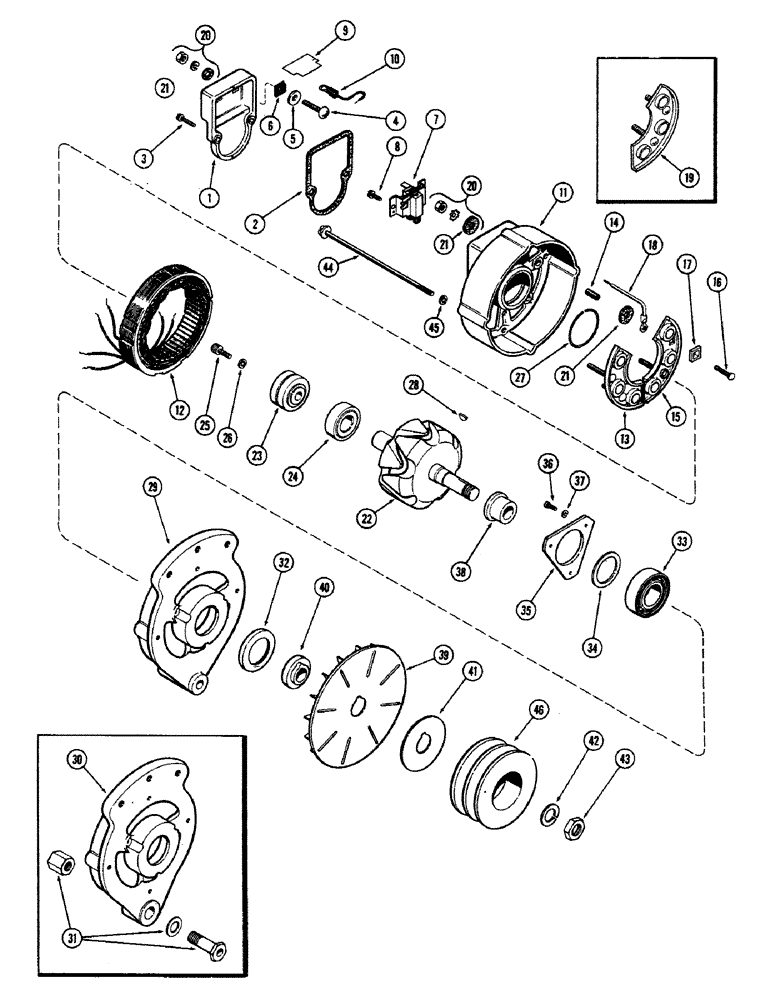

Запчасти Case 680CK (066) - ALTERNATOR

A41340

ALTERNATOR

ALTERNATOR ASSY. - (55 amp.) (Motorola #MH12N-601)

1шт.

A167152

ALTERNATOR

ALTERNATOR - 24 Volt 40 AMP

1шт.

104260A1R

REMAN-ALTERNATOR

Remanufactured 24 VOLT, 40 AMP Alternator

1шт.

104260A1C

CORE-ALTERNATOR

Return Number, 24 VOLT, 40 AMP ALTERNATOR

1шт.

A187916

ALTERNATOR,24V, 45A

Alternator, 24V, 65 Amp

1шт.

A187916GV

ALTERNATOR

Value

1шт.

AR187916

REMAN-ALTERNATOR

45A 24V

1шт.

AC187916

CORE-ALTERNATOR

Return Number

1шт.

1

A41435

COVER ASSY

COVER - rear hsg. (Replaces A41043)

1шт.

2

A41341

GASKET

GASKET -, Serial Range: cover-body

1шт.

3

187-482

SPARE PART SCREW - (#8 x 3/4" hex. hd., self-tapping)

2шт.

4

A41036

SCREW

BOLT - field wire (#10-24 rd. hd.)

1шт.

5

G49045

WASHER

WASHER - (17/64 x 39/64" x 16 ga.)

1шт.

6

A41041

INSULATOR

INSULATOR - alt. brush

1шт.

7

A41048

BRUSH, COMMUTATOR

BRUSH HOLDER ASSY. - brush

1шт.

8

187-480

SCREW,Hex Hd, #8 x 1/2"

SCREW - (#8 x 1/2" hex. hd., self-tapping)

2шт.

9

A41042

INSULATOR

INULATOR - alt. brush, shunt lead

1шт.

10

A41046

ELECTRICAL WIRE

WIRE CABLE - internal field

1шт.

11

A41045

COVER

HOUSING - rear

1шт.

12

A41327

ARMATURE

STATOR ASSY - alternator

1шт.

13

A41056

DIODE

DIODE ASSY. - negative, black

1шт.

14

A41040

INSULATOR

INSULATOR - nylon (13/4 x 17/64 x 68") (Cut as req.)

2шт.

15

A41438

DIODE

DIODE ASSY. - positive, red, w/1 stud

1шт.

16

A41436

SCREW

STUD - rectifier ring (Used w/A41438 diode)

1шт.

17

A41041

INSULATOR

INSULATOR - rectifier stud

1шт.

18

A41432

CABLE PULLING GRIP

CABLE - phase tap (Used w/A41438 diode)

1шт.

19

A41055

X

DIODE ASSY. - positive, red, w/2 studs (Order 1-A41438, 1-A41436, 1-A41041 & 1-A41432)

1шт.

20

A41060

LOCK NUT

LOCKNUT PACKAGE

1шт.

REF#20 THE LOCKNUT,WITH WASHER WELDED TO IT,SEVEN REQUIRED. 8/30/96

1шт.

21

A41038

WASHER

WASHER - (13/64 x 3/4 x 1/16")

7шт.

22

A41033

IMPELLER

ROTOR ASSY. - atlernator

1шт.

23

A41032

SLIP RING

RING - slip

1шт.

24

A41439

BEARING

BEARING - sealed (21/32 x 1-37/64 x 15/32")

1шт.

25

163-4

SCREW,Hex, #10 - 32 x 5/8"

SCREW - (#10-5/8" socket hd., cap)

1шт.

26

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

27

A41049

RUBBER SEAL

RETAINER - rear bearing

1шт.

28

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, #5, 1/8" x 5/8", HT

1шт.

29

A41437

HOUSING

HOUSING - front, w/adapter

1шт.

30

A41044

X

HOUSING - front (Requires adapter) (Order A41437)

1шт.

31

A41059

ADAPTER

ADAPTER - hsg. mtg. (Used w/A414044) (Order A41437)

1шт.

32

A41047

SEAL ASSY.

SEAL - bearing, front hsg.

1шт.

33

A41054

X

BEARING - sealed, front (63/64 x 2-3/64 x 19/32")

1шт.

34

A41039

RETAINER

WASHER - (1-1/4 x 1-5/8 x 3/32")

1шт.

35

A41050

SPARE PART RETAINER - front bearing

1шт.

36

182-84

SCREW,Slotted Pan Hd, #8-32 x 3/8"

SCREW - (#8 x 3/8" N.C. slotted pan hd.)

3шт.

37

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

3шт.

38

A41052

SLEEVE

SLEEVE - shaft

1шт.

39

A41058

X

FAN - alternator

1шт.

40

A41053

SPARE PART SPACER - fan

1шт.

41

A41051

SPACER

SAPCER - pulley

1шт.

REF#41 SPACER,CAN NOT BE USE WITH A42431.MUST USE A42432. 8/30/96

1шт.

42

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

43

A41035

NUT

NUT - pulley mtg. (5/8"-18 hex.)

1шт.

44

A41037

BOLT

BOLT - rear housing

4шт.

45

193-41

WASHER,Ext-Int Tooth, #8

WASHER, LOCK, Ext-Int Tooth, #8

4шт.

46

A41057

PULLEY

PULLEY - alternator

1шт.
