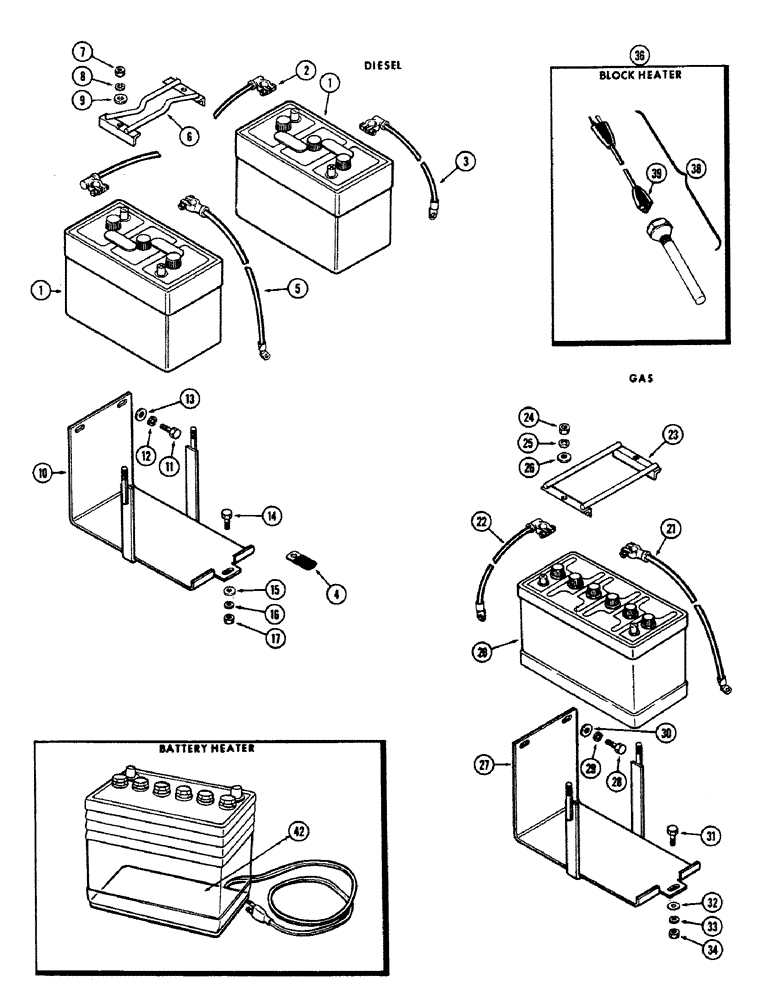

Запчасти Case 680CK (064) - BATTERY, SUPPORT AND CABLES, (267) DIESEL ENGINE, (251)

1

A8325

BATTERY - 6 volt

2шт.

2

A18926

CABLE

-, Serial Range: battery-battery

1шт.

3

A27987

CABLE

- battery, to starter sol.

1шт.

4

A22880

CLIP

- mount, to batt. carrier

1шт.

5

L11362

CABLE -, Serial Range: battery,-ground

1шт.

6

L11364

FRAME ASSY. - batt. hold down

2шт.

7

25-106

NUT,3/8"-16, G5

- (3/8" N. C. hex.)

4шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

195-22

WASHER

- (3/8" plain)

4шт.

10

L11059

BATTERY TRAY

TRAY - (3/8" x 3/4" N. C. hex.)

4шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

195-25

WASHER,3/8"

- (13/32")

4шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

15

195-25

WASHER,3/8"

- (13/32")

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

25-106

NUT,3/8"-16, G5

- (3/8" N. C. hex.)

2шт.

20

A14759

X

BATTERY - 12 volt

1шт.

21

L11362

CABLE -, Serial Range: battery,-ground

1шт.

22

A27987

CABLE

- battery, to starter sol.

1шт.

23

L11359

FRAME ASSY. - batt. hold down

1шт.

24

25-106

NUT,3/8"-16, G5

- (3/8" N. C. hex.)

2шт.

25

92-6

LOCK WASHER,3/8"

2шт.

26

195-22

WASHER

- (3/8" plain)

2шт.

27

L11059

BATTERY TRAY

TRAY - battery

1шт.

28

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

195-25

WASHER,3/8"

- (13/32")

2шт.

31

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

32

195-25

WASHER,3/8"

- (13/32")

1шт.

33

92-6

LOCK WASHER,3/8"

1шт.

34

25-106

NUT,3/8"-16, G5

- (3/8 N. C. hex.)

1шт.

38

A40476

HEATER

ASSY.

1шт.

39

A40477

ELECTRICAL WIRE

CORD - heater

1шт.

42

M20510

HEATER

ASSY. (Base type)

1шт.
