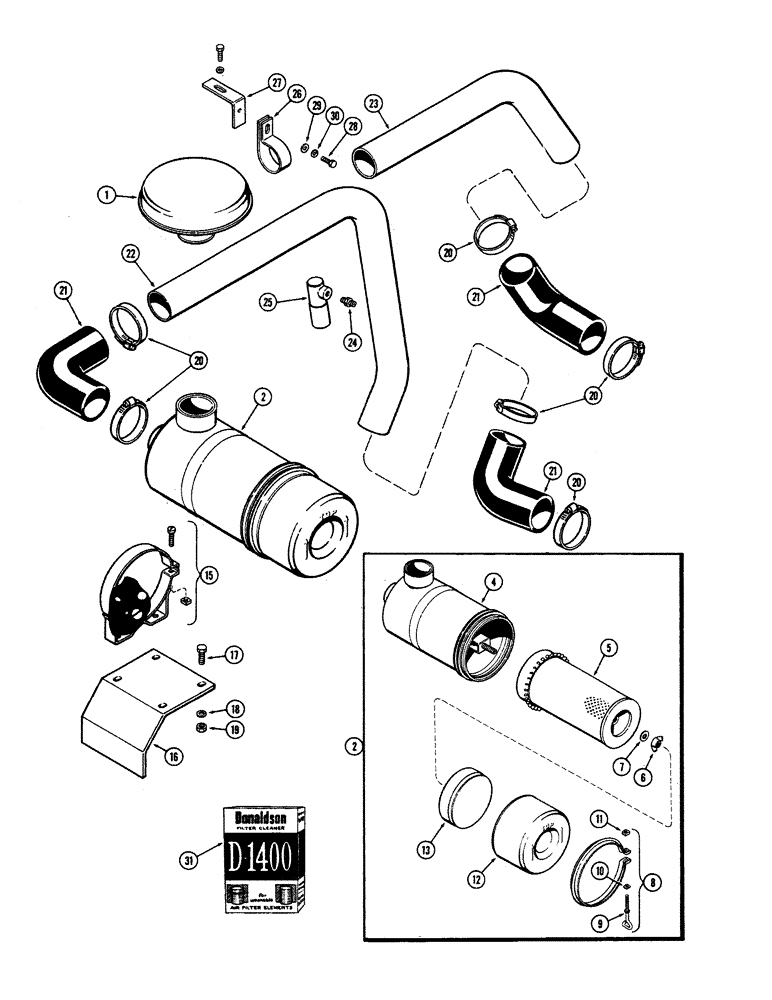

Запчасти Case 680CK (008) - AIR CLEANER

1

A21433

CAP

- (Used only w/F84514 air cleaner) (For 2-1/2" pipe)

1шт.

1

L11244

CAP - (Used only w/L11532 air cleaner) (For 2-3/4" pipe)

1шт.

2

F84514

AIR CLEANER

CLEANER ASSY. - air (w/2-1/2" pipe for A21433 weather cap)

1шт.

2

L11532

X

CLEANER ASSY. - air (w/2-3/4" pipe for L11244 weather cap)

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

5

F84998

FILTER, ELEMENT

ELEMENT ASSY. - air cleaner, w/gasket

1шт.

6

D37977

CAP

NUT - element retaining

1шт.

7

D37976

GASKET,14.61mm ID x 27.43mm OD x 3.3mm Thk

WASHER ASSY - w/seal

1шт.

8

F84999

CLAMP,168.28mm

ASSY - air cleaner

1шт.

9

L30338

BOLT,Band Clamp Wing, 1/4" - 20 x 3.875", Gr 2

SCREW - bolt clamp

1шт.

10

L30337

WASHER - square (1/4" flat)

1шт.

11

25-224

SQUARE NUT,Sq, 1/4"-20

- (1/4" N.C. square)

1шт.

12

F91760

CUP

- air cleaner

1шт.

13

F22312

BAFFLE

- air cleaner

1шт.

15

L11247

BAND

- air cleaner

2шт.

16

L11429

BRACKET - air cleaner mtg.

1шт.

17

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Cleaner band Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

18

92-6

LOCK WASHER,3/8"

4шт.

19

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

4шт.

20

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - tube, (2-1/16" to 3")

4шт.

21

L11251

ELBOW

- adapter (90 degrees)

2шт.

22

L11533

TUBE - air cleaner to carb. (Gasoline)

1шт.

23

L11529

TUBE - air cleaner to manifold (Diesel)

1шт.

24

L10234

X

ADAPTER - air cleaner vacuum gauge

1шт.

25

A17652

ELECTRICAL GAUGE

GAUGE - vacuum, mech. air filter

1шт.

26

L11256

CLAMP - air cleaner, Serial Range: tube-tank

1шт.

27

L11531

BRACKET - clamp mtg.

1шт.

28

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

29

195-21

WASHER,5/16"

- () 5/16"

1шт.

30

92-5

LOCK WASHER,5/16"

1шт.

31

A40910

CLEANER

DETERGENT - element cleaner

1шт.
