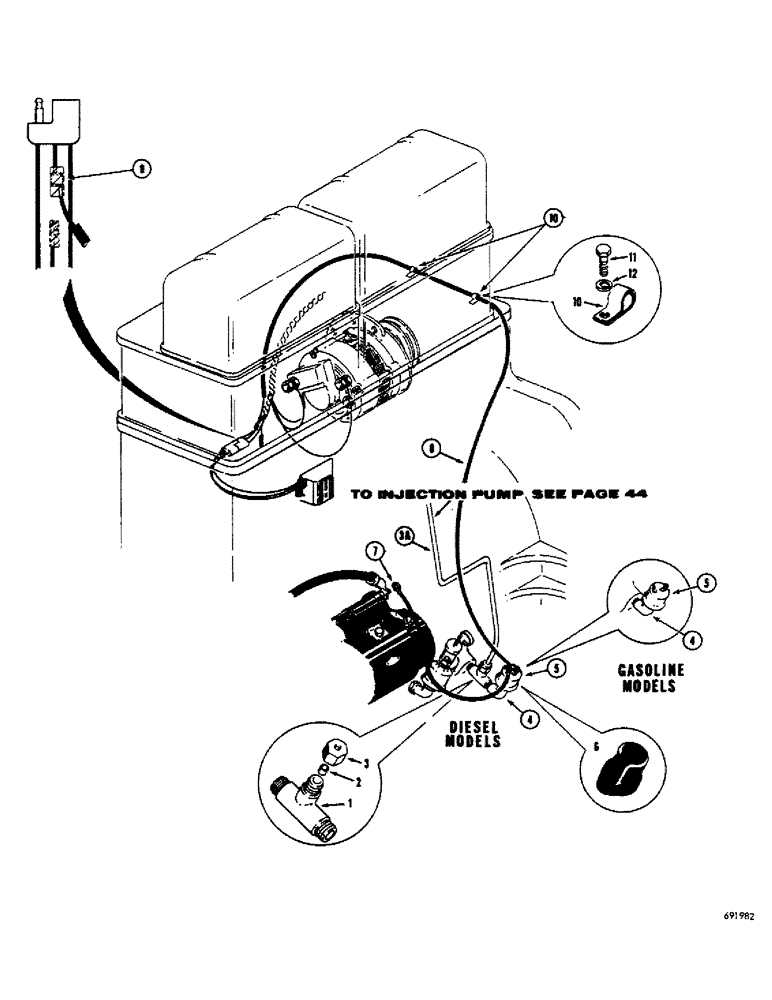

Запчасти Case 680CK (063C) - REGULATOR SENSING CIRCUIT

222-82

TEE,1/2"-12 Male x 1/8 NPT Fem Run x 1/8 NPT Br

- flex coupling, engine block to oil line and pressure switch (Diesel engine only)

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - tee

1шт.

2

222-102

SLEEVE,1/4" Tube

Flex coupling 1/4" Tube

1шт.

3

87017024

TUBE NUT,1/2"-24

NUT - flex coupling

1шт.

3a

A22640

TUBE

- oil gallery to injection pump

1шт.

4

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

5

D28798

SWITCH

- pressure

1шт.

6

L13821

BOOT

- switch protection

1шт.

7

L23787

WIRE - starter solenoid to pressure switch

1шт.

8

L23786

WIRE - pressure switch to regulator harness

1шт.

9

L23789

CONNECTOR - pressure switch wire to regulator harness

1шт.

10

49838

CLAMP

CLIP - wire to engine block

2шт.

11

13-78

BOLT,Hex, 7/16" - 14 x 1/2", Gr 5, Full Thd

2шт.

12

92-7

LOCK WASHER,7/16"

2шт.
