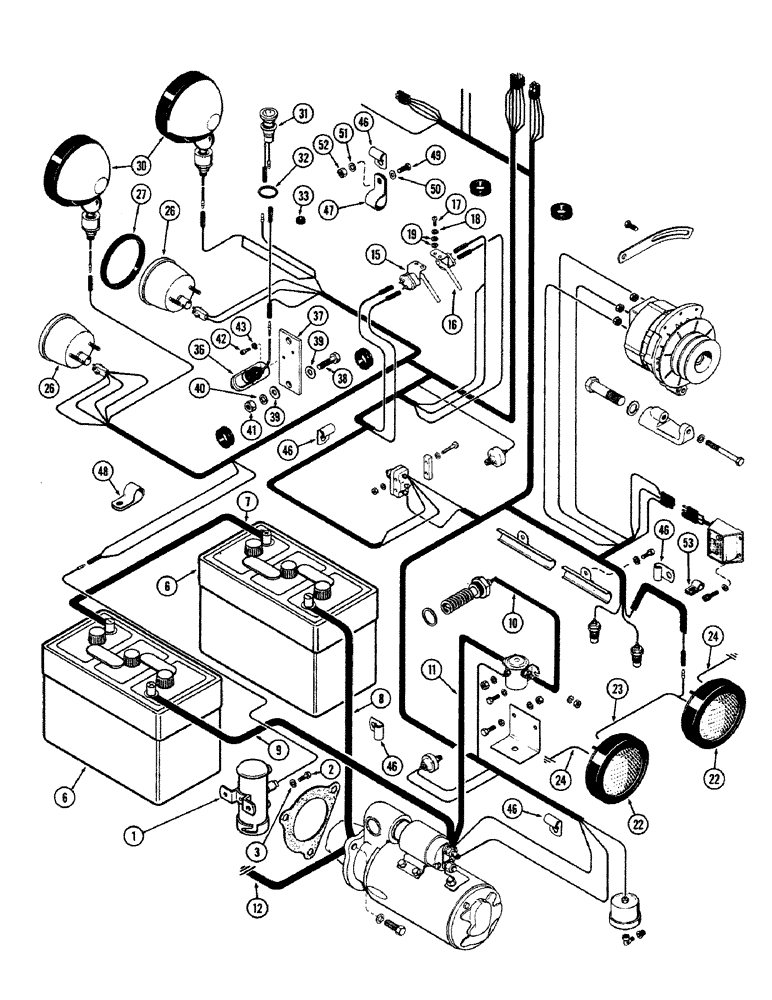

Запчасти Case 680CK (061A) - ELECTRICAL EQUIPMENT AND WIRING (CONTD), (267) DIESEL ENGINE

1

L11122

FUEL PUMP

PUMP ASSY. - fuel (See figure 50)

1шт.

2

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Pump Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

3

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

A8325

BATTERY - (6 volt) (See figure 64)

2шт.

7

A18926

CABLE

- battery to battery (18" long)

1шт.

8

A27987

CABLE

- bat. (Pos. term) to solenoid (41-1/2" long)

1шт.

9

L11362

CABLE - bat. (Neg. term.) to starter ground strap (48" long)

1шт.

10

L11368

CABLE

- solenoid to heater (20" long)

1шт.

11

A21483

CABLE

- solenoid to starter (20" long)

1шт.

12

L11363

CABLE - ground, (To frame) (15" long)

1шт.

15

A33976

SWITCH

- stop light, R.H.

1шт.

16

A33977

SWITCH

- stop light, L.H.

1шт.

17

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

- (#10-32 x 1/2" rd. hd. mach.)

4шт.

18

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

19

195-512

WASHER,#10

- () #10

8шт.

22

D30243

LAMP

HEAD LAMP ASSY. - (See figure 74) (Replaces L11354)

2шт.

23

L11352

ELECTRICAL WIRE

WIRE - head lights

1шт.

24

A15941

ELECTRICAL WIRE

WIRE - ground, head lights

2шт.

26

L10741

STOP LIGHT

LIGHT - stop and tail, 112 volts (See figure 74)

2шт.

27

L11521

MOULDING - tail light

2шт.

30

L11357

LIGHT

- rear (See figure 74)

2шт.

31

L11344

WARNING LIGHT

LIGHT - rear, eng. trouble ind. (See figure 74)

1шт.

32

L11345

GASKET

- light, eng. trouble ind.

1шт.

33

A17599

GROMMET,1/4" ID x 7/16" Groove Dia

- eng. trouble light (Replaces L11358)

1шт.

36

A8170

SOCKET

ASSY. - outlet, female

1шт.

37

L11544

PLATE - mtg., outlet socket

1шт.

38

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- plate (3/8 x 1" N. C. hex.)

2шт.

39

95-6

WASHER,3/8"

- ( flat) 3/8"

4шт.

40

92-6

LOCK WASHER,3/8"

2шт.

41

25-106

NUT,3/8"-16, G5

- (3/8" N. C. hex.)

2шт.

42

165-20

HEX SOC SCREW,#10 - 24 x 3/8"

SCREW - socket (#10-24 x 3/8" rd. hd.)

2шт.

43

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

46

A22880

CLIP

- harness

1шт.

47

49789

CLAMP

- backhoe return tube

2шт.

48

A10852

CLIP - floor support bolts (Replaces 49838)

4шт.

49

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

50

195-521

WASHER,5/16", SAE

- (5/16" plain)

2шт.

51

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

52

9635082

NUT,5/16" - 18, Gr 5

2шт.

53

A7922

CLIP

- rad. mtg. bolt

1шт.
