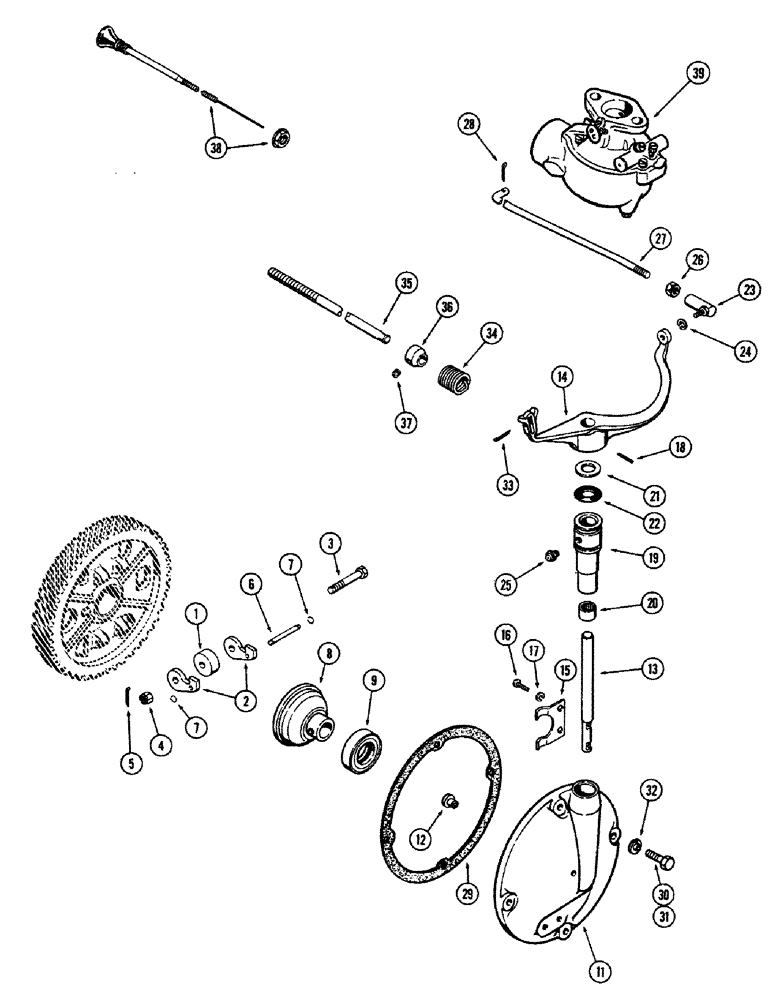

Запчасти Case 680CK (054) - GOVERNOR AND CONTROLS, (251) SPARK IGNITION ENGINE

1

A7277

WEIGHT

- governor

2шт.

2

A33471

KIT

FINGER - governor (Set of 4)

1шт.

3

A17504

BOLT

- governor weight

2шт.

4

25-235

SLOTTED NUT

NUT - castle (5/16" N.F. hex.)

2шт.

5

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

6

A7282

PIN,6.31mm OD x 47.63mm L

- bell, Serial Range: sleeve-fingers

2шт.

7

A7111

SNAP RING,#25, Ext

Ring, Snap, , bell sleeve pins #25, Ext

4шт.

8

A7284

SLEEVE - governor bell

1шт.

9

A7285

THRUST BEARING,1.0675" ID x 40574" OD x 5"

BEARING - thrust, bell

1шт.

11

A20833

CAP ASSY. - cover, timing gear

1шт.

12

A27869

BUTTON - thrust

1шт.

A34716

LEVER ASSY. - governor shaft (Not illust.)

1шт.

13

NSS

NOT SOLD SEPARAT

SHAFT - governor (Order A34716)

1шт.

14

NSS

NOT SOLD SEPARAT

LEVER - governor (Order A34716)

1шт.

15

NSS

NOT SOLD SEPARAT

FINGER - governor (Order A34716)

1шт.

16

174-99

SCREW,Sl Rnd Hd, #10 - 32 x 5/8"

- (#10-32 x 5/8" rd. hd. mach.)

2шт.

17

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

18

138-101

LOCK PIN,3/16" x 1 5/8", Slotted

PIN, LOCK, 3/16" x 1 5/8", Slotted

1шт.

19

A20835

SLEEVE - gov. shaft brg.

1шт.

20

A7290

NEEDLE BEARING,Needle, 14.29mm ID x 19.05mm OD x 12.7mm W

BEARING - gov. shaft

2шт.

21

A7293

WASHER

- gov. shaft thrust

1шт.

22

A7292

SEAL

- gov. shaft brg.

1шт.

23

A10326

BALL JOINT

JOINT - ball, gov. lever

1шт.

24

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P. T., str.)

1шт.

26

129-27

NUT,Hex, #10 - 32

- (#10 N. F. hex., mach. screw)

1шт.

27

A24307

ROD

- gov. lever to carb. (Gas) (Replaces A21775)

1шт.

28

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

29

A27867

GASKET

- timing gear cover cap

1шт.

30

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

31

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

32

92-6

LOCK WASHER,3/8"

4шт.

33

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

34

A20868

SPRING

- gov.

1шт.

35

A34713

ROD - throttle, front

1шт.

36

A20846

COLLAR

- stop, throttle rod

1шт.

37

84-44

SET SCREW,Hex Soc, 1/4"-28 x 1/4"

SCREW - collar (1/4 x 1/4" N. C. sckt. hd.)

1шт.

38

A36578

ROD

CHOKE ASSY. - flexible (Gasoline)

1шт.

39

A20813

CARBURETOR

ASSY. - engine, fuel

1шт.
