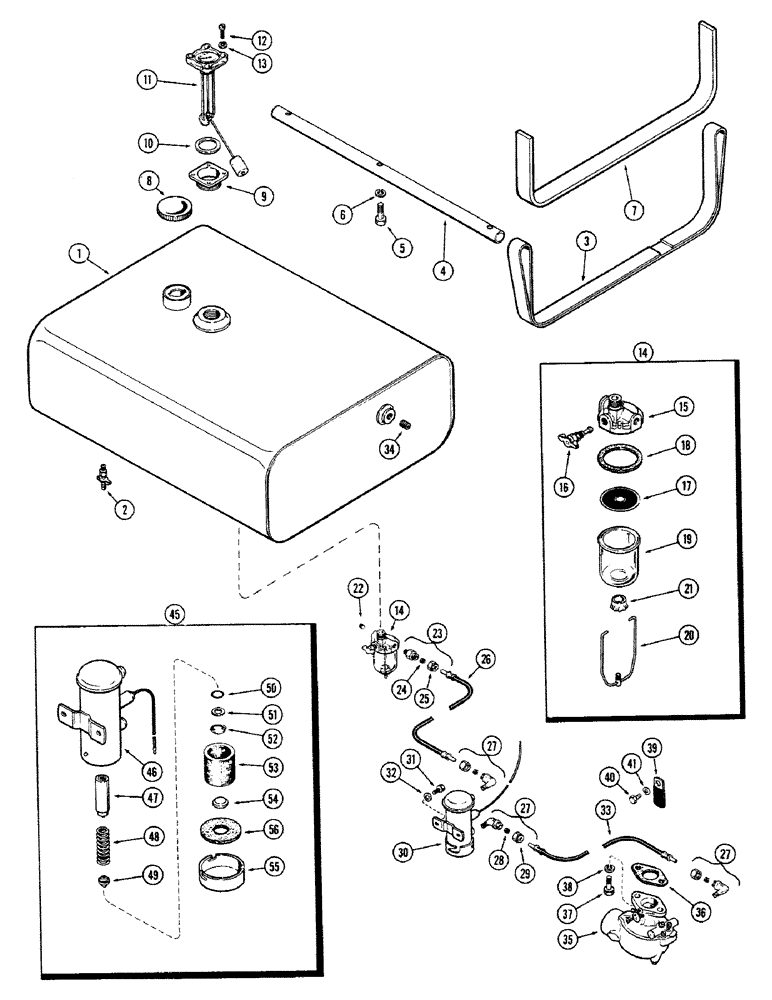

Запчасти Case 680CK (050) - FUEL TANK AND FILTER, (251) SPARK IGNITION ENGINE, FUEL PUMP

1

L11113

TANK ASSY. - fuel

1шт.

2

217-102

PLUG, DRAIN

VALVE - water drain

1шт.

3

L11114

STRAP - fuel tank mtg.

2шт.

4

L11119

ROD - fuel tank mtg.

2шт.

5

113-419

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5, Full Thd

Hex, 1/2"-13 x 2 1/2", G5, Full Thd, Tank mounting

6шт.

6

92-8

LOCK WASHER,1/2"

6шт.

7

L11115

PAD - fuel tank mtg.

2шт.

8

A18870

FILLER CAP

CAP - filler

1шт.

9

L11116

ADAPTER

- fuel gauge

1шт.

10

L11117

GASKET

- fuel gauge

1шт.

11

L11118

GAUGE

- fuel level

1шт.

12

71-410

SCREW

- (1/4 x 5/8" N. C. fill. hd. sltd.)

4шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

14

A26615

STRAINER ELEMENT

STRAINER ASSY. - fuel filter

1шт.

15

A11215

BODY

- fuel strainer

1шт.

16

A11205

VALVE

- fuel shut-off

1шт.

17

A11202

SCREEN

- fuel strainer

1шт.

18

A11203

GASKET

-, Serial Range: bowl-body

1шт.

19

A11204

BOWL

- sediment (glass)

1шт.

20

A11206

BAIL

- bowl hanger

1шт.

21

A11210

ADJUSTER

NUT - bowl ret., w/cup

1шт.

22

221-1041

PLUG

- pipe, strainer (1/8" P. T. sltd. headless)

1шт.

23

222-24

FITTING,9/16"-24 x 1/8" NPTF

CONNECTOR ASSY. - (5/16" tube x 1/8" P. T.)

1шт.

24

222-103

SLEEVE,5/16" Tube

1шт.

25

222-113

TUBE NUT,9/16"-24

NUT - (For 5/16" O. D. tube)

1шт.

26

L11124

HOSE - strainer to fuel pump

1шт.

27

222-44

ELBOW,90 Degree, 9/16"-24 Fem x 1/8"-27 NPTF

ASSY. - (5/16" tube x 1/8" P.T.)

3шт.

28

222-103

SLEEVE,5/16" Tube

1шт.

29

222-113

TUBE NUT,9/16"-24

NUT - (For 5/16" O. D. tube)

1шт.

30

L11122

FUEL PUMP

PUMP - fuel, electric (See ref. 45)

1шт.

31

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Pump mounting Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

32

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

33

L11125

HOSE - fuel, Serial Range: pump-carb.

1шт.

34

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, tank return (1/4" P. T. sq. hd.)

1шт.

35

A20813

CARBURETOR

ASSY. - engine fuel (See figure 52)

1шт.

36

A26434

GASKET

- carb. to intake manifold

1шт.

37

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

38

92-6

LOCK WASHER,3/8"

2шт.

39

A22880

CLIP

CLAMP - fuel line

2шт.

40

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

41

92-6

LOCK WASHER,3/8"

1шт.

45

L11122

FUEL PUMP

ASSY. - electric

1шт.

46

NSS

NOT SOLD SEPARAT

BODY - fuel pump (Order L11122)

1шт.

47

A40310

PLUNGER

- pump

1шт.

48

A40207

SPRING

- plunger

1шт.

49

A40313

CUP

VALVE - cup

1шт.

50

A40318

O-RING,0.429" ID x 0.106"

"O" RING - valve

1шт.

51

A40317

WASHER

- "O" ring retainer

1шт.

52

A40316

RETAINER

KEEPER - "O" ring retainer

1шт.

53

A40314

FILTER CARTRIDGE

FILTER - fuel

1шт.

54

A40311

MAGNET

- plunger (Permanent type)

1шт.

55

A40312

COVER

- fuel pump

1шт.

56

A40315

GASKET

- cover

1шт.
