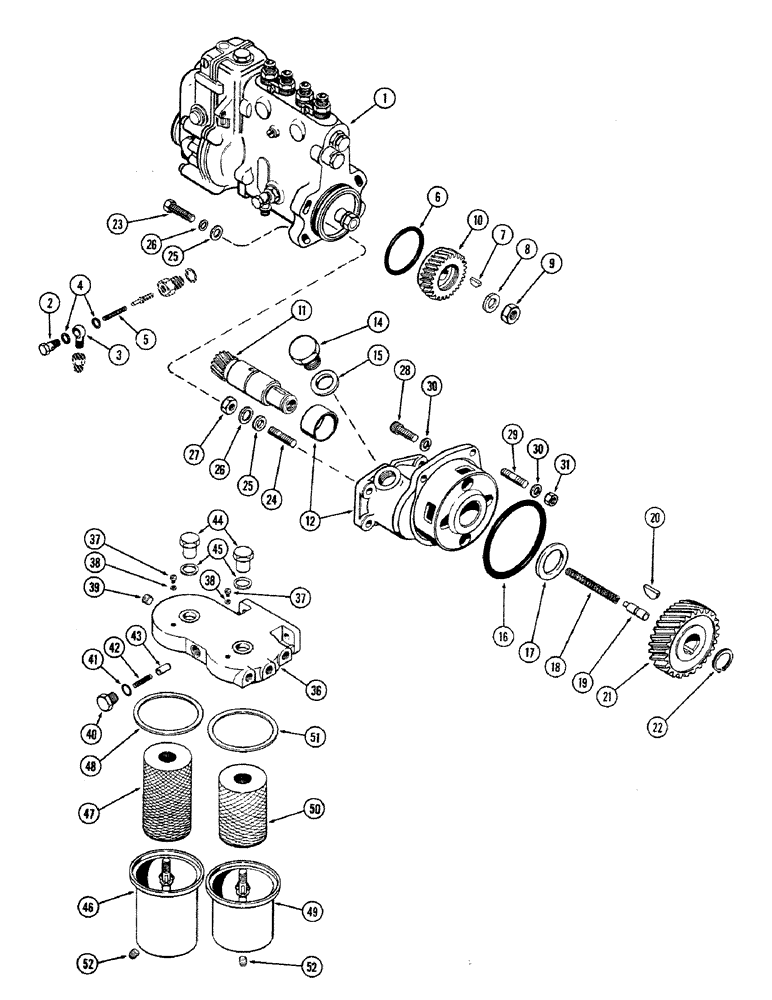

Запчасти Case 680CK (048) - FUEL INJECTION PUMP AND DRIVE, (267) DIESEL ENGINE, FUEL

1

A22635

PUMP

ASSY. - injection (1900 RPM) (Torque conv.)

1шт.

2

A25192

BANJO BOLT

BOLT - lube oil fitting

1шт.

3

A25191

FITTING

- oil lube line (Banjo type)

1шт.

4

A22381

WASHER

- banjo fitting

2шт.

5

A25190

SPRING

- oil lube port

1шт.

6

A20529

O-RING,2.598" ID x 2.834" OD

"O" RING - pump to hsg.

1шт.

7

A20933

KEY

- drive gear

1шт.

8

A25188

WASHER

- gear lock

1шт.

9

A25189

NUT - gear ret.

1шт.

10

A21139

GEAR

- inj. pump

1шт.

11

A20622

GEAR

PINION - pump gear drive

1шт.

12

A21136

HOUSING ASSY. - drive pinion

1шт.

14

A21140

PLUG

- timing window

1шт.

15

A27947

X

GASKET - plug

1шт.

16

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - hsg.

1шт.

17

A27864

WASHER

- thrust

1шт.

18

CASA27853

SPRING

- plunger tension

1шт.

19

A27852

PLUNGER

- pinion thrust

1шт.

20

126-66

WOODRUFF KEY

KEY - drive gear (#141 Woodruff)

1шт.

21

A20899

GEAR WHEEL

GEAR - inj. pump drive

1шт.

22

A27576

SNAP RING,#98, Ext

Ring, Snap, , drive gear #98, Ext

1шт.

23

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- pump, lower (3/8 x 1-1/2" N.C. hex.)

2шт.

24

A20664

STUD - pump, upper (3/8" N. F. x 1-7/8")

2шт.

25

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16")

4шт.

26

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

27

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N. F. hex.)

2шт.

28

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Housing Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

28

61-620

HEX SOC SCREW,3/8"-16 x 1 1/4"

BOLT - hsg. (3/8" x 1-1/4" N. C., 12 pt. hd.)

1шт.

29

A26554

STUD - hsg. (3/8" N. F. x 1-9/16")

1шт.

30

92-6

LOCK WASHER,3/8"

3шт.

31

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N. F. hex.)

1шт.

A40435

FILTER

ASSY. - primary (1st & 2nd stage)

1шт.

36

A24915

HEAD - filter

1шт.

37

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed

2шт.

38

A20662

GASKET

WASHER - bleed screw

2шт.

39

221-849

PLUG,Hex Soc, 1/8"-27

- filter hd. (1/8" P. T., hex. sckt. hd.)

1шт.

40

A24916

PLUG

- filter hd. (1/8" P. T., hex. sckt. hd.)

1шт.

41

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O"RING - plug (1/2 x 11/16 x 3/32")

1шт.

42

A24918

SPRING

- relief valve

1шт.

43

A24917

PLUNGER

- relief valve

1шт.

44

A21131

NUT

- body ret.

2шт.

45

A28055

GASKET

- nut

2шт.

46

A21129

BODY

- filter, 1st stage

1шт.

47

A21141

FILTER, ELEMENT

ELEMENT ASSY. - 1st stage filter (4-13/16" lg.)

1шт.

48

A28056

GASKET

-, Serial Range: body-head

1шт.

49

A21132

BODY

- filter, 2nd stage

1шт.

50

A7627

FILTER, ELEMENT

ELEMENT ASSY. - 2nd stage filter (3-7/8" lg.)

1шт.

51

A28056

GASKET

-, Serial Range: body-head

1шт.

52

221-11

PLUG,Sq Hd, 1/8"-27

- filter body (1/8" sq. hd., pipe)

2шт.
