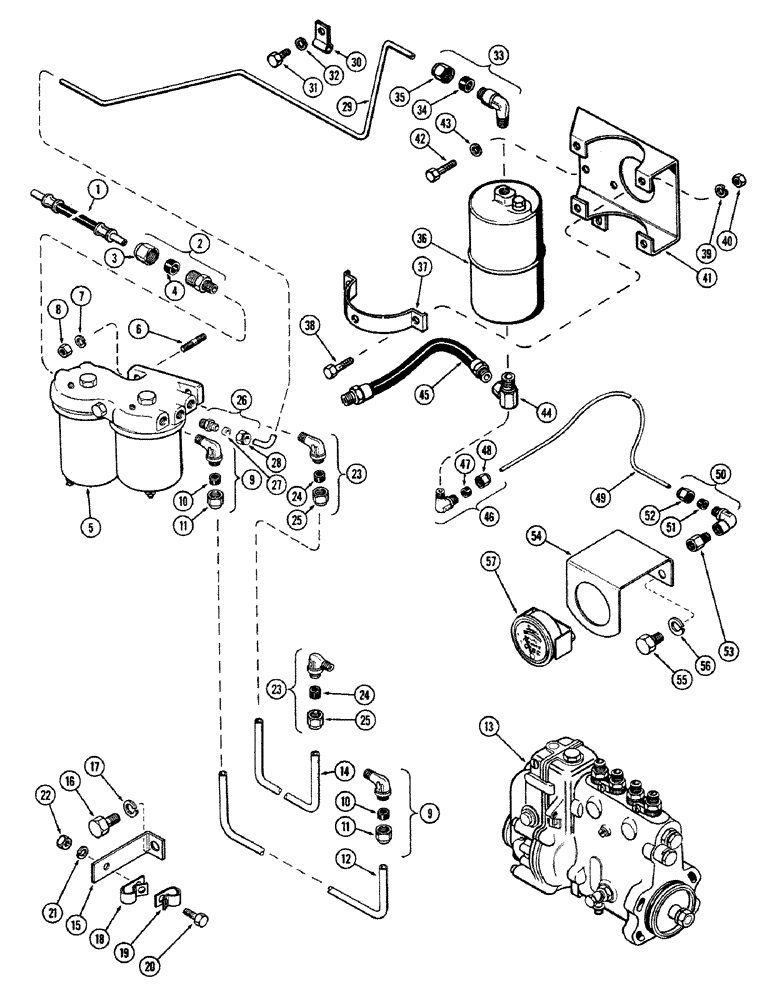

Запчасти Case 680CK (046) - FUEL INJECTION LINES, (267) DIESEL ENGINE

1

L11121

HOSE

- electric fuel pump to fuel filter

1шт.

2

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

CONNECTOR ASSY. - fuel tube

1шт.

3

222-104

SLEEVE,3/8" Tube

- (For 3/8" O. D. tube)

1шт.

4

222-114

NUT,5/8"-24

NUT - (For 3/8" O. D. tube)

1шт.

5

A40435

FILTER

ASSY. - primary (See figure 48)

1шт.

6

A26554

STUD - primary filter

2шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N. F. hex.)

2шт.

9

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - fuel line

2шт.

10

222-104

SLEEVE,3/8" Tube

- (For 3/8" O. D. tube)

1шт.

11

222-114

NUT,5/8"-24

NUT - (For 3/8" O. D. tube)

1шт.

12

A20650

TUBE

-, Serial Range: filter-pump

1шт.

13

A22635

PUMP

ASSY. - injection (See figure 48)

1шт.

14

A20651

TUBE

-, Serial Range: pump-filter

1шт.

15

A20656

BRACKET - tube clips

1шт.

16

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Bracket Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

17

92-5

LOCK WASHER,5/16"

1шт.

18

A20688

CLIP

- tube ret. (Used w/A20650 tube)

1шт.

19

A27814

X

CLIP - tube ret. (Used w/A20651 tube)

1шт.

20

75-412

SCREW,Rd, 1/4" x 3/4"

- clip (1/4" x 3/4" N. C. rd. hd.)

1шт.

21

91-4

WASHER - lock (1/4")

1шт.

22

25-104

NUT,1/4"-20, G5

1шт.

23

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - fuel line

2шт.

24

222-103

SLEEVE,5/16" Tube

1шт.

25

222-113

TUBE NUT,9/16"-24

NUT - (For 5/16" O. D. tube)

1шт.

26

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY. - fuel line

1шт.

27

222-103

SLEEVE,5/16" Tube

1шт.

28

222-113

TUBE NUT,9/16"-24

NUT - (For 5/16" O. D. tube)

1шт.

29

A22253

TUBE

- primary to secondary filter

1шт.

30

A7922

CLIP

- tube ret.

1шт.

31

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

32

92-5

LOCK WASHER,5/16"

1шт.

33

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - fuel line

1шт.

34

222-103

SLEEVE,5/16" Tube

1шт.

35

222-113

TUBE NUT,9/16"-24

NUT - (For 5/16" O. D. tube)

1шт.

36

A57228

FILTER

- secondary (Final stage) (Replaces A27983)

1шт.

37

A21144

CLAMP

- secondary filter

2шт.

38

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Clamp Hex, 5/16"-18 x 7/8", G5, Full Thd

4шт.

39

92-5

LOCK WASHER,5/16"

4шт.

40

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N. C. hex.)

4шт.

41

A33617

BRACKET - secondary filter mtg.

1шт.

42

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Bracket Hex, 3/8"-16 x 3/4", G5, Full Thd

3шт.

43

92-6

LOCK WASHER,3/8"

3шт.

44

A20539

FITTING

UNION - hose & pressure switch

1шт.

45

A21070

HOSE,9.53mm ID x 203.2mm L

- Secondary filter to inj. pump 0.38" ID x 8.00"

1шт.

46

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- (1/8" P. T.)

1шт.

47

222-100

TUBE NUT,1/8" Tube

SLEEVE - (For ) 1/8" Tube

1шт.

48

222-110

TUBE NUT,3/8"-24

NUT - (For 1/8" tube)

1шт.

49

A9364

TUBE

- gauge to final filter

1шт.

50

222-53

ELBOW,3/8"-24 x 1/8 NPTF

- (1/8" tube x 1/8" P. T.)

1шт.

51

222-100

TUBE NUT,1/8" Tube

SLEEVE - (For ) 1/8" Tube

1шт.

52

222-110

TUBE NUT,3/8"-24

NUT - (For 1/8" tube)

1шт.

53

A28061

FITTING

SNUBBER -, Serial Range: gauge-elbow

1шт.

54

A57077

BRACKET

- fuel pressure gauge (Replaces A14498)

1шт.

55

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

56

92-6

LOCK WASHER,3/8"

2шт.

57

A11471

X

GAUGE ASSY. - fuel pressure

1шт.
