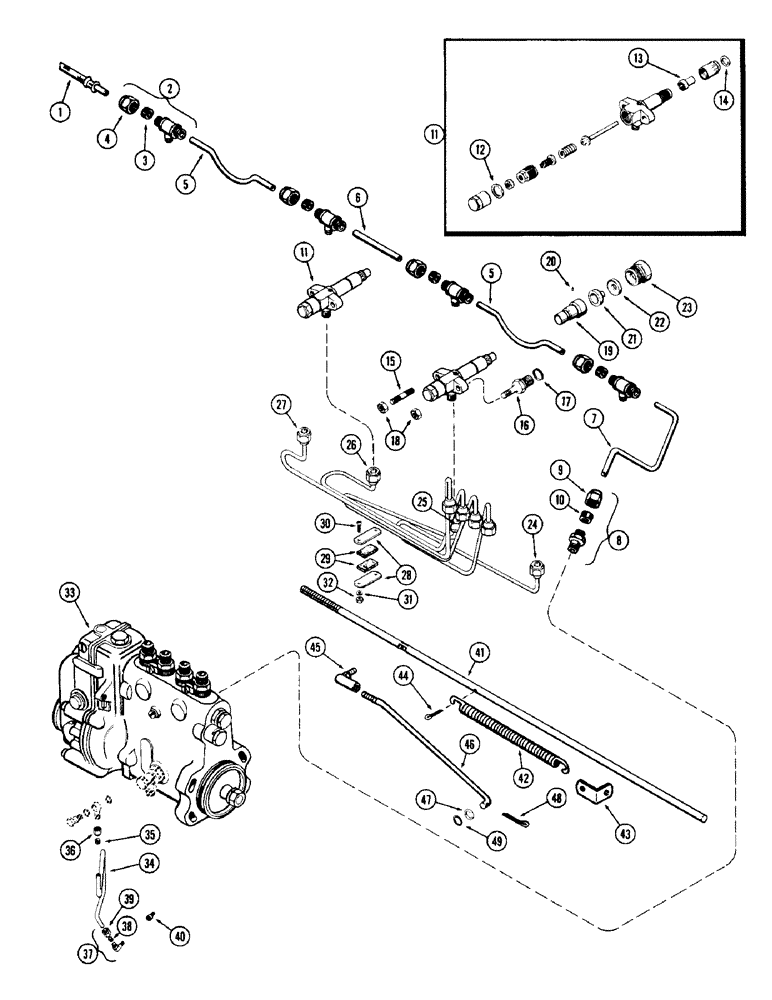

Запчасти Case 680CK (044) - FUEL INJECTION SYSTEM, (267) DIESEL ENGINE

1

L11123

TUBE - leak-off (To fuel tank)

1шт.

2

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

ASSY. - leak-off lines

4шт.

3

222-102

SLEEVE,1/4" Tube

1шт.

4

87017024

TUBE NUT,1/2"-24

NUT - (For 1/4" O. D. tube)

1шт.

5

A27981

TUBE

- leak-off, outer

2шт.

6

A20162

TUBE

- leak-off, center

1шт.

7

A22186

TUBE

- leak-off line (To no. 1 inj.)

1шт.

8

A28098

VALVE

ASSY. - check, leak off line

1шт.

9

87017024

TUBE NUT,1/2"-24

NUT - (For 1/4" O. D. tube)

1шт.

10

222-102

SLEEVE,1/4" Tube

1шт.

11

A8013

NOZZLE INJECTION

INJECTOR ASSY. - nozzle

4шт.

12

A31062

GASKET

- injector cap

1шт.

13

A31159

NOZZLE INJECTION

NOZZLE ASSY. - injector

1шт.

14

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

GASKET - nozzle seat

1шт.

15

A27929

STUD

- nozzle holder (3/8" N. C./N. F. x 2-3/16")

4шт.

16

A10678

STUD

- nozzle holder

4шт.

17

A10679

GASKET

- nozzle holder stud (23/32 x 29/32 x 1/32" copper)

4шт.

18

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N. F. hex.)

8шт.

19

A22978

BODY

- powrcel

4шт.

20

A11810

PIN,3.19mm OD x 6.99mm L

- body locating

4шт.

21

A22975

CAP

- powrcel

4шт.

22

A11812

CLAMP

- powrcel

4шт.

23

A11813

PLUG

SCREW - powrcel ret.

4шт.

24

A20501

TUBE

- inj. (No. 1 cyl.)

1шт.

25

A20502

TUBE

- inj. (No. 2 cyl.)

1шт.

26

A20503

TUBE

- inj. (No. 3 cyl.)

1шт.

27

A20504

TUBE

- inj. (No. 4 cyl.)

1шт.

28

A28046

CLAMP

- injection tubes

2шт.

29

A28047

CUSHION

- injection tube clamps

2шт.

30

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- clamp (#10 x 1" N. C., rd. hd.)

4шт.

31

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

32

129-7

NUT,Hex, #10 - 24

- (#10 N. C. hex.)

4шт.

33

A22635

PUMP

ASSY. - injection (See figure 48)

1шт.

34

A22640

TUBE

- inj. pump to oil gallery

1шт.

35

222-102

SLEEVE,1/4" Tube

1шт.

36

87017024

TUBE NUT,1/2"-24

NUT - (For 1/4" O. D. tube)

1шт.

37

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY. - oil tube

1шт.

38

222-102

SLEEVE,1/4" Tube

1шт.

39

87017024

TUBE NUT,1/2"-24

NUT - (For 1/4" O. D. tube)

1шт.

40

221-1052

PLUG

BUSHING - reducer (3/8" to 1/8") (In block)

1шт.

41

A34709

ROD - throttle, front

1шт.

42

A22619

SPRING

- throttle return

1шт.

43

A22620

CLIP

- return spring anchor

1шт.

44

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

45

A10326

BALL JOINT

JOINT - ball, throttle link

1шт.

46

A33953

ROD

LINK - throttle rod

1шт.

47

195-15

WASHER,#12

- flat (1/4")

1шт.

48

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

49

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.
