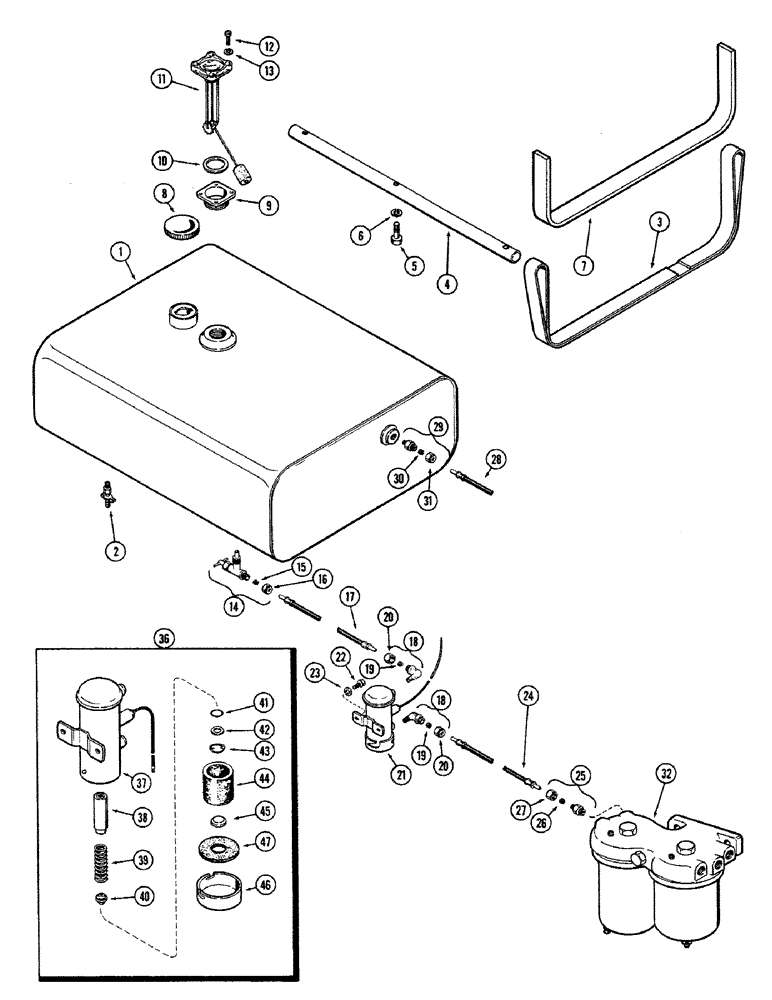

Запчасти Case 680CK (042) - FUEL TANK, (267) DIESEL ENGINE, FUEL PUMP

1

L11113

TANK ASSY. - fuel

1шт.

2

217-102

PLUG, DRAIN

VALVE - water drain

1шт.

3

L11114

STRAP - fuel tank mtg.

2шт.

4

L11119

ROD - fuel tank mtg.

2шт.

5

113-419

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5, Full Thd

Hex, 1/2"-13 x 2 1/2", G5, Full Thd, Tank mounting

6шт.

6

92-8

LOCK WASHER,1/2"

6шт.

7

L11115

PAD - fuel tank mtg.

2шт.

8

A18870

FILLER CAP

CAP - filler

1шт.

9

L11116

ADAPTER

- fuel gauge

1шт.

10

L11117

GASKET

- fuel gauge

1шт.

11

L11118

GAUGE

- fuel level

1шт.

12

71-410

SCREW

- (1/4 x 5/8" N.C. fill hd. sltd.)

4шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

14

A27955

VALVE

- needle, fuel tank

1шт.

15

222-104

SLEEVE,3/8" Tube

- (3/8" O.D. tube)

1шт.

16

222-114

NUT,5/8"-24

NUT - (3/8" hex.)

1шт.

17

L11120

HOSE ASSY.

HOSE - needle valve to fuel pump

1шт.

18

222-46

ELBOW,90 Degree, 5/8"-24 Fem x 1/8"-27 NPTF

- (3/8" tube x 1/8" P.T., 90 deg.)

2шт.

19

222-104

SLEEVE,3/8" Tube

- (3/8" O.D. tube)

1шт.

20

222-114

NUT,5/8"-24

NUT - (3/8" hex.)

1шт.

21

L11122

FUEL PUMP

PUMP - fuel, electric (See ref. 36)

1шт.

22

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Pump mounting Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

23

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

24

L11121

HOSE

- fuel, Serial Range: pump-filter

1шт.

25

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

CONNECTOR ASSY. - fuel tube (3/8" O.D. tube)

1шт.

26

222-104

SLEEVE,3/8" Tube

(3/8" O.D. tube)

1шт.

27

222-114

NUT,5/8"-24

NUT - (3/8" hex.)

1шт.

28

L11123

HOSE - relief, Serial Range: valve-tank

1шт.

29

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR - (1/4" tube x 1/4" P.T.)

1шт.

30

222-102

SLEEVE,1/4" Tube

1шт.

31

87017024

TUBE NUT,1/2"-24

NUT - (1/4" hex.)

1шт.

32

A40435

FILTER

ASSY. - primary (1st & 2nd stage)

1шт.

36

L11122

FUEL PUMP

ASSY. - electric

1шт.

37

NSS

NOT SOLD SEPARAT

BODY - fuel pump (Order L11122)

1шт.

38

A40310

PLUNGER

- pump

1шт.

39

A40207

SPRING

- plunger

1шт.

40

A40313

CUP

VALVE - cup

1шт.

41

A40318

O-RING,0.429" ID x 0.106"

"O" RING - valve

1шт.

42

A40317

WASHER

- "O" ring retainer

1шт.

43

A40316

RETAINER

KEEPER - "O" ring retainer

1шт.

44

A40314

FILTER CARTRIDGE

FILTER - fuel

1шт.

45

A40311

MAGNET

- plunger (Permanent type)

1шт.

46

A40312

COVER

- fuel pump

1шт.

47

A40315

GASKET

- cover

1шт.
