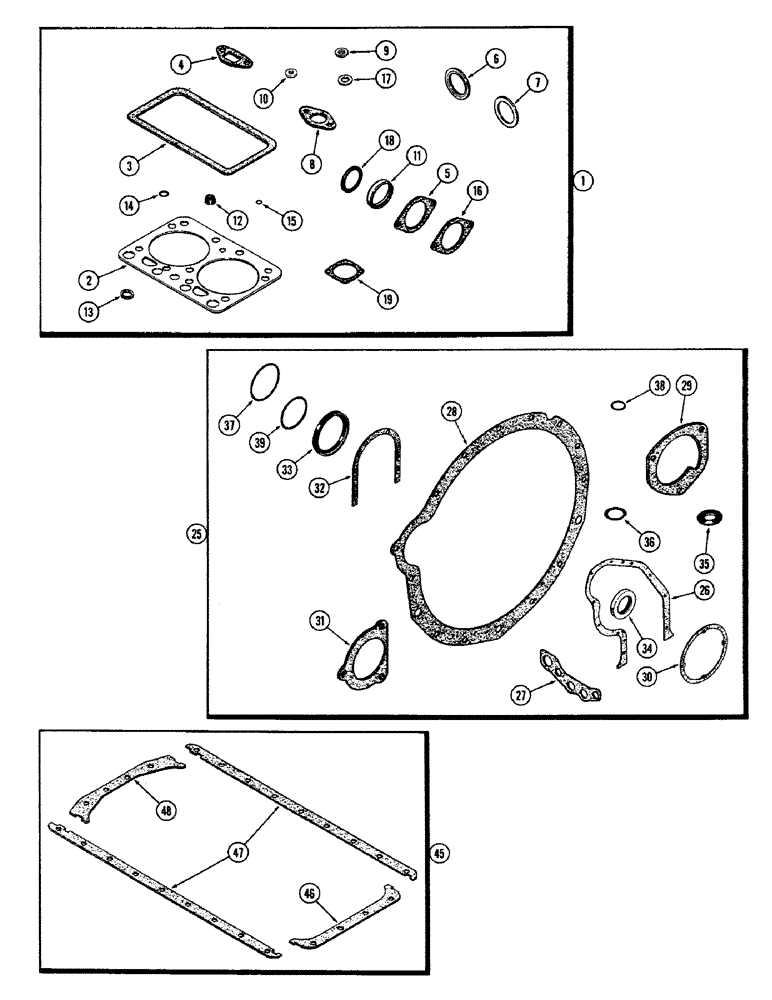

Запчасти Case 680CK (040) - ENGINE GASKET KITS, (251) SPARK IGNITION ENGINE

1

A40899

KIT

VALVE GRIND KIT (See note)

1шт.

2

A23118

GASKET

- cylinder head

2шт.

3

A27972

CYLINDER HEAD GASKET

- cyl. head cover

2шт.

4

A27905

GASKET

- water manifold

4шт.

5

A28113

GASKET

- thermostat housing (Not used this appl.)

1шт.

6

A27909

GASKET

- exhaust manifold

4шт.

7

A7363

MANIFOLD GASKET

- intake manifold

2шт.

8

A26434

GASKET

-, Serial Range: carburetor-manifold

1шт.

9

A23685

GASKET

- cyl. hd. cover-breather tube

2шт.

10

A23684

GASKET

GASKET - cyl. hd. cover studs

4шт.

11

A21034

SEAL

SEAL - thermostat

1шт.

12

A10726

SEAL

SHIELD - oil, intake valve stem

4шт.

13

A7669

RING

- cyl. head water passage

4шт.

14

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - cyl. head oil passage

2шт.

15

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker shaft oil tube

2шт.

16

A21035

GASKET

- thermostat hsg.

1шт.

17

A34133

GASKET

- breather, Serial Range: tube-cover

2шт.

18

A30954

GASKET

SEAL - thermostat (Not used this appl.)

1шт.

19

A27539

GASKET

- carb. elbow (Not used this appl.)

1шт.

25

A40349

KIT

CYLINDER BLOCK KIT (See note)

1шт.

26

A33018

GASKET

- timing gear cover

1шт.

27

A21084

GASKET

- oil filter base

1шт.

28

A11649

GASKET

- cyl. to conv. housing (Not used this appl.)

1шт.

29

1342741C1

GASKET

- water pump body

1шт.

30

A27867

GASKET

- timing gear cover cap

1шт.

31

A27933

GASKET

- starter

1шт.

32

A32830

GASKET

- rear oil seal retainer

1шт.

33

A23085

OIL SEAL

- oil, crankshaft rear

1шт.

34

A57342

SEAL

- oil, crankshaft, front (Replaces A23433)

1шт.

35

A7292

SEAL

- oil, governor shaft bearing

1шт.

36

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - oil pump

2шт.

37

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - hyd. pump hole cover

1шт.

38

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - distributor

1шт.

39

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - flywheel to crankshaft (Not used this appl.)

1шт.

45

A7616

GASKET KIT

OIL PAN KIT - (See note)

1шт.

46

NSS

NOT SOLD SEPARAT

GASKET - oil pan - front (Order A7616)

1шт.

47

NSS

NOT SOLD SEPARAT

GASKET - oil pan - sides (Order A7616)

2шт.

48

NSS

NOT SOLD SEPARAT

GASKET - oil pan - rear (Order A7616)

1шт.
