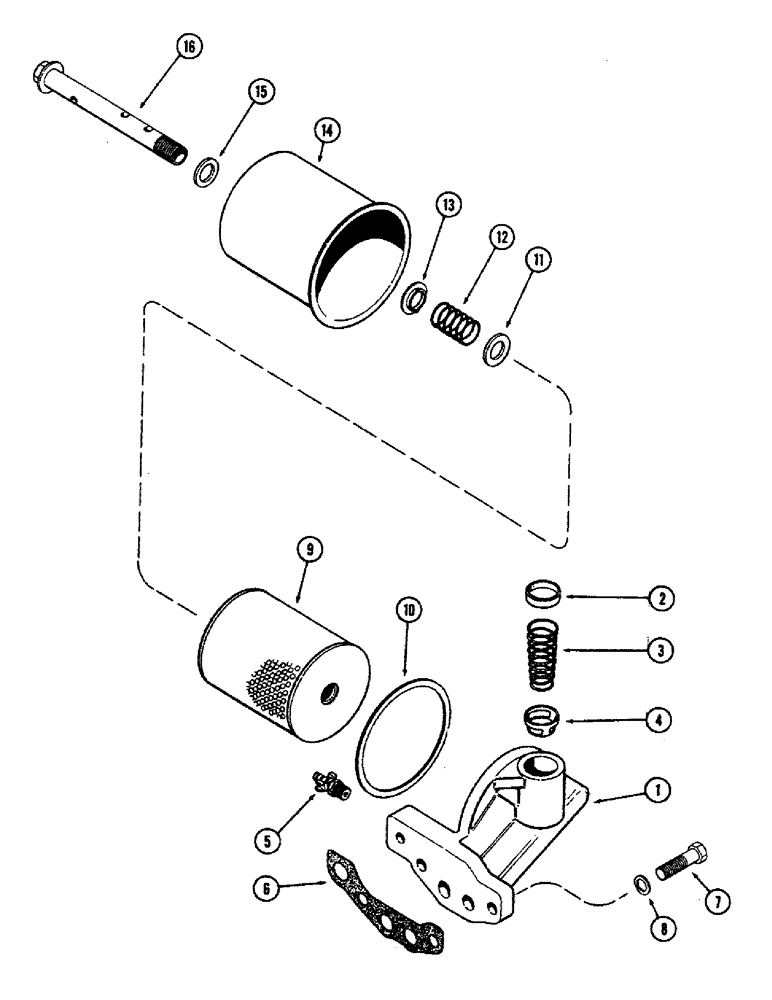

Запчасти Case 680CK (039C) - OIL FILTER, (251) SPARK IGNITION ENGINE

1

A23469

BASE

ASSY. - oil

1шт.

2

41-1620

PLUG,Cup, 1 1/4", Stainless

- relief valve

1шт.

3

A21091

VALVE SPRING

SPRING - relief valve

1шт.

4

A21090

VALVE

- relief, oil

1шт.

5

A23656

COCK, DRAIN

VALVE - drain, base

1шт.

6

A21084

GASKET

- mtg., filter base

1шт.

7

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- (1/2 x 1-3/4" N.C. hex.)

1шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

A21475

ENGINE OIL FILTER

ELEMENT KIT - oil filter

1шт.

10

A21473

GASKET

- mtg., filter shell

1шт.

11

A21474

GASKET

- bolt, inner

1шт.

12

A21478

SPRING

- retainer, element

1шт.

13

A21477

RETAINER

- spring

1шт.

14

A21471

SHELL

- element, filter

1шт.

15

A21479

GASKET

- bolt, outer

1шт.

16

A21476

BOLT

- mtg, filter shell & element

1шт.
