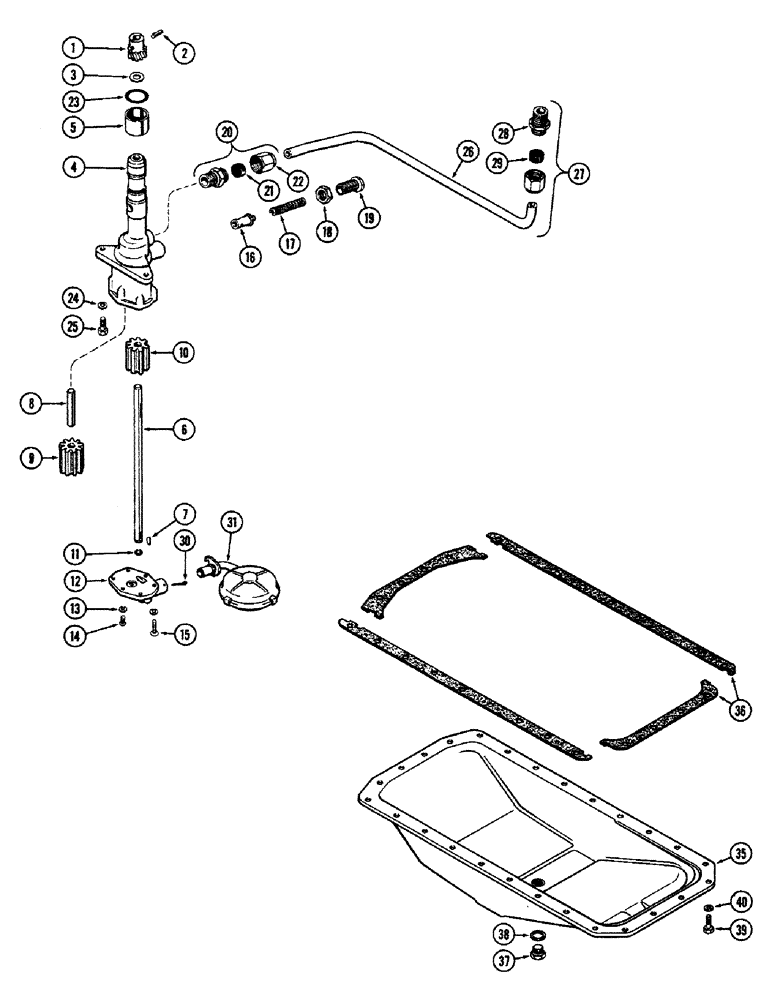

Запчасти Case 680CK (039A) - OIL PUMP, (251) SPARK IGNITION ENGINE, USED PRIOR TO ENG.

A33443

PUMP

ASSY. - oil

1шт.

1

A26329

GEAR

- drive, pump

1шт.

2

135-133

GROOVED PIN,3/16" x 1", Type A, Hardened

PIN, GROOVED, 3/16" x 1", Type A, Hardened

1шт.

3

A27857

WASHER

- thrust, drive gear

1шт.

4

A21094

BODY

ASSY. - oil pump

1шт.

5

A21079

SLEEVE

- pump body

1шт.

6

A21102

SHAFT

- drive, pump

1шт.

7

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

Drive shaft #5, 1/8" x 5/8"

1шт.

8

A27854

SHAFT

- stub, pump

1шт.

9

A27856

GEAR WHEEL

GEAR - pump, w/o key way

1шт.

10

A27855

GEAR WHEEL

GEAR - pump, w/key way

1шт.

11

A10916

RING, SNAP

RING - snap, drive shaft

1шт.

12

A33442

COVER - pump body

1шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

14

75-412

SCREW,Rd, 1/4" x 3/4"

- mach. (1/4" x 3/4" N.C., rd. hd.)

5шт.

15

75-424

SCREW

- mach. (1/4" x 1-1/2" N.C., rd. hd.)

1шт.

16

A22566

PLUNGER

- relief, pump

1шт.

17

A23598

VALVE SPRING

SPRING - plunger

1шт.

18

A27858

NUT

- adj. screw

1шт.

19

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - adj. pump relief

1шт.

20

221-31

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

CONNECTOR ASSY. - oil tube (5/8" tube x 1/2" P.T.)

1шт.

21

222-106

SLEEVE,5/8" Tube

- connector (5/8")

1шт.

22

222-116

TUBE NUT,1"-18

NUT - (For 5/8" O.D. tube)

1шт.

23

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - pump body (1-3/16 x 1-7/16 x 1/8")

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.

25

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

26

A21098

TUBE

- oil, Serial Range: pump-filter

1шт.

27

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY. - (5/8" tube x 1/2" P.T.)

1шт.

28

222-106

SLEEVE,5/8" Tube

- connector (5/8")

1шт.

29

222-116

TUBE NUT,1"-18

NUT - (For 5/8" O.D. tube)

1шт.

30

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

31

A28110

SCREEN ASSY. - oil pump (Float-o-type)

1шт.

35

A23000

CASE

PAN - oil

1шт.

36

A7616

GASKET KIT

- oil pan

1шт.

37

A14280

PLUG

- oil pan drain

1шт.

38

A27927

OIL PAN GASKET SET

- oil pan, drain plug

1шт.

39

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

24шт.

40

92-6

LOCK WASHER,3/8"

24шт.
