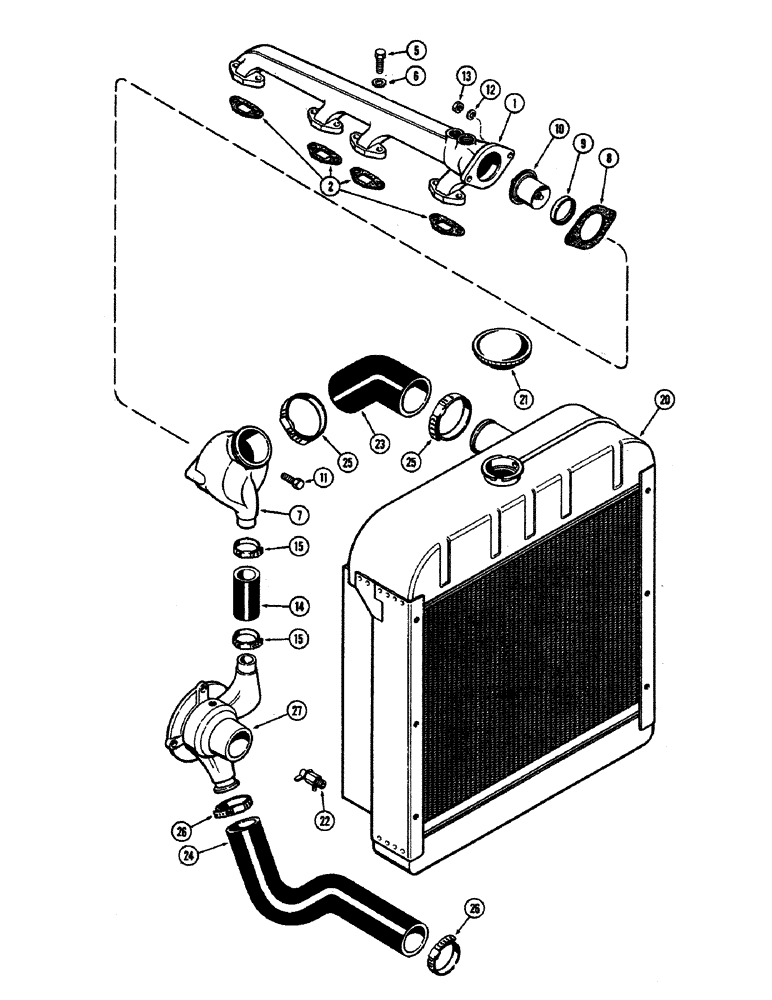

Запчасти Case 680CK (004) - WATER MANIFOLD AND THERMOSTAT HOUSING, RADIATOR

1

A26332

MANIFOLD

- water

1шт.

2

A27905

GASKET

- water manifold

4шт.

5

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

Manifold Hex, 5/16"-18 x 1 1/8", G5

8шт.

6

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

8шт.

7

A21032

HOUSING - thermostat

1шт.

8

A21035

GASKET

- thermostat housing

1шт.

9

A21034

SEAL

SEAL - thermostat

1шт.

10

A21033

THERMOSTAT

ASSY.

1шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

12

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

13

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

2шт.

14

A23110

HOSE,1.25" ID x 3.25", SAE 20R2 Class R

SAE 20R4 Class R Grade 2 - Water by-pass 1.25" ID x 3.25", SAE 20R2 Class R

1шт.

15

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16" to 1-3/4")

2шт.

20

L11240

RADIATOR ASSY.

1шт.

21

A21389

CAP

ASSY. - radiator

1шт.

22

A23655

VALVE

ASSY - drain, radiator

1шт.

23

L11242

RADIATOR HOSE,2.50" ID x 6.10", SAE 20R4 Class SC

- Thermostat to Radiator 2.50" ID x 6.10", SAE 20R4 Class SC

1шт.

24

L11241

RADIATOR HOSE,2.00" ID x 8.10", SAE 20R4 Class SC

- Radiator to Water pump 2.00" ID x 8.10", SAE 20R4 Class SC

1шт.

25

124-262

CLAMP - hose, Serial Range: (2-5/16"-3-1/4")

2шт.

26

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

27

A34009

PUMP

ASSY - water (see figure 6)

1шт.
