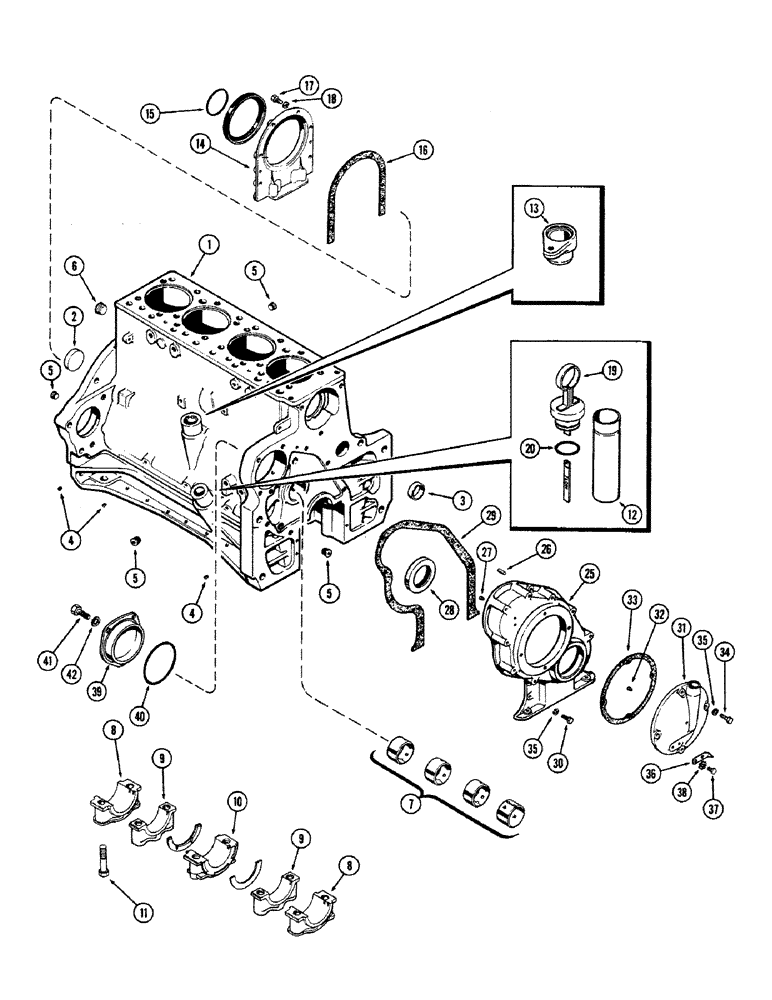

Запчасти Case 680CK (029A) - CYLINDER BLOCK ASSEMBLY, (251) SPARK IGNITION ENGINE, USED PRIOR TO ENGINE SN. 2173890

A40358

BLOCK ASSY. - short (Incl. stripped block, piston assy., connecting rods & brgs., crankshaft & bushing, timing gears, oil pump & push rod lifters)

1шт.

1

A23508

BLOCK ASSY. - stripped

1шт.

2

A24361

PLUG

- camshaft hole (2-3/8" cup type)

1шт.

3

41-1628

PLUG,Cup, 1 3/4", Stainless

- water gallery front (1-49/64" cup type)

1шт.

4

221-41

PLUG

- (1/8" P.T. sltd. hd.)

3шт.

5

221-843

PLUG,Hex Soc, 3/8"-18

- (3/8" P.T., ctsk. hd.)

5шт.

6

221-26

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - (1" P.T., ctsk. hd.)

1шт.

7

A23577

KIT

BUSHING KIT - camshaft

1шт.

8

A24941

CAP

- crankshaft brg., wide

2шт.

9

A24942

CYLINDER END CAP

CAP - crankshaft brg., narrow

2шт.

10

A24943

CAP

- crankshaft brg., thrust

1шт.

11

A27836

SPECIAL BOLT,5/8" - 11 x 3 1/4"

- brg. caps (5/8 x 3-1/4" N.C. spec.)

10шт.

12

A34540

TUBE

SOCKET - oil filler

1шт.

13

A7621

INSERT - distributor support

1шт.

14

A32182

RETAINER

ASSY. - rear oil seal

1шт.

15

A23085

OIL SEAL

- oil (4-3/4 x 5-3/4 x 1/2")

1шт.

16

A32830

GASKET

- rear oil seal retainer

1шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Retainer Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

18

92-6

LOCK WASHER,3/8"

6шт.

19

A34541

DIPSTICK

GAUGE - oil level (dip-stick)

1шт.

20

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - oil level gauge (3/4 x 1 x 1/8")

2шт.

25

A23334

COVER ASSY. - timing gear

1шт.

26

A27840

PIN

- cover locating (5/16 x 3/4")

2шт.

27

A27869

BUTTON - thrust bumper

1шт.

28

A57342

SEAL

- oil, front (2-5/8 x 3-5/8 x 1/2") (Replaces A23433)

1шт.

29

A33018

GASKET

- timing gear cover

1шт.

30

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- cover (3/8 x 2-1/2" N.C. hex.)

5шт.

30

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- (3/8 x 3-3/4" N.C. hex.)

3шт.

30

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

31

A20833

CAP ASSY. - timing gear cover

1шт.

32

A27869

BUTTON - thrust, bumper

1шт.

33

A27867

GASKET

- cap

1шт.

34

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Cap Hex, 3/8"-16 x 1 1/8", G5, Full Thd

3шт.

34

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Cap Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

35

92-6

LOCK WASHER,3/8"

14шт.

36

A28218

POINTER - timing indicator

1шт.

37

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Pointer Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

38

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - (1/4" int./ext. skpf.)

2шт.

39

A7625

COVER - magneto opening

1шт.

40

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - magneto opening cover

1шт.

41

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

42

92-6

LOCK WASHER,3/8"

3шт.
