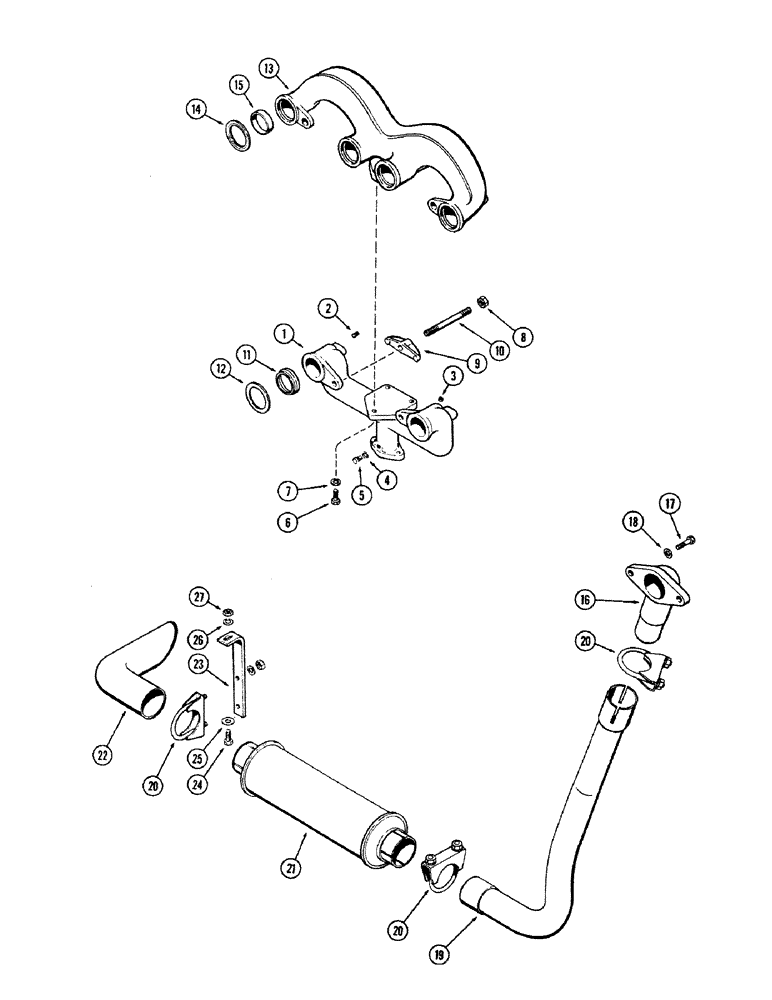

Запчасти Case 680CK (026) - MANIFOLDS AND MUFFLER, (251) SPARK IGNITION ENGINE

1

A18508

MANIFOLD

- intake (Gasoline)

1шт.

2

221-13

PLUG,Sq Hd, 3/8"-18

- pipe (3/8" sq. hd.)

1шт.

3

221-11

PLUG,Sq Hd, 1/8"-27

- (1/8" sq. hd.)

2шт.

4

A20778

GASKET - int. manifold boss

1шт.

5

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

7

92-6

LOCK WASHER,3/8"

3шт.

8

25-117

NUT,7/16"-20, G5

- (7/16" N. F. hex.)

4шт.

9

A24368

CLAMP

- retainer, int. & exh. manifold

4шт.

10

A27911

STUD

- int. & exh. manifold (7/16" N. C. /N. F. x 6")

4шт.

11

A21634

FERRULE

- manifold, intake

2шт.

12

A7363

MANIFOLD GASKET

- manifold, intake

2шт.

13

A20811

MANIFOLD - exhaust

1шт.

14

A27909

GASKET

- manifold, exhaust

4шт.

15

A21635

FERRULE

- manifold, exhaust

4шт.

16

A17488

ELBOW

- manifold, exhaust

1шт.

17

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

18

92-8

LOCK WASHER,1/2"

2шт.

19

D134604

PIPE

- exhaust (Replaces L10797)(Replaces L12272)

1шт.

20

A13240

CLAMP,2-5/8" ID

ASSY. - exhaust pipe

3шт.

21

A15163

MUFFLER

- exhaust

1шт.

22

L10796

CABLE EXTENSION

EXTENSION - muffler

1шт.

REF#22 REPLACED BY L13824 & 74081 8/30/96

1шт.

23

L12273

STRAP - muffler mtg. (Replaces L10795)

1шт.

24

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

25

195-21

WASHER,5/16"

- (11/32 x 11/16 x 1/16")

1шт.

26

92-5

LOCK WASHER,5/16"

1шт.

27

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N. C. hex.)

1шт.
